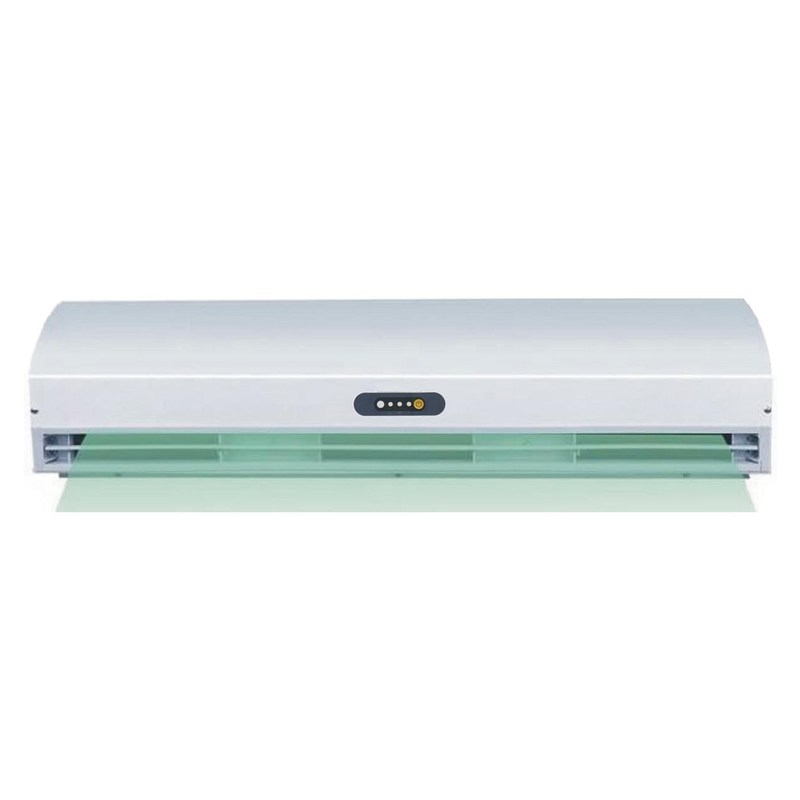

1200mm Vertical Intake Centrifugal Air Curtain

WINTECO air curtain is a product used to prevent air or contaminants from moving from one open space to another. Air curtain can create a continuous broad stream of air circulated across a doorway of a conditioned space. It reduces penetration of insects and unconditioned air into a conditioned space by forcing an air stream over the entire entrance. The air stream layer moves with a velocity and angle such that any air that tries to penetrate the curtain is entrained, so it is widely used in commercial and industrial places where doors are required to stay open such as hypermarket, shopping malls, shops, cold rooms, loading docks…
WINTECO cross-flow air curtain is with compact design, with one motor in the middle and two fan wheels at side. the air speed can reach 12m/s, and installation height up to 3 meters, suitable for most installation occasions.
WINTECO centrifugal air curtain is with stable high speed motors, installed with at least two motors which creates very high air speed up to 16m/s. it can be installed in any occasions even commercial and industrial places which require high installation height and strong air.
WINTECO heated air curtain is commonly used when supplemental heat is needed for a space, and to reduce the wind chill factor across the opening in colder climates. it is widely used in commercial and industrial places.
WINTECO industrial air curtain is with 28m/s and 30m/s super high speed, which can be installed in industrial and commercial place that require very high air speed to prevent air circulation.

SPECIFICATIONS:

1200mm horizontal intake centrifugal air curtain
Dimension: 1200*235*207MM
Power Supply: 380V 50-60Hz
Capacity: 400W
Air flow: 1680-2150M3/H
Air speed: 16/13/9M/S
Noise level: 52-58Db
G.W./N.W.: 20/18KGS
Packing: 1260*260*285MM
Control mode: remote and button control

FEATURES:

The stainless cover is made from high strength powder-coated metal, working well in various environment.
The air wheel is made of high-strength fiberglass plastic material,very strong and durable and stable to run.
The high performance pure-copper motors can work 5000 hours continuously without any defects, it creates high speed air flow, to make the air curtain as an invisible door.

Thank you for your support to WINTECO products, please contact us freely for any more information.
