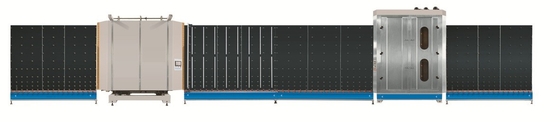

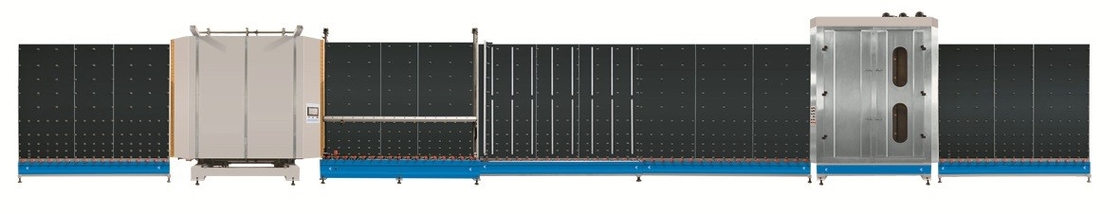

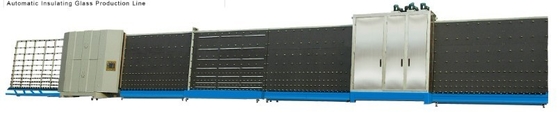

Automatic Vertical Insulating Glass Production Line SBT-LB2510W

Automatic Vertical Insulating Glass Production Line SBT-LB2510W

Equipment Feature:

Automatically distinguish the coating side of coated glass and Low-E glass.

PLC control system with Touch Screen Operation.

Machine work and fault dynamic display.

Outside assembly lines can produce standard Double Glazing IG &Triple Glazing IG.

Lines are available for both of inside&outside panel press,which can produce Stepped IG,Standard Double Glazing IG&Triple Glazing IG(Optional).

Designed for curtain wall glass,double glazing IG&Triple Glazing IG.

IG Press design-gear and chain synchronous device driven by hydraulic station.

Frequency control designed for glass transmission.

Output:800~1000 units per single shift 8 hours(Double Glazing IG,Size 1M).

Panel press openable,max open size:500mm,easy for maintainance

Technical Parameters:

Power 27.25kW

Max Glass Size:2500x3000mm

Min Glass Size:200x450mm

Pane Glass Thickness 3~15mm

Max I.G Units Thickness 12~50mm

Glass Washing Speed 0~8m/min

Working Speed 0~45m/min

Air Soure/Pressure 0.8m³/min(1Mpa)

Water Electrical Conductivity ≤50μs/cm

Oversize 22750x2300x3400mm
