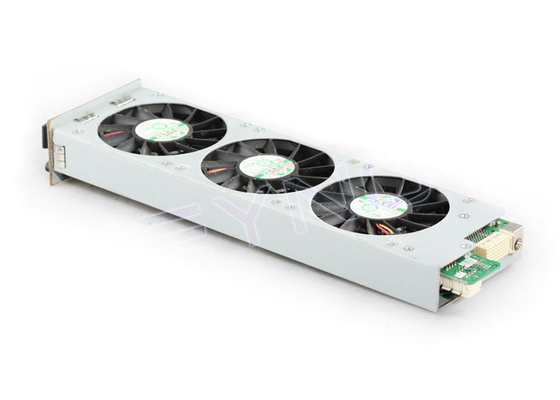

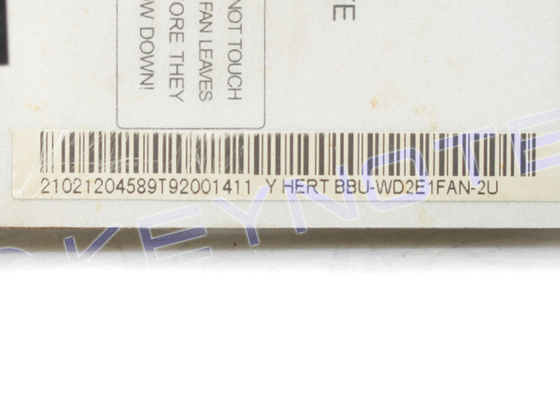

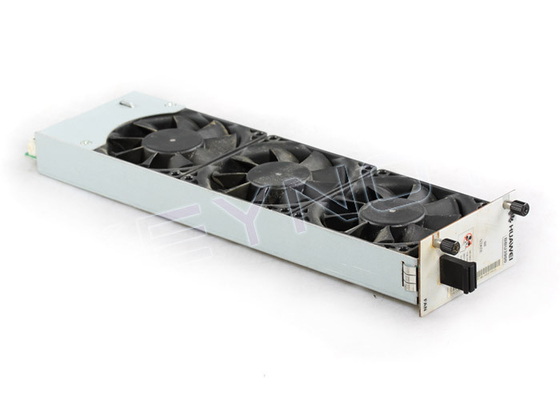

Mobile Phone 3G Base Station Huawei BTS3900 BBU3900 FAN 21021204589T92001411

Large Image : Mobile Phone 3G Base Station Huawei BTS3900 BBU3900 FAN 21021204589T92001411 Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE
Model Number:	BBU3900 FAN

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Please Contact us
Packaging Details:	Carton/Standard packing
Delivery Time:	15 days after payment confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	Please Contact us

Contact Now

Detailed Product Description

High Light:

huawei bts 3900

indoor base station

Mobile Phone 3G Base Station Huawei BTS3900 BBU3900 FAN 21021204589T92001411

[Product Description]

BBU3900 FAN

Fan box module function is monitor cabinet air intakes and fan box temperature, control fan speed , in order to realize the cabinet ventilation cooling.

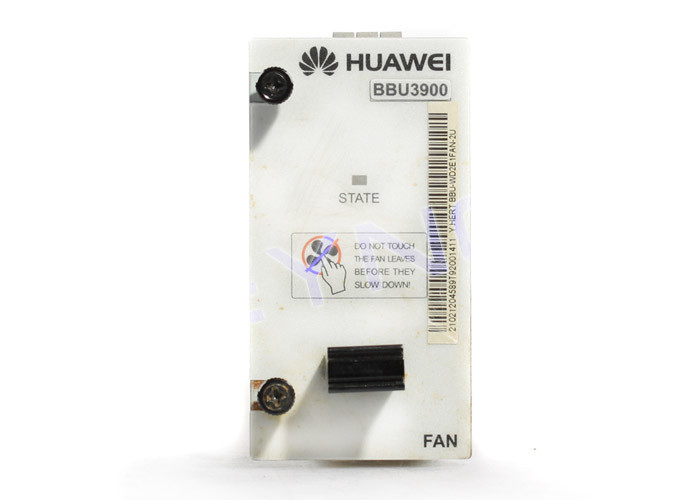

FAN Panel Port

Interface Type	Interface screen printing	Connector Type	Instructions
Power Interface	“-48V”	3V3 Power Connector	Used for - 48 v DC power supply Access.
The temperature sensor interface	“SENSOR”	RJ45 Connector	Used to connect the external temperature sensor.
Communication interface	“COM OUT”	RJ45 connector	Used to grade the FAN at a lower level modules.
Communication interface	“COM IN”	RJ45 connector	Used to communicate with superior single board module.

The module light

Indicator Light	Color	State	Instructions
RUN	Green	Fast Flash (0.125 s on, 0.125 s off)	mean module and BBU communication has not been established, module running normally.
		Slow flash (1 s on, 1 s off )	Mean module and BBU communication has been established, module running normally.
		Often off	No power input, or the module failure.
ALM	Red	Slow flash (1s on,1s off)	Module has alarm.
ALM	Red	Often off	Module has not alarm.

GSM wireless base station for Huawei BTS3900 BBU3900 FAN 21021204589T92001411 in stock.

Huawei BTS3900 is an indoor macro base station, we have all version in this store.

If you need more information, pls directly contact us through online tool or other way you prefer to.

[Product code]

BTS3900	2113169	Cabinet
DCDU-03B	2120472
DRFU	2316913	DRFU 900MHz PGSM
	2316361	DRFU 900MHz EGSM
	2315743	DRFU 1800MHz
	2316905	Double Radio and Filter Unit
GRFU 900C	2318473	900C
GRFU V1	2316962	GRFU 1900MHz A
GRFU V1	2316963	GRFU 1900MHz B
GRFU V2	2318472	GRFU V2 900MHz PGSM
	2318474	GRFU V2 900MHz EGSM
	2318546	GRFU V2 1800MHz A
	2318547	GRFU V2 1800MHz B
GRFU V2a	02310CRT	V2a-GSM Multiple Carriers Transceiver Unit-900M RX885-910MHz/
	02310CRT	TX930-955MHz
	02310CRV	V2a-GSM Multiple Carriers Transceiver Unit-1800M RX1710-1755MHz/
		TX1805-1850MHz
		GM5M18GRFU21
MRFU 900C	2318470	900C
MRFU V1	2316975	RF Unit for Multi-Mode 1900MHz B
MRFU V1	2316976	RF Unit for Multi-Mode 1900MHz A
MRFU V2	2318425	RF Unit V2 for Multi-Mode 900MHz PGSM
	2318471	RF Unit V2 for Multi-Mode 900MHz EGSM
	2318544	RF Unit V2 for Multi-Mode 1800MHz A
	2318545	RF Unit V2 for Multi-Mode 1800MHz B
	02310CES	RF Unit V2 for Multi-Mode 850MHz
MRFU V2a	02310CRS	V2a-Multi-Mode Transceiver Unit-900M RX885-910MHz/TX930-955MHz
	02310CRU	V2a-Multi-Mode Transceiver Unit-1800M RX1710-1755MHz/
	02310CRU	TX1805-1850MHz
MRFU V3	02310EJB	MRFU,WD5MJFUA830,V3,Multi-Mode Transceiver Unit
MRFU V3	02310EJB	(RX1710-1785MHz/TX1805-1880MHz,-48VDC,5G,1T2R,9U)
MRFUd	02310CEU	MRFUd,WD5MJFUBG30,V3,Multi-Mode Transceiver Unit
	02310CEU	(RX1710-1785MHz/TX1805-1880MHz,-48VDC,5G,2T2R,9U)
	02310CEW	MRFUd for Multi-Mode 900MHz EGSM
	02310CMD	MRFUd,WD5MJFUBG8B,V3,Multi-Mode Transceiver Unit
	02310CMD	(RX890-915MHz/TX935-960MHz,-48VDC,5G,2T2R,9U)
MRFUe	02310CEV	MRFUe for Multi-Mode 1800MHz
	02310CEX	Function Module,MRFUe,WD5MJFUAD8C, Multi-Mode Transceiver Unit
	02310CEX	(RX885-910MHz/ TX930-955MHz,-48VDC,5G,1T2R,9U)
	02310EJA	MRFUe,WD5MJFUAD3A,V3,Multi-Mode Transceiver Unit
	02310EJA	(RX1710-1755MHz/TX1805-1850MHz,-48VDC,5G,1T2R,9U)
CRFU	2317425	Multi-Carrier Transceiver Unit(DHT 80W,AWS Band,RX1710-1755/
	2317425	TX2110-2155MHz)
	2318644	Multi-Carrier Transceiver Unit(EDHT 80W,Band0,RX824-843 5/
	2318644	TX869-888 5MHz)
	2318171	Multi-Carrier Transceiver Unit(EDHT 80W,INF,RX1890-1915/
	2318171	TX1970-1995MHz)
	2318649	Multi Carrier Transceiver Unit (CRFU AWS,EDHT 80W,INF, RX1710-1755/TX2110-2155MHz)
	2318737	Multi-Carrier Transceiver Unit(EDHT 80W,Band0,RX824-835/TX869-880MHz)
	02310CNH	Multi-Carrier Transceiver Unit(EDHT 80W,INF,RX1850-1915/TX1930-1995MHz)
	2318016	Multi-Carrier Transceiver Unit(DHT 100W,INF,RX824-835/TX869-880MHz)
	2318693	Multi-Carrier Transceiver Unit(E-DHT CRFU2 1G,800M&2 1G COMBINER,TD-Killer)
CRFUd	02310FXF	Multi-Mode Transceiver Unit(RX1710-1755MHz/TX2110-2155MHz,-48VDC,5G,2T2R,9U)
WRFU	2316677	RF Unit for WCDMA.850MHz (80W)
	2319231	RF Unit for WCDMA.2100MHz (80W)
	2316890	RF Unit for WCDMA.2100 MHz (40W)
WRFUd	02310CET	WRFUd for WCDMA.2100MHz (2*60W)

[Packaging & Shipping]

1. The single board packing with normal cartons.And within 15 days we deliver the goods to you when we receive the deposite.

2. The whole cabinet packing with free fumigation wooden Box.Depend on the quantity you need and we receive the deposite then we will deliver in the short time.

[Our Services]

1. Customer Bill of lading date calculation. Hardware Warranty for 180 days.
2. Warranty terms with half a year later. If the equipment gets any problem, we provide service at 20% maintenance fee.
3. We promise that after the arrival of the goods, the appearance and function 100 percent intact.
4. We promise repair and replace the faulty plates, feedback cycle for 24 hours. Maintenance cycle within five working days.
