Z4 H355 406KW / 450KW Industrial DC Motor High Efficiency Electric Motor IEC34-1 / DIN57530

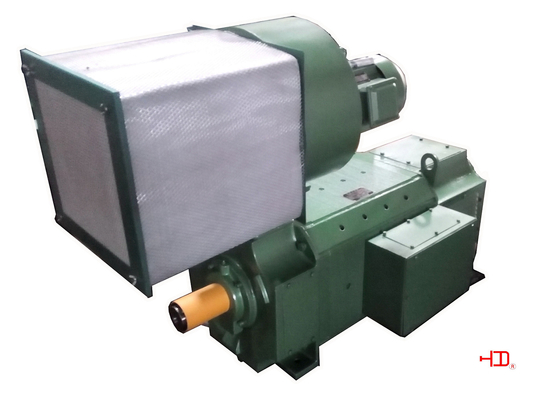

Large Image : Z4 H355 406KW / 450KW Industrial DC Motor High Efficiency Electric Motor IEC34-1 / DIN57530 Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	Z4 H355

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	30 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	5,000pcs per month

Contact Now

Detailed Product Description

High Light:

three phase dc motor

low voltage dc motor

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Standard Feature:
Standard		IEC34-1 / DIN57530
Phase		Three-phase
Frame Size		H355 cast iron frame
Protect Feature		Totally Enclosed
Output Range		166~450KW
Voltage		160V,440V or on request
Frequency		50HZ
Protection Class		IP21S
Insulation		F/B
Mounting		IMB3 /IMB35
Cooling		IC06,IC17,IC37
Duty		S1
Thermometry		Optional
Certification		CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Requirement for cooling air volume , air pressure and fan motor power

Frame Size	Air Volume	Static Pressure	Motor output
Frame Size	m³/h	Pa	KW
Z4-355	5200	1600	5.5

The fan motors are all three phase ,two pole ,380V

Technical Specification :

The data below is include excitation loss, excluding blower loss

Motor Type	Rated Power	Rated Speed		Magnetic speed	Arm.Curr.	Excitation Power	armature circuit resistance	Armature circuit inductance	Field Inductance	Efficiency	Moment of inertia	Weight

	P_N	400V	440V	N_F	In	P_F	R	L_A	L_F	η	GD²
	KW	r/min		r/min	A	W	Ω(20℃)	mH	H	%	Kgm2	kg
Z4-355-12	406	900		1500	1094	4700	0.01259	0.36	37.6	91.8	42	2890
	450		1000							92.8
	321	680			877		0.02087	0.59	28.1	90.4
	355		750							91.2
Z4-355-11	253	540			697		0.02952	0.91	22	89.2
	280		600							90.2
	180	450			506		0.0502	1.5	8.91	87.6
	200		500							88.9
	166	360		1200	478		0.066	1.8	22.4	84.9
	185		400							85.9
Z4-355-22	361	680		1600	978	5600	0.01583	0.44	15.6	90.8	46	3170
	400		750							91.7
	284	540		1500	783		0.02676	0.81	34.7	89.5
	315		600							90.5
	225	450		1600	624		0.03462	1	20.5	88.4
	250		500							89.5
Z4-355-21	180	360		1200	511		0.05642	1.6	35.5	96.3
	200		400							87.5
Z4-355-32	406	680		1100	1098	6000	0.01362	0.39	19	91.3	52	3490
	450		750							92.1
	320	540		1600	877		0.02153	0.7	24.3	89.9
	355		600							91
	284	450		1500	789		0.0293	0.91	18.5	88.3
	315		500							89.5
Z4-355-31	197	360		1200	559		0.04957	1.3	34.6	86.6
	220		400							88.4
Z4-355-42	361	540		1300	985	6500	0.01836	0.64	29.6	90.5	60	3840
	400		600							91.2
	320	450		1200	882		0.02361	0.76	17.7	88.9
	355		500							89.2
	225	360			627		0.0358	1.2	17.7	87.5
	250		400							88.8

Mounting and Overall Dimensions(mm)

Mounting Type :IMB3/IM1001

Z4 H355 406KW / 450KW Industrial DC Motor High Efficiency Electric Motor IEC34-1 / DIN57530 0

Frame Size	Mounting Dimensions (mm)													Overall Dimensions (mm)
Frame Size	A	B	C	D	E	F	GA	DA	EA	FA	GC	H	K	AB	AC	AD	HD	h1	L	L1
Z4-355-081	610	818	254	110	210	28	116	110	210	28	116	355	28	700	734	701	1301	30	1539	1860
Z4-355-082		908																	1629	1950
Z4-355-091		888																	1609	1930
Z4-355-092		978																	1699	2020
Z4-355-11		968																	1689	2010
Z4-355-12		1058																	1779	2100
Z4-355-21		1058																	1779	2100
Z4-355-22		1148																	1869	2190
Z4-355-31		1158																	1879	2200
Z4-355-32		1248																	1969	2290
Z4-355-41		1268																	1989	2310
Z4-355-42		1358																	2079	2400

Description:

Mounting and Overall type of Z4 DC motor are comply with IEC72 Standard, except the axial distance between the mounting holes( Dimension “B”)

This series motors have polygon structure, so they have high space efficient. Their stator yoke which is lamination and use rectifier power supply can withstand pulsating current and rapid change of current .

Due to its accurate location of magnetic pole, it is convenient to change the direction

Thanks to its small size,good performance, light weight , high efficiency and reliability , our Z4 DC motors can compete with international advanced level.

Supply power:

1, The power supply of Armature and Field circuits can be from Static rectifier power supply or from DC generator.

2,Under constant torque, decrease armature voltage to adjust speed;Under constant power, decrease excitation voltage to adjust speed.

3, Separated excitation is the basic excitation type. Nominal excitation voltage is180V, other voltages are also acceptable on your request.

4,For frame Z4-355, compensating windings are provided.

Z4 H355 406KW / 450KW Industrial DC Motor High Efficiency Electric Motor IEC34-1 / DIN57530 1

Applications:

Z4 DC motors are our latest product. They are widely used as drive source for various machinery, such as Metallurgical industry, Metal cutting machine, Paper ,Printing, Textile, Dyeing, Cement, Plastic extrusion machinery and so on.
