Ceiling Cassette Commercial Cool Air Conditioner
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Energy Saving, High Efficiency | Power Source: | Electric |
|---|---|---|---|
| Voltage: | 230V 60Hz | Application: | Shopping Mall, Office |
| Capacity: | 24000BTU | Compressor Brand: | Sanyo |
| Compressor Type: | Scroll | Function: | Cooling, Heating |
| Product Name: | Commercial Cool Air Conditioner | Type: | Ceiling Floor |
| Highlight: | commercial air conditioners,wall mount air conditioner |
||
Ceiling Cassette 60000 Btu Commercial Cool Air Conditioner for Shopping Mall , High Efficiency
Commercial type Air Conditioner Ceiling and Floor
- New Design panel
- Power supply: 230V,60Hz
- Gas: R410A
- Self-diagnosis and auto-protection function
- Air flows in four directions by adjusting air duct louvers
- .High cooling / heating rate, energy-saving
- Low temperature start, electricity heating
- LED motion display, easy to check its run
- Sleeping mode, automatic restart
- Compressor: Sanyo
- 5 years warranty for compressor, and 3 years for complete unit
- Offer 1% free spare part of total amount
Quick Detail:
- Cooling/Heating: cooling only; cooling & heating
- Type: Ceiling floor
- Power Source: electric
- Capacity:24000BTU
- Voltage: 220V60HZ
- Power: 2TON
- Certificate: Sencamer,INMETXO
- Application: House or residence , public place including super market , shopping mall
Specifications:

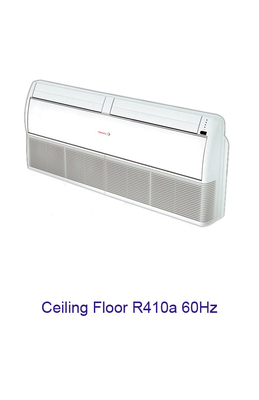

INDOOR UNIT
|
Model |
YUE-60CRN1 |
||
|
Code |
220044701690 |
||
|
Power supply |
V-ph-Hz |
220-1-60 |
|
|
Cooling |
Capacity |
Btu/h |
60000 |
|
Input |
W |
6869 |
|
|
EER |
W/W |
2.56 |
|
|
Heating |
Capacity |
Btu/h |
/ |
|
Input |
W |
/ |
|
|
COP |
W/W |
/ |
|
|
Indoor fan motor |
Model |
|
YSK85-4B |
|
Qty |
|
2 |
|
|
Input |
W |
174/157/144 |
|
|
Capacitor |
uF |
2.5UF/450V |
|
|
Speed(Hi/Med/Lo) |
r/min |
1400/1220/1090 |
|
|
Indoor coil |
Number of rows |
|
3 |
|
Tube pitch(a)x row pitch(b) |
mm |
21x13.37 |
|
|
Fin spacing |
mm |
1.3 |
|
|
Fin type |
|
Hydrophilic aluminium |
|
|
Tube outside dia.and type |
mm |
Φ7,inner grooved tube |
|
|
Coil length x height x width |
mm |
1300x294x40.11 |
|
|
Number of circuits |
|
8 |
|
|
Indoor air flow(Hi/Med/Lo) |
m3/h |
2300/1900/1700 |
|
|
Indoor noise level (sound pressure)(Hi/Med/Lo) |
dB(A) |
56/52/48 |
|
|
Throttle type |
|
Throttle valve |
|
|
Indoor unit |
Dimension (WxDxH) |
mm |
1650x675x235 |
|
Packing (WxDxH) |
mm |
1725x755x313 |
|
|
Net/Gross weight |
kg |
39/45 |
|
|
Design pressure |
MPa |
4.2/1.5 |
|
|
Drainage water pipe diameter |
mm |
ODΦ25 |
|
|
Refrigerant piping |
Liquid side/Gas side |
mm(inch) |
Φ9.52/Φ19(3/8"/3/4") |
|
Controller |
|
RG51Q1/BGE |
|
|
Operation temperature |
Cooling |
℃ |
17~32 |
|
Heating |
℃ |
/ |
|

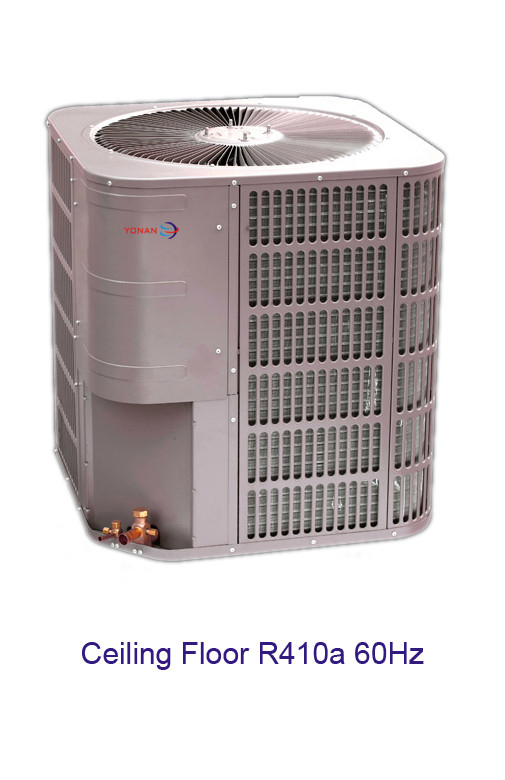

OUTDOOR UNIT
|
Sale Model |
YOV-60CN1-N |
||
|
Power supply |
V-Ph-Hz |
220~1-60 |
|
|
Max. input consumption |
W |
7625 |
|
|
Max. current |
A |
34.6 |
|
|
Compressor |
Model |
|
C-SBP160H16A |
|
Type |
|
Scroll |
|
|
Brand |
|
Sanyo |
|
|
Capacity |
Btu/h |
53910 |
|
|
Input |
W |
5650 |
|
|
Rated current(RLA) |
A |
25.8 |
|
|
Locked rotor Amp(LRA) |
A |
139 |
|
|
Thermal protector position |
|
Internal |
|
|
Capacitor |
uF |
60uF/450V |
|
|
Refrigerant oil |
ml |
1400 |
|
|
Outdoor fan motor |
Model |
|
YDK230-6F-1(B) |
|
Qty |
|
1 |
|
|
Input |
W |
310 |
|
|
Capacitor |
uF |
12μF/450V |
|
|
Speed |
r/min |
1095 |
|
|
Outdoor coil |
Number of rows |
|
1 |
|
Tube pitch(a)x row pitch(b) |
mm |
21x13.37 |
|
|
Fin spacing |
mm |
1.3 |
|
|
Fin type |
|
Unhydrophilic aluminium |
|
|
Tube outside dia.and type |
mm |
Ф7,inner grooved tube |
|
|
Coil length x height x width |
mm |
2028x798x13.37 |
|
|
Number of circuits |
|
5 |
|
|
Outdoor air flow |
m3/h |
7400 |
|
|
Outdoor noise level (sound pressure) |
dB(A) |
64 |
|
|
Throttle type |
|
/ |
|
|
Outdoor unit |
Dimension(WxDxH) |
mm |
710x710x843 |
|
Packing (WxDxH) |
mm |
738x738x872 |
|
|
Net/Gross weight |
kg |
80/85 |
|
|
Refrigerant |
Type |
|
R410A |
|
Charged volume |
kg |
2.2 |
|
|
Design pressure |
MPa |
4.2/1.5 |
|
|
Refrigerant piping |
Liquid side/ Gas side |
mm |
Φ9.52/Φ19(3/8"/3/4") |
|
Max. refrigerant pipe length |
m |
50 |
|
|
Max. difference in level |
m |
25 |
|
|
Ambient temperature |
Cooling |
℃ |
18~43 |
|
Heating |
℃ |
|
|
Applications:
House or residence, office, public place including super market, shopping mall ....
Competitive Advantage:
high efficiency,
high quality,
SANYO Compressor,
low ambient Self-diagnosis and auto-protection function
