Product Details:
Payment & Shipping Terms:
|
--
Service:
1.------ The free consultation and provides the product material, helps you to carry on the design proposal to the use environment, selects the most appropriate type and installs the plan.
2.------ The quality three packages, the complete machine maintains for a year, the product because of the quality question, in three months the application replaces newly machine.
3.------ The post-sale track service, the telephone pays a return visit, to users any expectation and the request, we all as necessary provides the service, lets you not have the extra worries.
If has the engineering data change, not separate informs even slight.
-

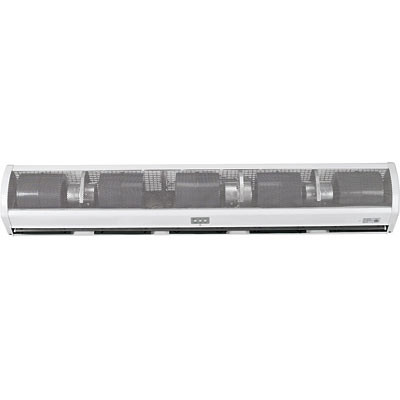

electric heating air curtains
-
-
Features
1,Full metal housing with durable powder spray coating.
2,Centrifugal turbine provides extra high air volume.
3,Convenient remote control offers ease of use.
4.- Delayed cut off safety feature allows cool down prior to full shut down
5.- Efficient and safe "PTC" heating material
-
Model |
- Voltage - (V) |
- Frequency - (Hz) |
Diameter Of wheel (mm) |
Max input Power |
- Air volume - (m³/h) |
- Air voloclty (m/s) |
- Noise - (dB) |
Installation height(m) |
- Net weight (kg) |
- Dimension - (mm) |
||||
motor (w) |
heater (w) |
- |
- |
- |
- |
- |
||||||||
RM-4509G-D/Y |
220 |
50 |
120 |
325 |
12000 |
>1020 |
14 |
≤55 |
3.5 |
30 |
- |
900×420×290 |
||
RM-4512G-D/Y |
220 |
50 |
120 |
420 |
16000 |
>1360 |
14 |
≤56 |
3.5 |
39 |
- |
1260×420×290 |
||
RM-4515G-D/Y |
220 |
50 |
120 |
420 |
20000 |
>1700 |
14 |
≤58 |
3.5 |
49 |
- |
1560×420×290 |
