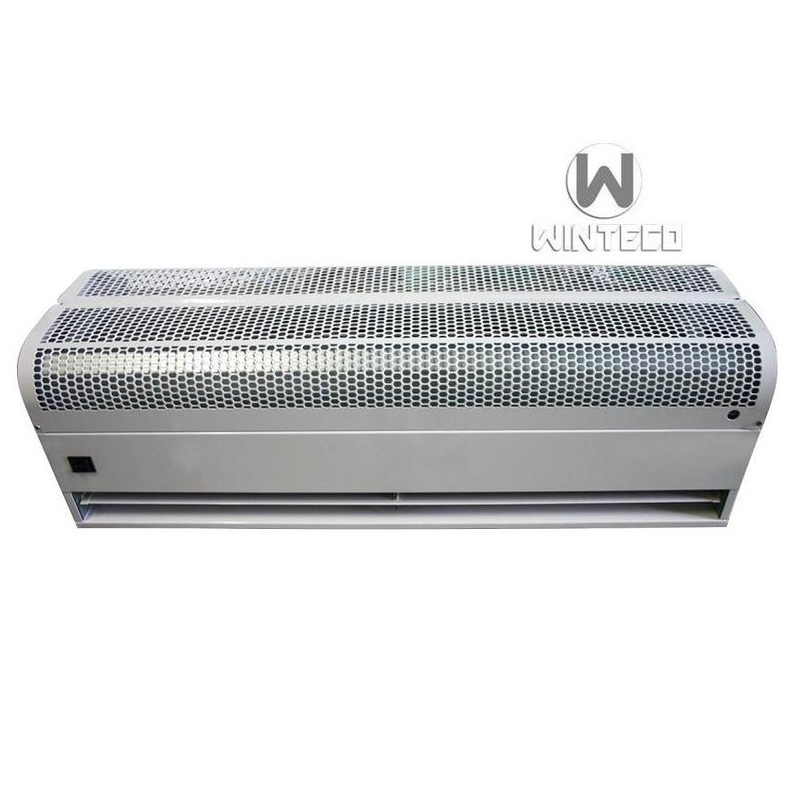

High Efficiency Water Heated Air Curtain
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | Door Air Curtain,Hot Air Curtain,Heating Air Curtain |
||
|---|---|---|---|
Water Heated Air Curtain Features:
1. Water source hot air curtain, can be used both in winter and in summer
2. Safety water heating coil with high heat dispersion
3. Casing made from poder-coated metal, with button control.
4. Built-in condensate water cup, alternating warm and cold wind for winter and summer use.
5. Double sided water inflow points allows convertibility for installation in different locations.
6. Available sizes: 900mm, 1200mm, 1500mm
| Model | WWH-09 | WWH-12 | WWH-15 | ||
| Power (V/Hz) | 220/50-60 | 220/50-60 | 220/50-60 | ||
| Input power (W) | 160 | 200 | 230 | ||
| Air speed (m/s) | Hi | 11 | 11 | 11 | |
| Lo | 9 | 9 | 9 | ||
| Air volume (m 3 /h) | Hi | 1450 | 1930 | 2420 | |
| Lo | 1050 | 1400 | 1750 | ||
| Noise level (db) | < 55 | < 57 | < 59 | ||
| Net weight (kg) | 20 | 25 | 32 | ||
| Temperature of water 100-65° C | Water flow speed (m/s) | 0.49 | 0.65 | 0.82 | |
| Water volume (kg/h) | 878 | 1170 | 1460 | ||
| Water resistance (Pa) | 2036 | 2715 | 3390 | ||
| Temperature of outlet air (° C) | 53 | 53 | 53 | ||
| Heat dispersing volume (KW) | 20 | 28 | 36 | ||
| Temperature of water 90-60° C | Water flow speed (m/s) | 0.39 | 0.52 | 0.65 | |
| Water volume (kg/h) | 698 | 930 | 1160 | ||
| Water resistance (Pa) | 1620 | 2160 | 2700 | ||
| Temperature of outlet air (° C) | 49 | 49 | 49 | ||
| Heat dispersing volume (KW) | 16 | 21 | 27 | ||
| Temperature of water 85-55° C | Water flow speed (m/s) | 0.45 | 0.6 | 0.75 | |
| Water volume (kg/h) | 805 | 1070 | 1330 | ||
| Water resistance (Pa) | 1870 | 2500 | 3115 | ||
| Temperature of outlet air (° C) | 47 | 47 | 47 | ||
| Heat dispersing volume (KW) | 13 | 17 | 21 | ||
| SIZE(mm) | 900*333*280 | 1200*333*280 | 1500*333*280 | ||
