Energy Saving Recessed Ceiling Wind 36 Inch Air Curtain for Doors
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Ceiling Wind Air Curtain | Application: | For Door, Entryway |
|---|---|---|---|
| Length: | 36inch, 40inch, 48inch, 60inch, 72inch | Color: | Silver (stainless Steel) |
| Air Speed: | 13-16m/s, 16-20m/s | Air Type: | Single Cooling, Has At Least 2 Motors |
| Supplied: | 220v-50/60Hz | ||
| High Light: | air curtains for doors,air curtains for restaurants |
||
Ceiling Wind Air Curtain
Specifications:
|
Model |
Size (mm) |
Volt./ Freq. |
Input power(W) |
Air flow (m3/h) |
Air speed (m/s) |
Noise (dB) |
N.W(kg) |
|||
|
Hi |
Lo |
Hi |
Lo |
Hi |
Lo |
|||||
|
FM-3509CS |
900x235X320 |
220v/50Hz |
230 |
200 |
1100 |
900 |
13-16 |
52 |
49 |
17 |
|
FM-3510CS |
1000x235X320 |
250 |
220 |
1200 |
1000 |
52 |
49 |
19 |
||
|
FM-3512CS |
1200x235X320 |
290 |
260 |
1500 |
1200 |
53 |
50 |
22 |
||
|
FM-3515CS |
1500x235X320 |
380 |
350 |
1900 |
1500 |
55 |
52 |
27 |
||
|
FM-4009CS |
900x235X320 |
220v/50Hz |
300 |
270 |
1400 |
1000 |
16-20 |
57 |
54 |
17 |
|
FM-4010CS |
1000x235X320 |
320 |
290 |
1400 |
1000 |
57 |
54 |
18 |
||
|
FM-4012CS |
1200x235X320 |
400 |
370 |
1900 |
1500 |
58 |
55 |
22 |
||
|
FM-4015CS |
1500x235X320 |
500 |
470 |
2300 |
1900 |
61 |
58 |
27 |
||
Feature:
1. The bottom air-inlet and air-outlet designed for our ceiling air curtain makes it suitable for installation in
the ceiling.
2. The stainless steel design of the outer casing is easy to clean & has high performance fire protection.
3. Adopting high-performance motor, safe and reliable; Centrifugal turbine creates higher air velocity;
4. Adopting updated remote control with high and low speeds operation;
5. Installation height: 3-4m

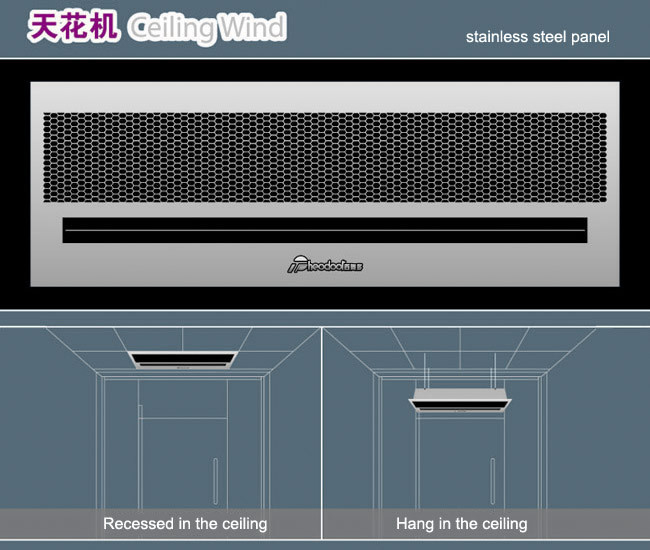

Stainless Steel Air Curtain:
Recessed in the ceiling designed, suitable for simple glass door and the side without enough space and
special environment.
Stainless steel covers design, high quality performance.
Available size: 900mm, 1,000mm, 1,200mm, 1,500mm
