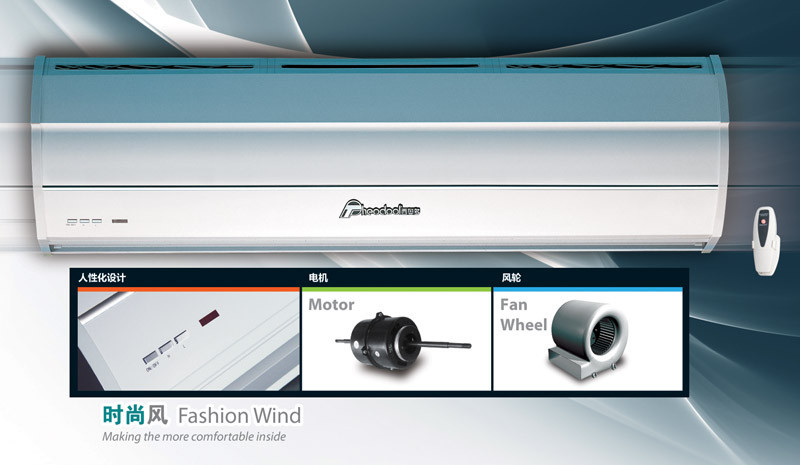

Fashional Theodoor Air Curtain 200cm Length , Commercial Air Curtain Cooler

large.img.alt
small.img.alt

Large Image :  Fashional Theodoor Air Curtain 200cm Length , Commercial Air Curtain Cooler Get Best Price

Product Details:
Place of Origin: China
Brand Name: Theodoor
Certification: ISO 9001, ISO14001, CE, ROHS
Model Number: FM-35**-L/Y
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: negotiable
Packaging Details: Corrugated carton
Delivery Time: 25 working days
Supply Ability: 10,000pcs per month
Detailed Product Description
Product Name: Fashion Wind Air Curtain Application: For Door, Entryway
Length: 90cm, 120cm, 150cm, 180cm, 200cm Color: White, Silver, Red
Air Speed: 13-16m/s, 16-20m/s Air Type: Single Cooling, Has At Least 2 Motors
Supplied: 120v- 50/60Hz Or 220v-50/60Hz Standard: CE, UL, SASO
High Light:

air curtains for doors

,

air curtains for restaurants



Fashion Wind Air Curtain



Specifications:


Model

Size
(mm)

Volt./ Freq.

Input power(W)

Air flow
(m3/h)

Air speed
(m/s)

Noise
(dB)

N.W (kg)

Hi

Lo

Hi

Lo

Hi

Lo

FM-3509-L/Y

900x215x230

220v/50Hz

160

130

750

600

13-16

50

47

10

FM-3510-L/Y

1000x215x230

230

200

1100

900

52

49

13

FM-3512-L/Y

1200x215x230

250

220

1200

1000

52

49

13.5

FM-3515-L/Y

1500x215x230

290

260

1500

1200

53

50

15.5

FM-3518-L/Y

1800x215x230

380

350

1900

1500

55

52

20

FM-3520-L/Y

2000x215x230

450

420

2280

1800

57

55

23.5

FM-4009-L/Y

900x215x230

220v/50Hz

470

440

2520

2100

16-20

58

56

27

FM-4010-L/Y

1000x215x230

300

270

1400

1000

57

54

13

FM-4012-L/Y

1200x215x230

320

290

1550

1100

57

54

13.5

FM-4015-L/Y

1500x215x230

400

370

1900

1500

58

55

15.5

FM-4018-L/Y

1800x215x230

500

470

2300

1900

61

58

20

FM-4020-L/Y

2000x215x230

600

570

2850

2250

63

61

23.5






Feature:

Fashion design with aluminum body, won’t be rusty and discoloration;
The body is without visible screw, elegant appearance;
Adopting high-performance motor, safe and reliable; Centrifugal turbine creates higher air velocity;
Adopting updated remote control with high and low speeds operation;
Suitable for installation in luxury hotel, supermarket chains, large stadiums and airport terminals and other
entrances of high-grade places etc;
Installation height: 3-4m



Fashion air curtain with CE, ROHS and UL approved:


1) Remote control
2) Two speeds
3) Aluminum cover
4) Centrifugal type airflow
5) Adopting optimized electrical machinery, it operates reliably and runs safely.



Applications:


Theodoor Air curtain is installed above the entryway of store, restaurant, hotel…etc. It can effectively
isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location
with air-conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air
Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable
 indoor climate is maintained.

Commercial use

Supermarket, shopping malls, department store, small store, hotels, restaurants, hospital,
schools; Movie theaters, fitness halls, clubs, bars, cafes, barbershop, waiting room,
subway, commercial building, museum entrance and more.

Industrial use

Factory, workshop, warehouse, spinning mill, frozen goods factory, paint factory, large
kitchen…etc.



Competitive Advantage:

Fashion & modern design
Machinery & technology: Advanced mould machines and equipments ensure products performance and
reliability.
Quality control: 100% product performance testing.

Fashional Theodoor Air Curtain 200cm Length , Commercial Air Curtain Cooler 0

Fashional Theodoor Air Curtain 200cm Length , Commercial Air Curtain Cooler 1



Fashional Theodoor Air Curtain 200cm Length , Commercial Air Curtain Cooler 2



Fashional Theodoor Air Curtain 200cm Length , Commercial Air Curtain Cooler 3
