Product Details:
Payment & Shipping Terms:
|
Product Name: | 5G Series Air Curtain In Aluminum Cover | Application: | For Door, Entryway |
---|---|---|---|
Supplied: | 120v- 50/60Hz Or 220v-50/60Hz | Type: | Single Cool |
Length: | 36inch, 40inch, 48inch, 60inch, 72inch | Color: | White, Silver |
White, Silver: | White, Silver | Standard: | CCC, CE |
High Light: | air curtains for doors,air curtains for restaurants |

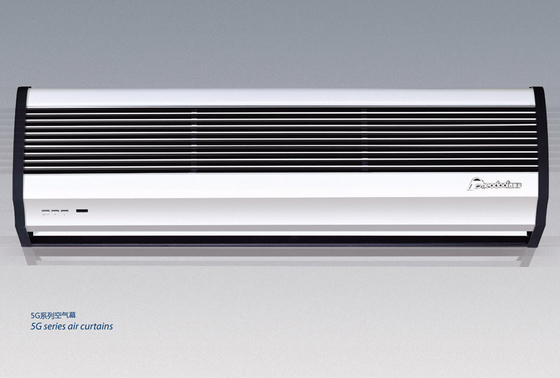

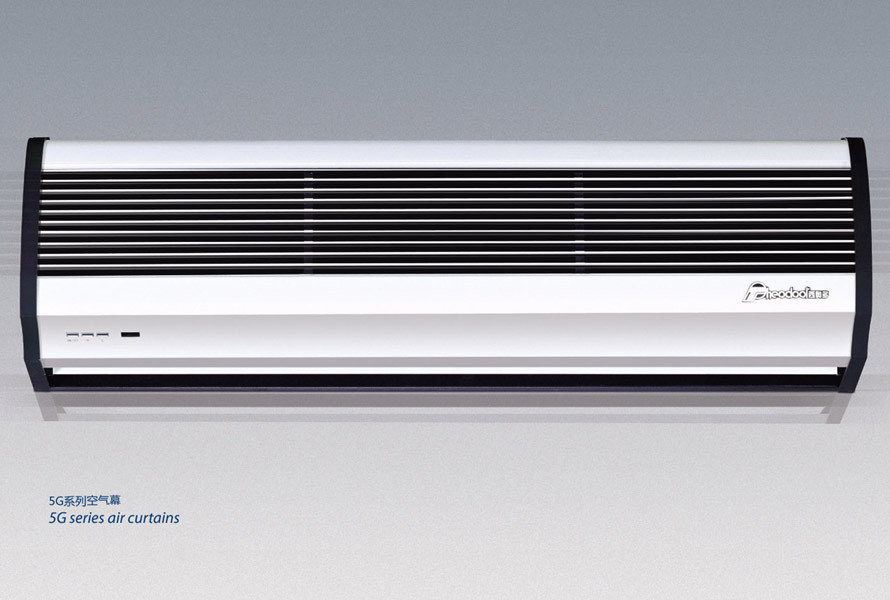

Theodoor Air Curtain 5G Series By Cross-flow Air Ventilation For Doorway
Specifications:
Model |
Size (mm) |
Volt./ Freq. |
Motor power(W) |
Air volume (m3/h) |
Air speed (m/s) |
Noise (dB) |
N.W(kg) |
|||
Hi |
Lo |
Hi |
Lo |
Hi |
Lo |
|||||
FM-1209T/Y5G |
900x190x220 |
220v~ 50Hz |
160 |
110 |
1400 |
1100 |
9-11 |
57 |
55 |
10 |
FM-1210T/Y5G |
1000x190x220 |
180 |
130 |
1600 |
1300 |
58 |
56 |
11 |
||
FM-1212T/Y5G |
1200x190x220 |
200 |
150 |
1900 |
1600 |
58 |
56 |
12.5 |
||
FM-1215T/Y5G |
1500x190x220 |
230 |
180 |
2500 |
2000 |
59 |
57 |
15.5 |
||
FM-1218T/Y5G |
1800x190x220 |
300 |
250 |
3200 |
2600 |
60 |
58 |
18 |
Feature
Newly design Air curtain from China;
Aluminum cover with 3D body design;
Normal air, offer invisible air door.
Aluminum cover with 3D body design, covered with black side cover, luxury and classic appearance.
The new bar grille panel and luxury air intake design, be able to maintain a clean body.
Optimized fan wheel design, provide stable and even air curtain. With large air volume and low noise.
Reliable designed motor operates 5000 hours continuously without any defects.
1) Remote control
2) Two speeds
3) Aluminum cover
4) Available size: 900mm, 1,000mm 1,200mm, 1,500mm, 1,800mm
Applications:
Theodoor Air curtain is installed above the entryway of store, restaurant, hotel…etc. It can effectively
isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location
with airconditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air
Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable
indoor climate is maintained.
Commercial use |
Supermarket, shopping malls, department store, small store, hotels, restaurants, hospital, |
Industrial use |
Factory, workshop, warehouse, spinning mill, frozen goods factory, paint factory, large |
Competitive Advantage:
Fashion & modern design
Machinery & technology: Advanced mould machines and equipments ensure products performance and
reliability.
Quality control: 100% product performance testing.
