1,500mm Silver 13-16m/s / 16-20m/s Ceiling Recessed Air Curtain Doors
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Ceiling Wind Air Curtain | Application: | For Door, Entryway |
|---|---|---|---|
| Supplied: | 220v-50/60Hz | Type: | Single Cooling, Has At Least 2 Motors |
| Length: | 90cm, 100cm, 120cm, 150cm, 180cm | Color: | Silver (stainless Steel) |
| Air Speed: | 13-16m/s, 16-20m/s | ||
| High Light: | overhead door air curtain,36 inch air curtain |
||
Stainless Steel Cover Ceiling Wind Commercial Air Curtain Recessed type
Specifications:
|
Model |
Size (mm) |
Volt./ Freq. |
Input power(W) |
Air flow (m3/h) |
Air speed (m/s) |
Noise (dB) |
N.W (kg) |
|||
|
Hi |
Lo |
Hi |
Lo |
Hi |
Lo |
|||||
|
FM-3509CS |
900x235X320 |
220v/50Hz |
230 |
200 |
1100 |
900 |
13-16 |
52 |
49 |
17 |
|
FM-3510CS |
1000x235X320 |
250 |
220 |
1200 |
1000 |
52 |
49 |
19 |
||
|
FM-3512CS |
1200x235X320 |
290 |
260 |
1500 |
1200 |
53 |
50 |
22 |
||
|
FM-3515CS |
1500x235X320 |
380 |
350 |
1900 |
1500 |
55 |
52 |
27 |
||
|
FM-4009CS |
900x235X320 |
220v/50Hz |
300 |
270 |
1400 |
1000 |
16-20 |
57 |
54 |
17 |
|
FM-4010CS |
1000x235X320 |
320 |
290 |
1400 |
1000 |
57 |
54 |
18 |
||
|
FM-4012CS |
1200x235X320 |
400 |
370 |
1900 |
1500 |
58 |
55 |
22 |
||
|
FM-4015CS |
1500x235X320 |
500 |
470 |
2300 |
1900 |
61 |
58 |
27 |
||
Feature:
1. The bottom air-inlet and air-outlet designed for our ceiling air curtain makes it suitable for installation in
the ceiling.
2. The stainless steel design of the outer casing is easy to clean and has high performance fire protection.
3. Adopting high-performance motor, safe and reliable; Centrifugal turbine creates higher air velocity;
4. Adopting updated remote control with high and low speeds operation;
5. Installation height: 3-4m

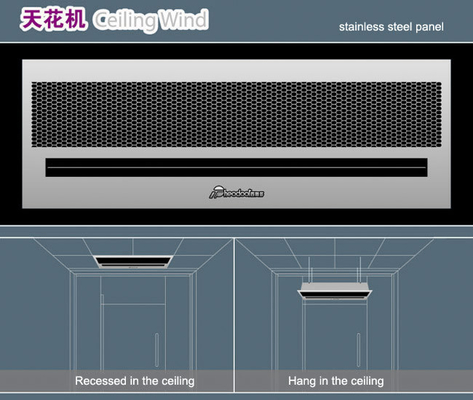

Stainless Steel Air Curtain:
Recessed in the ceiling designed, suitable for simple glass door and the side without enough space and
special environment.
Stainless steel covers design, high quality performance.
Available size: 900mm, 1,000mm, 1,200mm, 1,500mm
