Stainless Steel Ceiling Wind Heated Commercial Air Curtain With Cooling / Heating
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Ceiling Wind Heating Air Curtain | Application: | For Door, Entryway |
|---|---|---|---|
| Supplied: | 220v Or 380V-50Hz | Type: | Cool & Heating Air Curtain |
| Length: | 90cm, 120cm, 150cm, 180cm | Color: | White, Stainless Steel |
| Air Speed: | 8-9m/s | ||
| High Light: | garage door air curtain,36 inch air curtain |
||
Stainless Steel Ceiling Wind Heated Commercial Air Curtain With Cooling / Heating
(Ceiling Wind Heating Air Curtain)
Specifications:
|
Model |
Size (mm) |
Volt./ Freq. |
Motor Power (W) |
PTC heater Power (kW) |
Air volume (m3/h) |
Air speed (m/s) |
Temp. rising (K) |
N.W (kg) |
||||||
|
Hi |
low |
H |
M |
L |
||||||||||
|
RM-1209CS-3D/Y |
937x440x211 |
380v~ 50Hz |
160 |
110 |
6 |
4 |
2 |
1350 |
8-9 |
21-25 |
19 |
|
||
|
RM-1210CS-3D/Y |
1037x440x211 |
180 |
130 |
7 |
5 |
2 |
1550 |
21-25 |
21 |
|
||||
|
RM-1212CS-3D/Y |
1217x440x211 |
200 |
150 |
8 |
5 |
3 |
1850 |
21-25 |
25 |
|
||||
|
RM-1215CS-3D/Y |
1497x440x211 |
230 |
180 |
10 |
7 |
3 |
2400 |
21-25 |
29 |
|
||||
|
RM-1218CS-3D/Y |
1831x440x211 |
280 |
230 |
12 |
8 |
4 |
3050 |
21-25 |
33 |
|
||||
Feature:

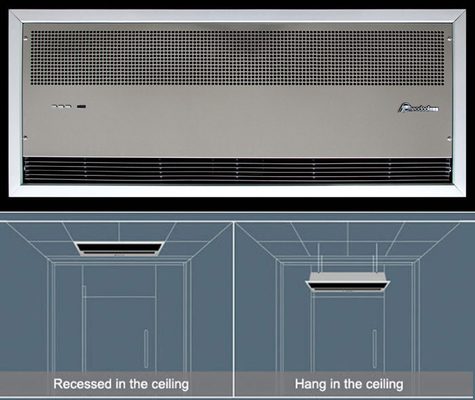

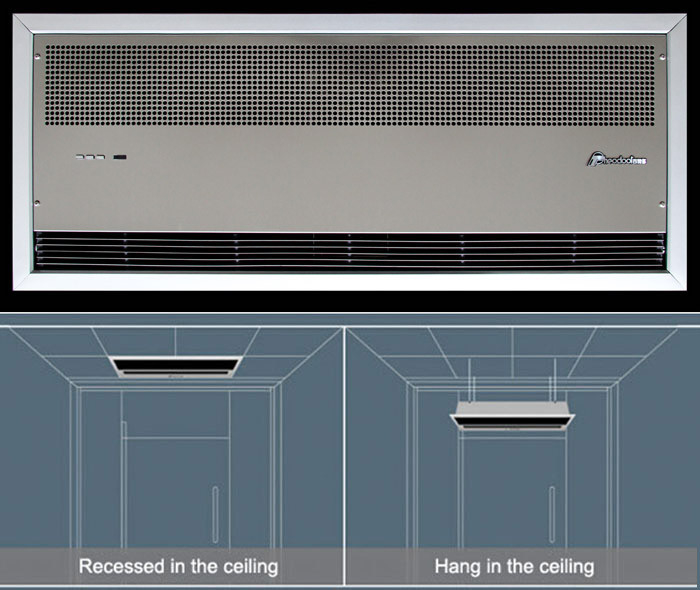

Recessed design
It is available to insert into the ceiling or hanging design. It’s for special situations where the glass door is unable or lacks of enough space for side installation.
Full metal outer cover and aluminum alloy air inlet panel; It is environmental-friendly and easy to be cleaned, besides, has high performance for fireproof.
High Efficient and Performance
High efficient of heat conversion, uncharged PTC Heater and fast temperature rising.
Optimized motor, tangential fan wheel and technical airway design; Low noise and long life operation.
Safety & Reliability
Triplicate Security Protection: Thermal protector, Varistor and fuse;
Automatic postpone safety protection when power off.
Applications:
Theodoor Air curtain is installed above the entryway of shopping malls, stores, hotels, restaurants, hotel…
etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air conditioner to keep indoor environment and save energy of refrigeration
equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside.
In this way, a comfortable indoor climate is maintained.
