Single Cooling Compact Commercial Air Curtain For Overhead Doors 120cm Length
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Titan 3 Series Air Door | Application: | For Door |
|---|---|---|---|
| Supplied: | 120v- 50/60Hz Or 220v-50/60Hz | Type: | Single Cooling |
| Length: | 90cm, 100cm, 120cm, 150cm, 180cm, 200cm | Color: | White |
| Air Speed: | 9-11m/s | Standard: | CCC, CE, CB |
| High Light: | door air cutter,recessed air curtain |
||

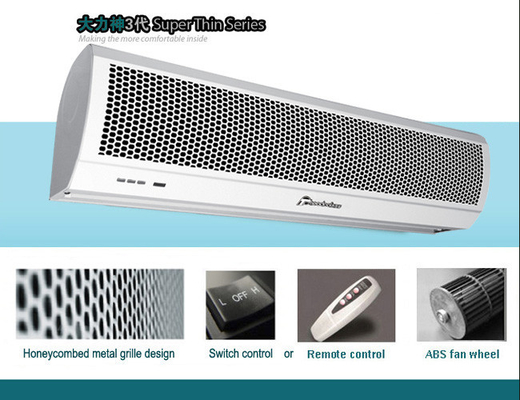

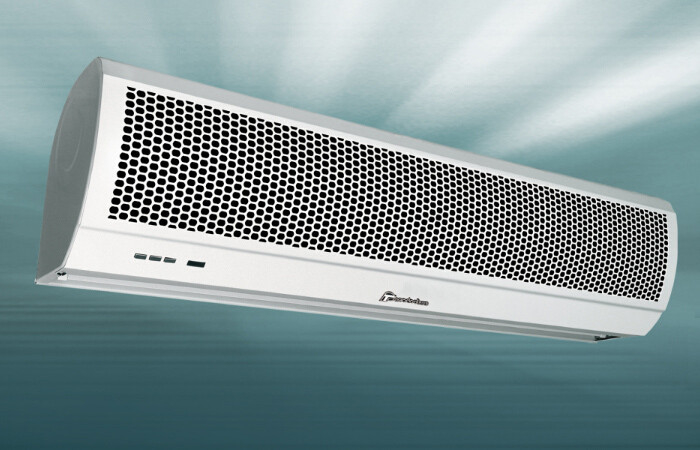

Titan 3 Series Compact Air Curtain with R/C for overdoor installation
Specifications:
|
Model |
Size (mm) |
Volt./ Freq. |
Motor power(W) |
Air volume (m3/h) |
Air speed (m/s) |
Noise (dB) |
N.W (kg) |
|||
|
Hi |
Lo |
Hi |
Lo |
Hi |
Lo |
|||||
|
FM-1209SA3 |
900x190x210 |
220v~ 50Hz |
160 |
110 |
1400 |
1100 |
9-11 |
57 |
55 |
10 |
|
FM-1210SA3 |
1000x190x210 |
180 |
130 |
1600 |
1300 |
58 |
56 |
10.5 |
||
|
FM-1212SA3 |
1200x190x210 |
200 |
150 |
1900 |
1600 |
58 |
56 |
12 |
||
|
FM-1215SA3 |
1500x190x210 |
230 |
180 |
2500 |
2000 |
59 |
57 |
13.5 |
||
|
FM-1218SA3 |
1800x190x210 |
300 |
250 |
3200 |
2600 |
60 |
58 |
15 |
||
|
FM-1220SA3 |
1800x190x210 |
350 |
300 |
3600 |
2900 |
61 |
59 |
17 |
||
Feature
1. The compact air curtain adopts metal cover is designed with advanced fire resistance. In addition it has
easy installation and simple maintenance.
2. The optimized fan wheel provides stable & even air flow. It has large air volume and low noise
performance.
3. The reliable designed motor, with overheating protector and has safety operation of 5000 hours
continuously without defect.
4. Adopting remote control or touch switch, it’s able to adjust high and low air velocity.
5. Suitable for application in cafeteria, bakery, waiting room, restaurants, retail shop, department store,
sports center and so on.
