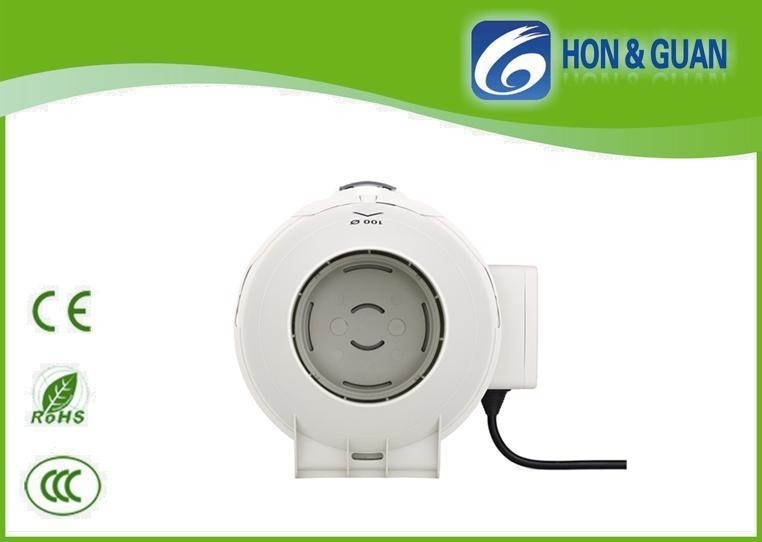

Silent exhaust Hydroponics Inline Fan 165m3/h -198 m3/h 50000 hours

Silent exhaust Hydroponics Inline Fan 165m3/h -198 m3/h 50000 hours

Features:

• The shell is made of polypropylene plastic, one-time disposable molded, with high anti-acid ability, well use for hydroponics purpose.
• The impeller is made of ABS, designed by hydromechanics to reach the optimal air and pressure.
• Two-speed motor, Japanese brand NMB ball bearing, its life expectancy up to 50,000 hours.
• IP44 protection class, waterproof and dustproof more effective.
• Can be designed with a timer function, temperature sensors and humidity sensors, more of user-friendly features design.
• Operating temperature range: -20°C ~ 60°C

Specification:

Dimensions drawing:

                                                                                                                                              Unit: mm

Performance Curve:

                                                                                                                                         HS: High speed

                                                                                                                                         LS: Low speed

Application:

HF Mixed flow inline duct fan can be used for exhaust and supply ventilatoin systems that require high pressure, powerful airflow and low noise levels. With a range of sizes that include 100, 125, 150 and 200mm, HF fan can be used with rigid and flexible ducting. The HF mixed flow inline duct fan are the ideal solution for air exhaust systems for rooms with high humidity such as bathrooms and kitchens, as well as ventilation for apartments, houses, shops, cafes, restaurants, cinemas etc.

Mounting:

The fan can be mounted in line or at either end of the duct run and at any angle, horizontally or vertically. All fans can be mounted in parallel to increase the volume of air or in series to increase the pressure. The casing is fitted with a mounting plate. The mounting box can be rotated to be installed in any position for easy installation and connection.
