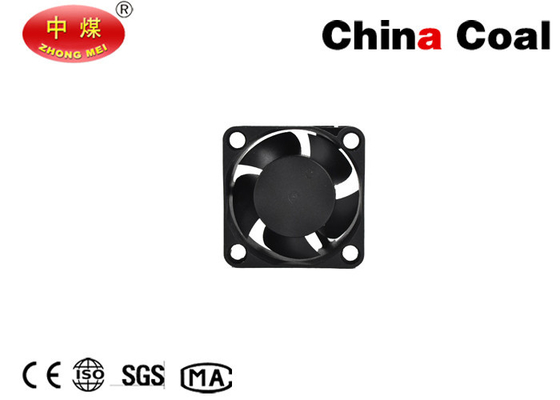

HDS04 Series Car Auto Cool Air Vent Cooler Low Noise 5V 12V Jet Fan

Large Image : HDS04 Series Car Auto Cool Air Vent Cooler Low Noise 5V 12V Jet Fan Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	China Coal
Certification:	CE/SGS/ISO
Model Number:	HDS0405UC

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	carton box, plastic bags, wooden cases or as your requirement
Delivery Time:	5-10 days after your payment
Payment Terms:	TT, Western Union and Paypal
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Model:	HDS0405UC	Bearing:	Sleeve
Rated Voltage:	5DC	Start Up Voltage:	4.0 VDC
Current:	0.3A	Power:	1W
Speed:	8200RPM	Air Flow:	0.29 M3/min
High Light:	industrial ventilation equipment , ventilating fan

Car Auto Cool Air Vent Cooler 5V 12V Jet Fan

Keyword:fan,jet fan,jet fan

Product Description

1. frame size(mm): 40X40X20

2. bearing system type: 1B1S bearing,hypro bearing

3. rated voltage: 5V/8.5V/12V/24V

4. rated speed: 5000RPM/6200RPM/7200RPM/8200RPM

5. Maxim air flow: 5.85CFM/6.95CFM/8.37CFM/9.65CFM/10.10CFM/11.33CFM

6. Maxim pressure(mmH2O): 2.63/3.73/5.30/7.68/10.00/12.59

7. Maxim noise(dBA): 21.1/23.5/27.2/31.0/33.5/37.9

8. function: by impedance,by IC, by IC with FG

9. safety approvals: CE,TUV,UL

Parameter

Car Auto Cool Air Vent Cooler 5V 12V Jet Fan
404020MM
Model	Bearing	Rated Voltage	Start up Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model	Bearing	Rated Voltage	Start up Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HDS0405UC	Sleeve	5	4.0	0.30	1.00	8200	0.29	10.10	10.00	0.39	31.0
HDS0405HC			4.0	0.22	1.10	7200	0.24	8.37	5.30	0.21	27.2
HDS0405MC			4.0	0.16	0.80	6200	0.20	6.95	3.73	0.15	23.5
HDS0405LC			4.5	0.14	0.70	5000	0.17	5.85	2.63	0.10	21.1
HDB0405UC	Ball		4.0	0.30	1.50	8200	0.29	10.10	10.00	0.39	31.0
HDB0405HC			4.0	0.22	1.10	7200	0.24	8.37	5.30	0.21	27.2
HDB0405MC			4.0	0.16	0.80	6200	0.20	6.95	3.73	0.15	23.5
HDB0405LC			4.5	0.14	0.70	5000	0.17	5.85	2.63	0.10	21.1
HDX048ELC		8.5	6.0	0.10	0.85	5000	0.17	5.85	2.63	0.10	21.1
HDS0412UC	Sleeve	12	6.0	0.12	1.44	8200	0.29	10.10	10.00	0.39	31.0
HDS0412HC			6.0	0.10	1.20	7200	0.24	8.37	5.30	0.21	27.2
HDS0412MC			6.0	0.08	0.96	6200	0.20	6.95	3.73	0.15	23.5
HDS0412LC			7.0	0.06	0.72	5000	0.17	5.85	2.63	0.10	21.1
HDB0412EC			7.0	0.20	2.40	9200	0.32	11.33	12.59	0.50	33.5
HDB0412UC	Ball		6.0	0.12	1.44	8200	0.27	9.65	7.68	0.30	37.9
HDB0412HC			6.0	0.10	1.20	7200	0.24	8.37	5.30	0.21	27.2
HDB0412MC			6.0	0.08	0.96	6200	0.20	6.95	3.73	0.15	23.5
HDB0412LC			7.0	0.06	0.72	5000	0.17	5.85	2.63	0.10	21.1
HDS0424UC	Sleeve	24	12.0	0.10		8200	0.29	10.10	10.00	0.39	31.0
HDS0424HC			12.0	0.07	1.68	7200	0.24	8.37	5.30	0.21	27.2
HDS0424MC			12.0	0.06	1.44	6200	0.20	6.95	3.73	0.15	23.5
HDS0424LC			12.0	0.05	1.20	5000	0.17	5.85	2.63	0.10	21.1
HDB0424EC			12.0	0.15			0.00			0.00
HDB0424EC				0.10		9200		11.33	12.59	0.50	33.5
HDB0424UC	Ball		12.0	0.08		8200	0.29	10.10	10.00	0.39	31.0
HDB0424HC			12.0	0.07	1.68	7200	0.24	8.37	5.30	0.21	27.2
HDB0424MC			12.0	0.06	1.44	6200	0.20	6.95	3.73	0.15	23.5
HDB0424LC			12.0	0.05	1.20	5000	0.17	5.85	2.63	0.10	21.1
