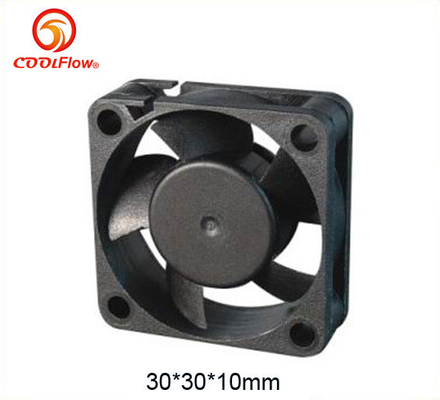

30*30*10mm DC fan / DC Brushless fan / DC cooling fan / DC Axial fan
|
Product Details:
|
Detailed Product Description
| High Light: | brushless cooling fan,industrial cooling fans |
||
|---|---|---|---|
30*30*10mm DC fan / DC Brushless fan / DC cooling fan / DC Axial fan
Quick Details
|
Type: |
DC AXIAL FAN |
Electric Current Type: |
DC |
Brand Name: |
CoolFlow |
|
Material: |
PBT plastic |
Place of Origin: |
Guangdong China |
Weight |
7.0g |
|
Model Number: |
See spec. |
Voltage: |
5V,12V,24V |
Air Volume: |
3.21～4.30CFM |
|
Size |
30*30*10mm |
Current(A): |
0.05～0.14A |
Noise Level |
21.0～27dB(A) |
|
Speed: |
8000～1050RPM |
Bearing type: |
Sleeve/2ball/long life |
Certification: |
CE,ROHS |
▲Description:
1. Product Name:
DC fan,DC cooling fan,DC brushless fan,DC axial fan,computer fan,cpu fan,case fan,DC blower fan.
2. Life Expectancy:
Dual Ball Bearing: 70000 hours
Single Ball Bearing: 40000 hours
Long life Bearing: 35000 hours
Sleeve Bearing: 25000 hours
3. Standard environmental conditions
Unless otherwise specified,the reference environmental temperature and relative humidity are taken to be 20℃ and 65%.
If there is no provision in the judgment,the environmental temperature and relative humidity range are taken to be 15℃～35℃ and 25%～75%.
4. Operating temperature: -10°C～+70°C/65%(RH)
5. Storage temperature: -40°C～+70°C/65%(RH)
6. Normal temperature rise:
Temp;rise less than 25 °C at external surface.Temp;rise less than 55 °C at coiler surface.
7. Material:
Impeller & Frame: PBT Plastic(UL94V-0)
8. Lead Wire:
UL1061 AWG26# or Equivalent
Red wire: positive(+)
Black wire:Negative(-)
9. Insulation Resistance
Insulation resistance is more than 10MΩ when voltage between housing and both lead wires is 500VDC .
10. Withstand Voltage:
Must withstand 500VAC 1 second 1mA between housing and both lead wires.
11. Competitive Advantage:
11-1. We enjoy 10 years experience in manufacturing cooling fan
11-2. We have a comprehensive OEM service
11-3. We fully approved CE,SGS,UL,cUL,TUV certifications
11-4. We have advanced testing instrument and production equipment
11-5. We enjoy convenient access to major transportation networks.
11-6. We specialize in all kinds of Cooling Fans,such as AC/DC fans, CPU coolers,notebook coolers, VGA coolers, Hdd cooler and some accessories : Fan Gard ,Fan Filter and Thermal Grease.
▲ Applications:
Suitable for computer, household appliances, projectors, toys, copiers and other equipment heat dissipation.
▲ Specifications:
|
Minimum Order Quantity: |
10000pcs |
|
|
FOB Price: |
USD0.90-USD2.50 |
|
|
Port: |
SHENZHEN |
|
|
Leadtime |
2～3 weeks subject to order quantity . |
|
|
Delivery Time: |
Sample lead time:3-5 days . |
|
|
Mass production Delivery lead time: 2～3 weeks . |
||
|
Delivery Ways: |
DHL ,UPS Door to Door service ,By Air ,By Sea ,etc. |
|
|
Payment Terms: |
30% deposit T/T in advance and 70% the balance before shipment. |
|
|
Supply Ability: |
1,500,000pcs/month |
|
|
Packaging Details: |
carton box or negotiable |
|
|
Q’TY |
1200PCS/CTN |
|
|
N.W.(Kgs) |
10.2kg |
|
|
G.W(Kgs) |
13.8kg |
|
|
CTN SIZE |
45.5 x 36.5 x 27.5.0cm |
|
