12V DC Burshless Blower Fan / 4inch DC Centrifugal Fan / 12V DC Cooling Fan

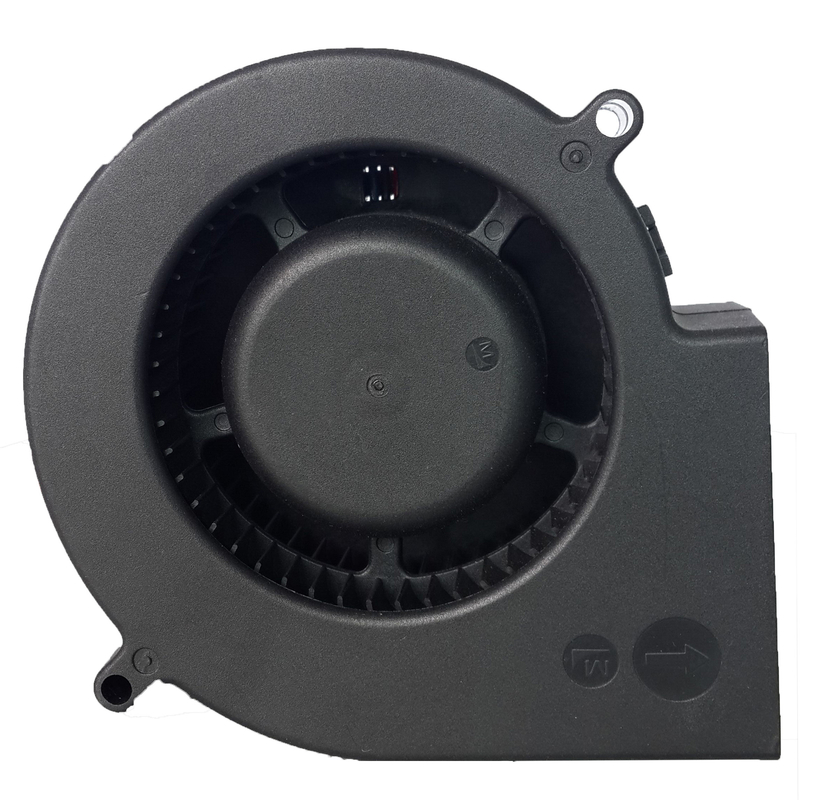

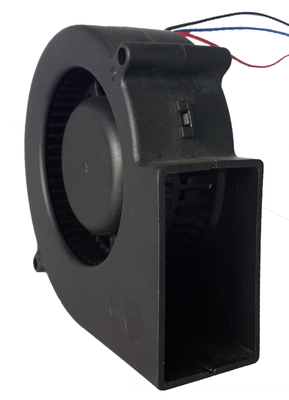

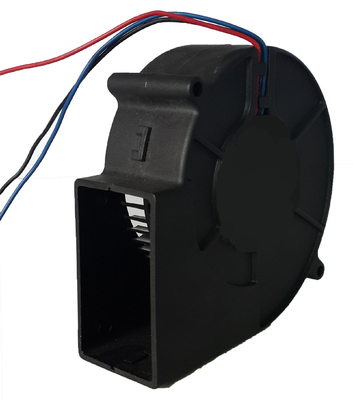

12V DC 97 x 94 x 33mm Blower Fan / 4inch DC Centrifugal Fan / 12V DC Cooling Fan


1.Description:

• 12V DC 97 x 94 x 33mm Blower Fan , DC Burshless Fan , DC Centrifugal Fan , Computer Fan , DC Cooling Fan .

• It's a new special mini fan for equipment of confined space .

2.Material:

• Frame:Plastic(UL94V-0)

• Impeller:Plastic(UL94V-0)

• Leadwire:UL1007 AWG#26 or Equivalent (+):Red (-):Black

3.Protection:

• Motor:Impedance Protected and Reverse Polarity Protected

4.Expected Life:

• Ball bearing:50,000 hours (40℃)

• Sleeve Bearing:30,000 hours (40℃)

5.Allowable Ambient Temperature Range:

• Operating Temperature:-10℃~+70℃

• Storage Temperature:-40℃~+70℃

• Non Condensing Environment

6.Insulation Resistance:

• Not less than 10M ohm between housing and positive end of lead wire(red) at 500V DC.

7.Dielectric Strength:

• No damage should at 500 VAC for 60 second , measured with 5mA trip current between
  housing and positive end of lead wire.

8.Locked Rotor Protection:

• No damage shall be found after 72 hours continuously at condition of rotation locked,
  Restarting is automatic as soon as constraint to running has been released

9.Polarity Protection:

• No damage shall be found with reverse connection 5 minute at rated voltage. After returning
  to normal polarity, all function shall be normal

10.Specification:

11.Dimensions:

12.Performance Curve
