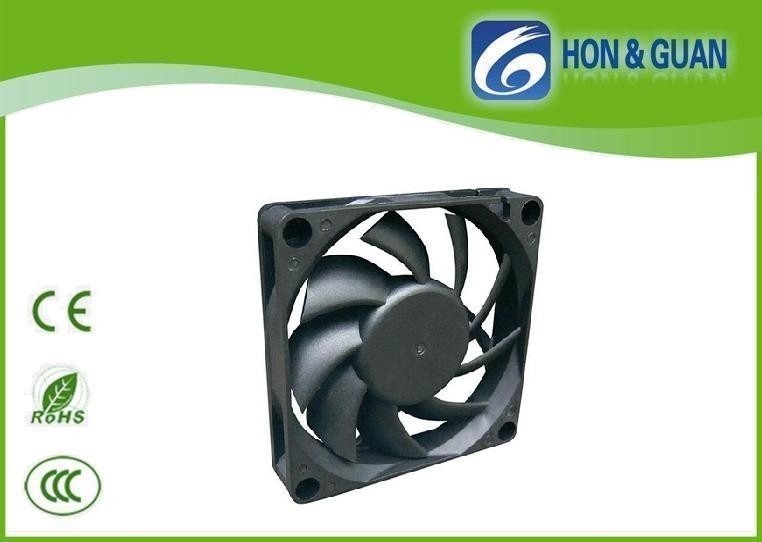

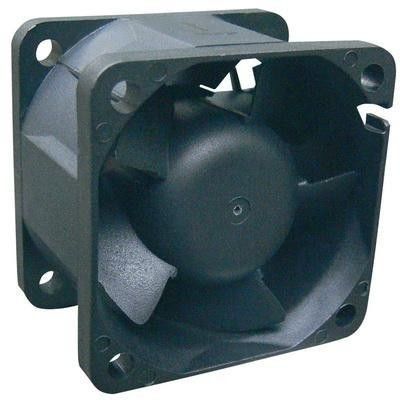

Universal Radiator Cooling Fan DC Axial Brushless Energy Saving System
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | Black | Bearing Type: | Ball Or Sleeve |
|---|---|---|---|
| Material: | Plastic | Operating Temperature: | -10℃-70℃ |
| Storage Temperature: | -40℃-80℃ | Speed: | 6500 RPM |
| Air Flow: | 13.81 Cfm | Voltage: | 12V |
| Current: | 0.1A | Power: | 1.2W |
| High Light: | dc blower fan,dc axial fans |
||
Universal Radiator Cooling Fan DC Axial Brushless Energy Saving System
Product Describe:
Size:45*45*10 mm
Bearing Type:Ball or Sleeve
Shell:Plastic(UL94V-0)
Impeller:Plastic(UL94V-0)
Connected Type:Wire UL1007 AWG＃24
Motor:Impedance Protection
Weight:17.9g
Feature:
| Frame Size | 45×45×10mm |
| Bearing Type | Dual Ball Bearing & Sleeve Bearing |
| Rated Voltage | 5V/12V/24V (optional) |
| Frame | Plastic (UL94V-0) |
| Impeller | Plastic (UL94V-0) |
| Leadwire | UL1007 AWG#26 |
| Motor | Impedance Protected |
| Special Function | PWM/FG/ RD/Temperature control/IP56 |
Dimensions Drawing:
Performance Curve:
Specification:
| Model | Voltage | Operating Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | ||
| V | V | Amp | Watt | RPM | m3/min | CFM | mmH2O | inH2O | dB(A) | |
| H4510L05 | 5 | 3.6~6.8 | 0.14 | 0.70 | 5000 | 0.31 | 10.64 | 3.22 | 0.130 | 30.2 |
| H4510L12 | 12 | 6.0~13.5 | 0.07 | 0.84 | 5000 | 0.31 | 10.64 | 3.22 | 0.130 | 30.2 |
| H4510M05 | 5 | 3.6~6.8 | 0.18 | 0.90 | 6000 | 0.36 | 12.53 | 4.67 | 0.180 | 32.6 |
| H4510M12 | 12 | 6.0~13.5 | 0.08 | 0.96 | 6000 | 0.36 | 12.53 | 4.67 | 0.180 | 32.6 |
| H4510H05 | 5 | 3.6~6.8 | 0.27 | 1.35 | 6500 | 0.39 | 13.81 | 5.12 | 0.220 | 36.5 |
| H4510H12 | 12 | 6.0~13.5 | 0.10 | 1.20 | 6500 | 0.39 | 13.81 | 5.12 | 0.220 | 36.5 |
| H4510H12-HH | 12 | 6.0~13.5 | 0.15 | 1.80 | 7000 | 0.41 | 14.15 | 5.51 | 0.240 | 38.4 |
| H4510H24-HH | 24 | 18~26.5 | 0.08 | 1.92 | 7000 | 0.41 | 14.15 | 5.51 | 0.240 | 38.4 |
Packing & Shipping:
Packaging is carton or customer's requipment
10~15 working days for delivery
Mounting:
The fan is widely used for LED industry, Computer component, other electronic products.
