2.52W DC Powered Fan Air Flow Blower 60 X 60 X 38mm for Car Seat
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | Black | Bearing Type: | Ball Or Sleeve |
|---|---|---|---|
| Material: | Plastic | Operating Temperature: | -10℃-70℃ |
| Storage Temperature: | -40℃-80℃ | Speed: | 6000 RPM |
| Air Flow: | 26.07 Cfm | Voltage: | 12V |
| Current: | 0.21A | Power: | 2.52W |
| High Light: | dc axial fans,dc cooler fan |
||

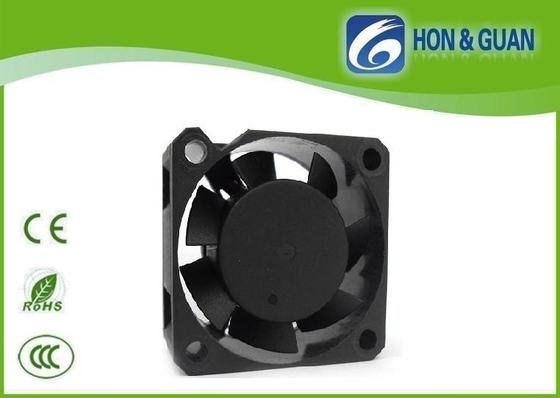

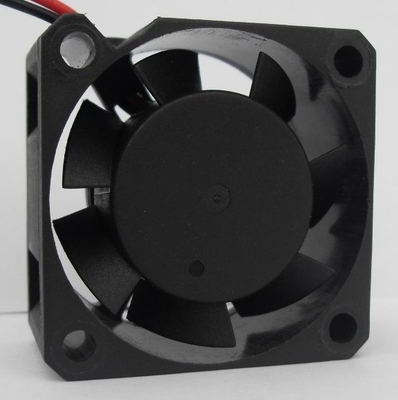

2.52W DC Powered Fan Air Flow Blower 60 X 60 X 38mm for Car Seat
Product Describe:
Size:60*60*38 mm
Bearing Type:Ball or Sleeve
Shell:Plastic(UL94V-0)
Impeller:Plastic(UL94V-0)
Connected Type:Wire UL1007 AWG＃24
Motor:Impedance Protection
Weight:104g
Feature:
| Frame Size | 60×60×38mm |
| Bearing Type | Dual Ball Bearing & Sleeve Bearing |
| Rated Voltage | 5V/12V/24V (optional) |
| Frame | Plastic (UL94V-0) |
| Impeller | Plastic (UL94V-0) |
| Leadwire | UL1007 AWG#26 |
| Motor | Impedance Protected |
| Special Function | PWM/FG/ RD/Temperature control/IP56 |
Dimensions Drawing:
Performance Curve:
Specification:
| Model | Voltage | Operating Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | ||
| V | V | Amp | Watt | RPM | m3/min | CFM | mmH2O | inH2O | dB(A) | |
| H6038L12 | 12 | 6.0～13.5 | 0.10 | 1.20 | 4000 | 0.48 | 17.03 | 5.43 | 0.213 | 30.5 |
| H6038L24 | 24 | 18～26.5 | 0.06 | 1.44 | 4000 | 0.48 | 17.03 | 5.43 | 0.213 | 30.5 |
| H6038M12 | 12 | 6.0～13.5 | 0.15 | 1.80 | 5000 | 0.60 | 21.35 | 7.88 | 0.310 | 34.3 |
| H6038M24 | 24 | 18～26.5 | 0.07 | 1.68 | 5000 | 0.60 | 21.35 | 7.88 | 0.310 | 34.3 |
| H6038M48 | 48 | 36～54 | 0.06 | 2.88 | 5000 | 0.60 | 21.35 | 7.88 | 0.310 | 34.3 |
| H6038H12 | 12 | 6.0～13.5 | 0.21 | 2.52 | 6000 | 0.74 | 26.07 | 11.89 | 0.468 | 38.9 |
| H6038H24 | 24 | 18～26.5 | 0.13 | 3.12 | 6000 | 0.74 | 26.07 | 11.89 | 0.468 | 38.9 |
| H6038H48 | 48 | 36～54 | 0.09 | 4.32 | 6000 | 0.74 | 26.07 | 11.89 | 0.468 | 38.9 |
| H6038H12-HH | 12 | 6.0～13.5 | 0.30 | 3.60 | 7000 | 0.85 | 30.19 | 14.08 | 0.554 | 39.1 |
| H6038H24-HH | 24 | 18～26.5 | 0.20 | 4.80 | 7000 | 0.85 | 30.19 | 14.08 | 0.554 | 39.1 |
| H6038H48-HH | 48 | 36～54 | 0.12 | 5.76 | 7000 | 0.85 | 30.19 | 14.08 | 0.554 | 39.1 |
| H6038H12-VH | 12 | 6.0～13.5 | 0.45 | 5.40 | 7500 | 0.94 | 33.13 | 18.61 | 0.732 | 43.2 |
| H6038H24-VH | 24 | 18～26.5 | 0.28 | 6.72 | 7500 | 0.94 | 33.13 | 18.61 | 0.732 | 43.2 |
| H6038H48-VH | 48 | 36～54 | 0.13 | 6.24 | 7500 | 0.94 | 33.13 | 18.61 | 0.732 | 43.2 |
| H6038H12-SH | 12 | 6.0～13.5 | 0.58 | 6.96 | 8000 | 1.05 | 36.94 | 20.03 | 0.788 | 44.6 |
| H6038H24-SH | 24 | 18～26.5 | 0.32 | 7.68 | 8000 | 1.05 | 36.94 | 20.03 | 0.788 | 44.6 |
| H6038H24-SH | 48 | 36～54 | 0.14 | 6.72 | 8000 | 1.05 | 36.94 | 20.03 | 0.788 | 44.6 |
Packing & Shipping:
Packaging is carton or customer's requipment
10~15 working days for delivery
Mounting:
The fan is widely used for LED industry, Computer component, other electronic products.
