Auto 300W 600W Modified Sine Wave Power Inverter Converter Built in Cooling Fan
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Brand Name: | Sunuse | Peak Power: | 600w |
|---|---|---|---|
| Output Type: | Single | Model Number: | SIM300 |
| Continous Output Power: | 300w | Color: | Orange |
| High Light: | dc to ac power inverter,12 volts to 220 volts inverter |
||

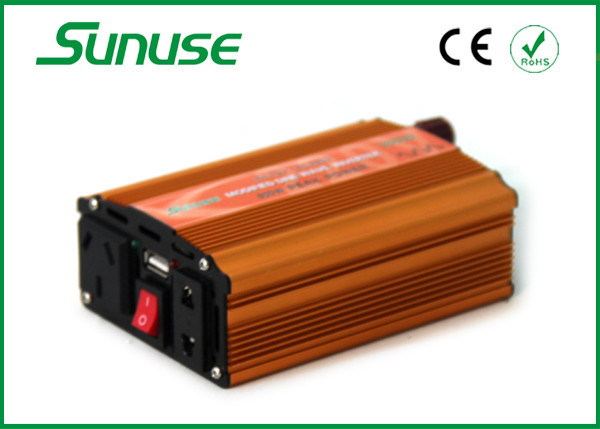

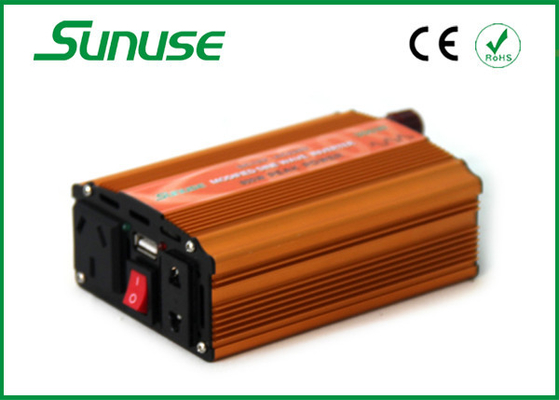

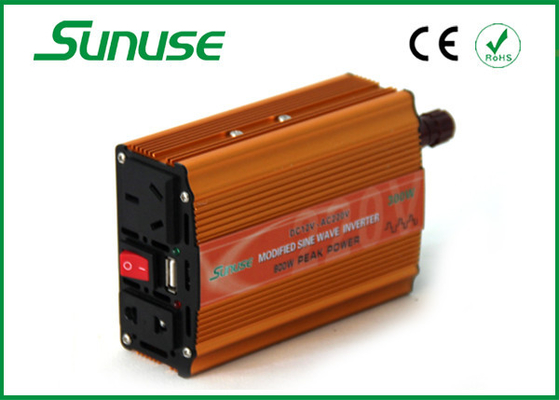

Modified Sine Wave DC 12V to AC 220V car auto power inverter converter 300W
Quick Detail:
1, With USB 2000mA, 5V output
2, CE, ROHS
3, Smart, light, easy for carry
4, peak power 600w
Specifications:
|
Ⅰ |
Battery Input Properties |
Note |
||||
|
1 |
Nominal Input Voltage |
13.2VDC |
|
|||
|
2 |
Input Voltage Range |
11-16VDC |
|
|||
|
3 |
Low Voltage Cut Off |
10.0±0.3VDC |
|
|||
|
4 |
Low Voltage Restart |
12.0±0.3VDC |
|
|||
|
5 |
Low Voltage Alarm |
10.5±0.3VDC |
|
|||
|
6 |
High Voltage Cut Off |
16.0±0.3VDC |
|
|||
|
7 |
High Voltage Restart |
15.0±0.3VDC |
|
|||
|
8 |
No Load Current |
≤0.1A |
|
|||
|
9 |
Input Fuse |
40A*2 |
|
|||
|
10 |
Input Reverse Protection |
By fuse |
|
|||
|
AC Output Properties |
|
|||||
|
1 |
AC Voltage Range |
230±10VAC |
|
|||
|
2 |
AC Output Frequency |
50Hz/60Hz±1Hz |
|
|||
|
3 |
Continuous Output Power |
300W |
|
|||
|
4 |
Overload Protection |
310—380W |
|
|||
|
5 |
Peak Output Power |
600W |
|
|||
|
6 |
Output Voltage Waveform |
Modified Sine Wave |
|
|||
|
7 |
USB Output Voltage |
5.0±0.25VDC |
|
|||
|
USB Output Current |
2.0A |
|
||||
|
8 |
Efficiency |
≥92% |
|
|||
|
9 |
Output Short Circuit Protection |
Yes |
|
|||
|
10 |
High Temperature Protection |
≤65℃ |
|
|||
|
Ⅱ |
Other Properties |
|
||||
|
1 |
Indicate |
Operating :Green LED |
|
|||
|
Fault :Red LED And Alarm |
|
|||||
|
2 |
Operating Temperature Range |
-10--40℃ |
|
|||
|
3 |
Storage Temperature Range |
-20--55℃ |
|
|||
|
4 |
Operating Relative Humidity |
10---90% |
|
|||
|
5 |
Storage Relative Humidity |
5---95% |
|
|||
|
6 |
Dimension(L×W×H) |
160*97*54mm |
|
|||
|
7 |
Weight(N.W.) |
558g |
|
|||
|
8 |
Out Socket |
|
|
|||
|
9 |
|
|
|
|||
|
Tabulation |
|
Check |
|
Approve |
|
|
Description:
Benefits:
100% brand new and high qualit
Able to work in the state of ultrasonic sound, which can both in a great extent minish the bulk and weight and make the circuit work without noise.
Provides 300 watts of AC power and 600 watts surge power
Audio alarm warns of low battery level prior to auto shut down
Safely shuts down if over temperature or overload condition
Operate a 13" TV for about 5 hours from a typical car battery.
Features:
300W 12v DC 220v AC Power Inverter.
Convert DC 12V electricity source into AC 220V power
AC frequency: 50Hz (+/-1%)
Efficiency: 90%
Automatic Thermal Shutdown
Overload Protection
Extra Surge Capacity
Low Battery Alarm/ Shut Off
Item size:130*90*55mm(Approx.)
Modified Sine Wave
Built-in Cooling Fan
Note: Please make sure you if the voltage and plug fit for you country standard!
Tips:
1. This inverter is just for emergency power, please do not use for whole day working. If it is operated with high continuous load ratings for
extended periods and caused damaged or not working,we are not responsible for replacement or exchange.
2. Please read and follow carefully the instructions in the Owner's Manual provided with every inverter for important safety considerations and precautions.
3. Place the inverter on a reasonably flat surface, either horizontally or vertically.
4. Keep the inverter dry. Avoid placing the inverter on or near heating vents, radiators, in direct sunlight or other sources of heat.
5. DO NOT plug small appliances into the inverter AC receptacles to directly recharge their nickel-cadmium batteries.
6. DO NOT plug in battery chargers for cordless power tools if the charger carries a warning that dangerous voltages are present at the battery terminals.
7. Certain recharges for small nickel-cadmium batteries, such as flashlights, cordless razors, some cordless hand-tools and toothbrushes, can be damaged if plugged into an inverter.
