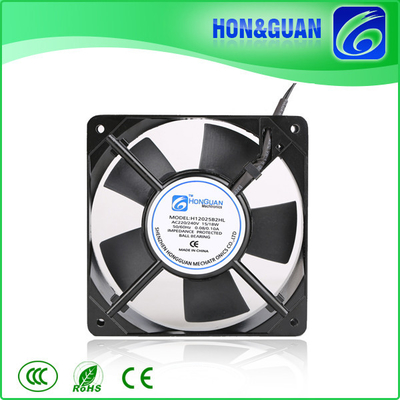

120 x 120 x 25mm ac cooler axial flow fan aluminum housing CE approved
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Axial Flow Fan | Size: | 120x120x25mm |
|---|---|---|---|
| Electric Current: | AC | Voltage: | 110V / 220V |
| Frame Material: | Aluminum Alloy | Impeller Material: | PBT |
| Air Flow: | 66~78 CFM | Rotate Speed: | 2150~2300 RPM |
| High Light: | ac mini fan,ac axial fan |
||
120 x 120 x 25mm ac cooler axial flow fan aluminum housing CE approved
Description:
- Size 120*120*25mm AC axial flow cooling fan.
- Stable quality, big airflow, low noise.
- Both ball and sleeve bearing choose, copper wire.
- Motor protection: Impedance protect.
- Wire type: -AT Terminal / -AW Wires
- Working temperature:
- Ball bearing: -30°C~75°C
- Sleeve bearing: -10°C~70°C
- Protection level: IP44
- Net weight: 330g
Specification:
| Model | Bearing | Voltage | Frequency | Current | Power | Speed | Air Flow | Static Pressure | Noise |
| (V) | (Hz) | (A) | (W) | (RPM) | (CFM) | (mmH2O) |
dB(A) |
||
| H12025B1H | ball | 110 | 60/50 | 0.17/0.18 | 14/16 | 2300/2150 |
78/66 |
4.06/3.56 | 40/38 |
| H12025S1H | sleeve | ||||||||
| H12025B2H | ball | 220 | 50/60 | 0.105/0.088 | 18/14 | 2150/2300 | 66/78 | 3.56/4.06 | 38/40 |
| H12025S2H | sleeve |
Dimensions drawing:
Performance Curve:
Application:
Air cooling for various equipments such as server cabinet, air-conditioner, medical equipments, automatic control equipments, communication equipments, electrical LCD LED, BBQ machines and so on.
(The above specifications are normal types, for more types please contact us, we can design and produce for you.)
