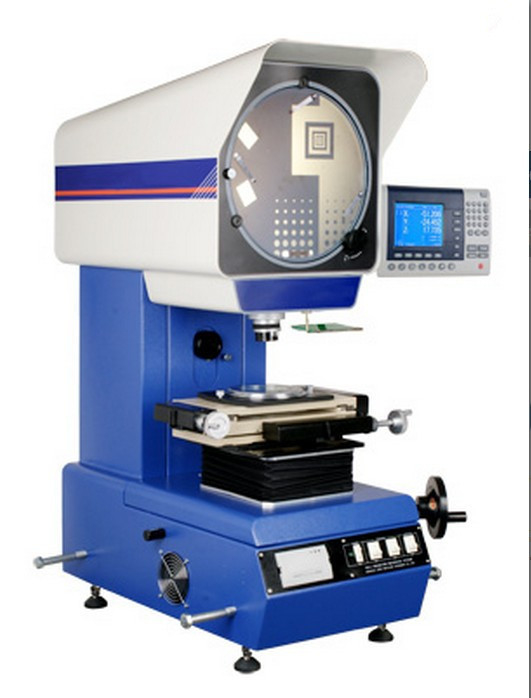

High Precision Optical Measuring Instruments DP100 , Digittal Profile Projector

Large Image : High Precision Optical Measuring Instruments DP100 , Digittal Profile Projector Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Haida
Model Number:	HD-VB12-1550

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD4,960
Packaging Details:	Strong wooden case package
Delivery Time:	15 days after received deposit
Payment Terms:	Full payment before delivery
Supply Ability:	150 set per mouth

Contact Now

Detailed Product Description

Power:	Electronic	Power Supply:	AC110V/60Hz;220V/50Hz
Product Name:	Optical Measuring Devices	Data Processing System:	DC-3000 Multi-function Data Processing System
Instrument Power:	110V/220V(AC),50/60HZ, Total Power 400W	Projection Rotating Range:	0~360°C
High Light:	optical measuring devices , optical measuring equipment

High Precision Optical Measuring Instruments DP100 , Digittal Profile Projector

Digittal profile projector Features:

1.super brightness resolution to diameter 330mm grind arenaceous projection screen, have 45 °C, 90 °C scale line brightness surface lighting fittings are half against translucent and optional green filter new Z axis design,

2. USES 45 degrees of inclined gear V rail-style slideway fluctuation, big guaranteed the Z axis straight sex, improve the measurement precision, powerful DP100 data processing system.

Digittal profile projector parameter :

SIZE			HD-VB12-1550		HD-VB12-2010
operating platform	Metallic mesa dimensionn(mm)		340X152		350X170
	Vitreous mesa dimension(mm)		196x96		246x120
	X coordinate schedule(mm)		150		200
	Y trip(mm)		50		100
	Z coordinate schedule(mm)		100(focus)		100(focus)
	Instrument measuring precision(mm)		3+L/200		3+L/200
	The X, Y, coordinate display resolution: 0.0005 mm
Projection screen	Projection screen size	330		range of application:>300
	Projection rotating range:0~360°C
	Rotation Angle display resolution:1′or 0.01°C
objective	Magnifacation 10X(optional) 20X(With standard) 50X(With standard)100X(With standard)
	Thing fang 30 15 6 3 line view(mm)
	Objects from the 77.7 44.3 38.4 25.3 work of the(mm)
	Measurement 90 90 90 90 maximum height(mm)
Data processing system	DC-3000 Multi-function data processing system
Instrument lighting	Transmission and reflection lighting source are 24V / 150 halogen lamps
Instrument power	110V/220V(AC),50/60HZ, total power 400W
Cooling way	Compulsory air-cooled (3 axial flow fan)

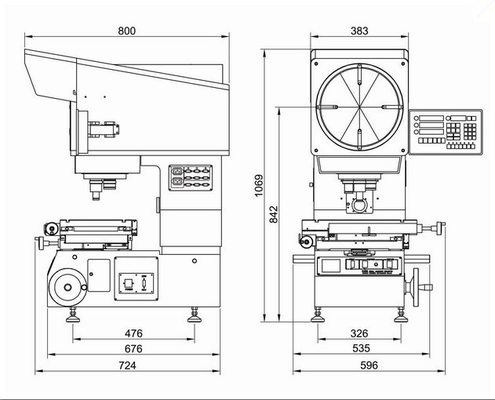

Shape dimension longwidehigh		770x600x1150
Instrument weight unit(kg)		160
