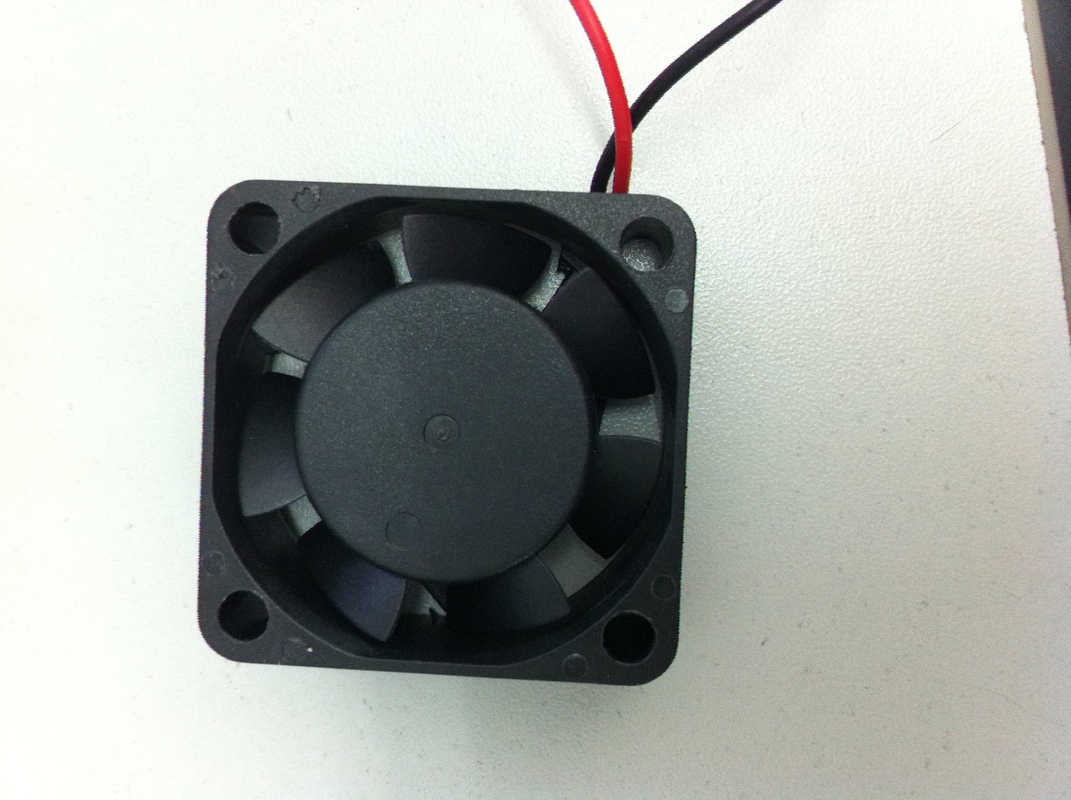

Silent CPU 24V PC Case Cooling Fans , DC Axial Flow Fans 40x40x15mm

large.img.alt
small.img.alt

Large Image :  Silent CPU 24V PC Case Cooling Fans , DC Axial Flow Fans 40x40x15mm Get Best Price

Product Details:
Place of Origin: ShenZhen / GuangDong / China
Brand Name: Topfan / OEM
Certification: CE / ROHS / UL
Model Number: MX4015ABL2
Payment & Shipping Terms:
Minimum Order Quantity: 500 Pieces
Price: USD + 1 to 5 + Piece
Packaging Details: Carton Box
Delivery Time: 5 - 8 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 70000 + Pieces + A Week
Contact Now
Detailed Product Description
Color: Black Rated Voltage: 24V
Bearing Type: Sleeve Bearing & Ball Bearing START - UP VOLTAGE: DC 11 . 0V ( ON / OFF )
RATED CURRENT: 0.05A RATED SPEED: 5500RPM
AIR FLOW: 6 . 5CFM NOISE LEVEL: 25 . 12dBA
High Light:

pc cooling fan

,

waterproof cooling fan

Silent CPU 24V PC Case Cooling Fans , DC Axial Flow Fans 40x40x15mm





Specifications)

***********************************************************************

ITEM                     SPECIFICATION / CONDITION

BEARING TYPE :Ball   Bearing

RATING VOLTAGE  : DC 24V

RATED VOLTAGE :DC 15V - 25 . 8V

START-UP VOLTAGE :DC 11.0V ( ON / OFF )

RATED CURRENT :0 . 05A ± 10﹪　

RATED SPEED  :5500RPM ± 10%

AIR FLOW  :6 . 50CFM

AIR PRESUURE :3 . 18mmH2O

NOISE LEVEL :25 . 12dB ( A )



PROFECFION TRPE

RESISTANCE PROFECTED  : YES

AUTO START  : NO

TACHOMETER OUTPUT  : NO

LOCK ROTOR ALARM OUTPUT : NO

PULSE WIDTH MODULATION  : NO

THERMAL SPEED CONTROLLED : NO

CONNECTION LEAD TYPE :UL1007 24 # AWG =250mm RED … POSITIVE ,  BLACK … NEGATIVE

HOUSING : NO

LABEL :24V - 0 . 05A




Rotation Direction :



The blade is count Clockwise viewing from the blade. The same direction also indicated by an arrow mark on one side of the housing



Life Expectancy :



The continuous duty life at given temperature after which 90% of testing units shall still be running





Bearing System

Test Temperature

Test time

Ball Bearing

25℃

50000

Ball Bearing

40℃

45000

Ball Bearing

60℃

38000





Silent CPU 24V PC Case Cooling Fans , DC Axial Flow Fans 40x40x15mm 0

Silent CPU 24V PC Case Cooling Fans , DC Axial Flow Fans 40x40x15mm 1



Silent CPU 24V PC Case Cooling Fans , DC Axial Flow Fans 40x40x15mm 2



Silent CPU 24V PC Case Cooling Fans , DC Axial Flow Fans 40x40x15mm 3



Silent CPU 24V PC Case Cooling Fans , DC Axial Flow Fans 40x40x15mm 4
