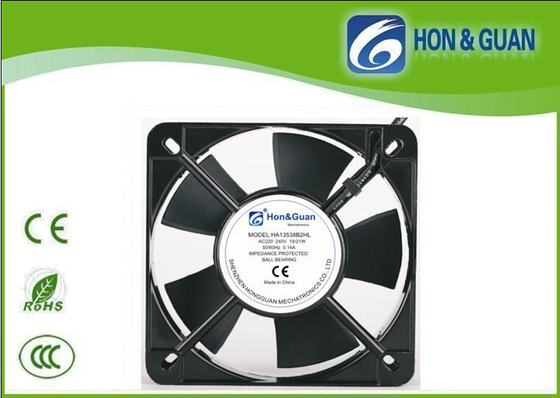

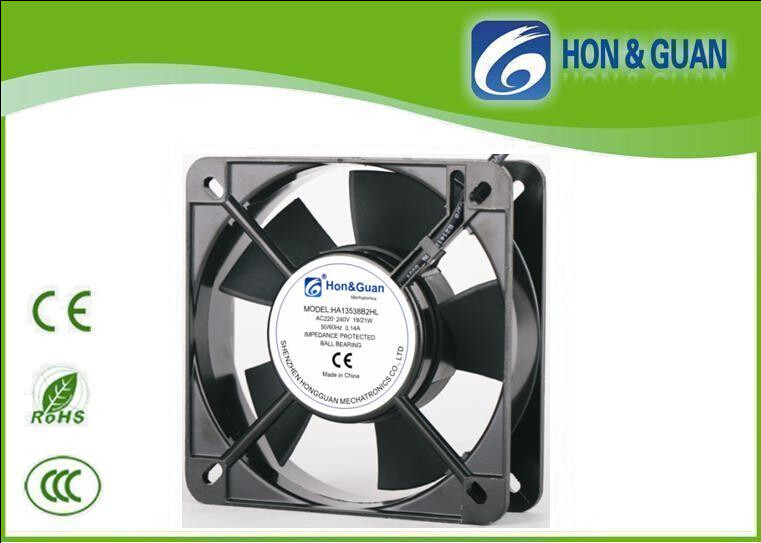

38mm Axial Flow Fan blade design , High Rotation Speed Quiet cool fans

38mm Axial Flow Fan blade design , High Rotation Speed  Quiet cool fans

1. Product Desription

   Product size:135*135*38mm

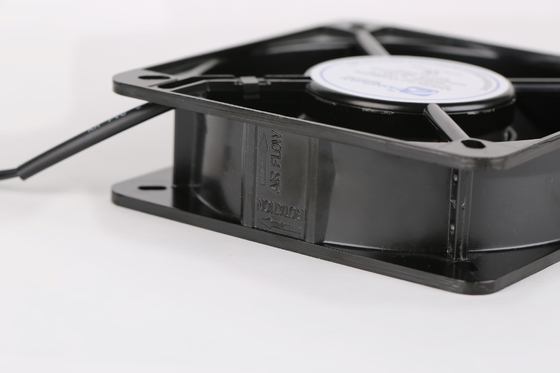

   Frame: Aluminum Alloy
   Impeller: PBT (UL: 94V-0)
   Motor protection: Impedance protect.
   Wire type: -AT Terminal / -AW Wires

   Working temperature:
   Ball bearing: -30 ℃~75℃
   Sleeve bearing: -10℃~70℃

   Net Weight: 320g

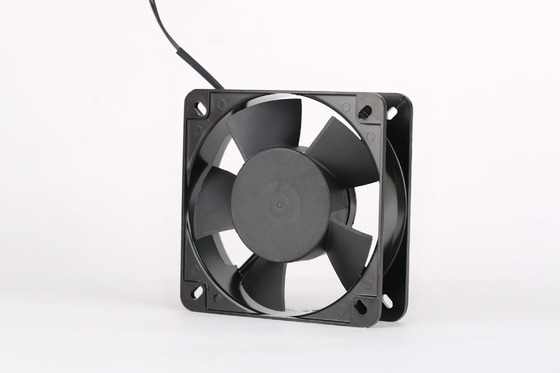

2800RPM High Rotation Speed, 120CFM Quiet 135x135x38mm 13538 Axial Flow Fan

2. Features

• Compact
• Maintenance-fee
• Easy to mount
• Low noise level
• Little vibration
• Reliable movement

2800RPM High Rotation Speed, 120CFM Quiet 135x135x38mm 13538 Axial Flow Fan

3. Application

135*135*38mm Axial flow fan is mainly used for ground control, equipment, electronic equipment, medical equipment, computers, power supplies, welding machines, packaging, printing equipment, satellite communications, CNC, machinery and office automation products such as ventilation and cooling purposes.

4. Performance sheet

i) If you want another rpm or voltage or special functionm please contact with us directly.

ii) Products have a detail in the approval sheet.

iii) Specifications are subject to change without notice.

5. Product Safety Test

    ① Drop Test

         In minimal packing, fan withstands each one drop of three faces from 30cm distance height onto 10mm thickness of wooden board

    ② Locked rotor protection

         Impedence of motor winding protects fan from fire in 72hours of locked rotor condition at the rated voltage

    ③ Dielectric Strength

        Fan can withstand 2500v 2sec 1mA between housing and two leads wire

6. We also produce other sizes like 8025 8038 9225 9238 11025 12025 12038 17238 17250 17150 18060 20060 22060 25489
