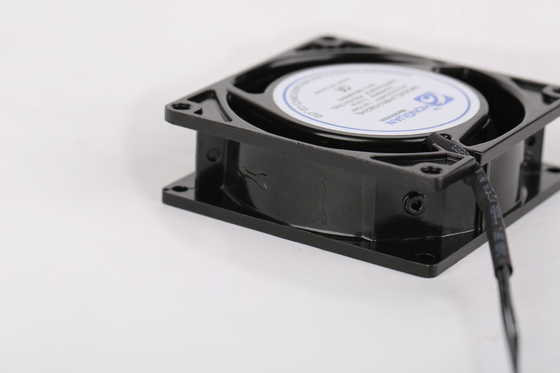

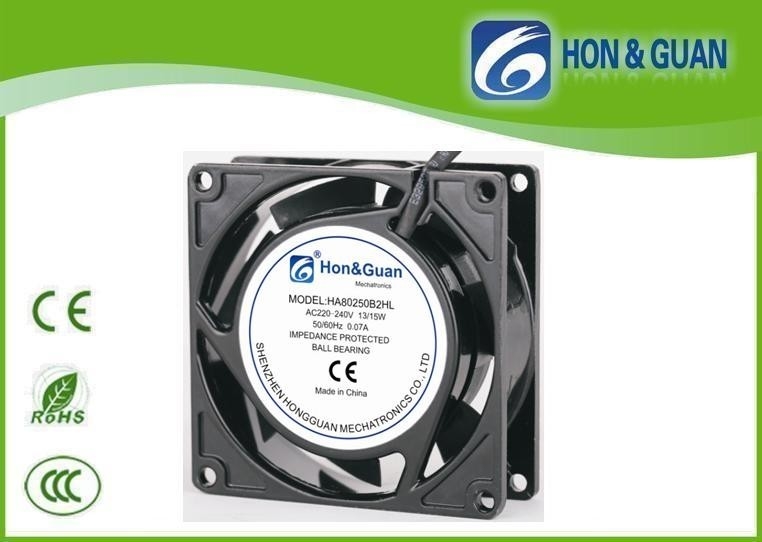

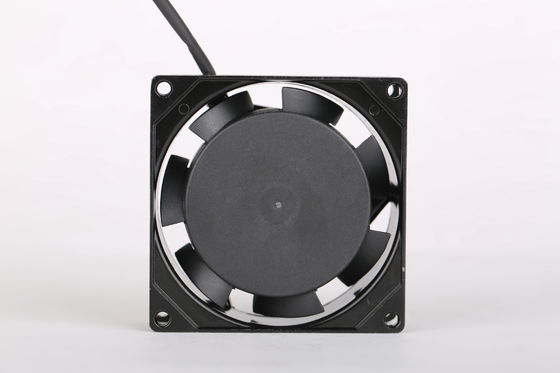

Compact Industrial CPU Axial Flow Fan 80X80X25mm 8025 220V

Compact Industrial CPU Axial Flow Fan  80X80X25mm 8025 22

1. Product Desription

   Product size: 80*80*25 mm
   Frame: Aluminum Alloy
   Impeller: PBT (UL: 94V-0)
   Motor protection: Impedance protect.
   Wire type: -AT Terminal / -AW Wires

   Working temperature:
   Ball bearing: -30 ℃~75℃
   Sleeve bearing: -10℃~70℃

   Net Weight: 230g

220V Compact Industrial 80*80*25mm 8025 Industrial CPU Axial Flow Fan

2. Features

• Compact
• Maintenance-fee
• Easy to mount
• Low noise level
• Little vibration
• Reliable movement

220V Compact Industrial 80*80*25mm 8025 Industrial CPU Axial Flow Fan

3. Application

80*80*25mm axial flow fan is mainly used for ground control, equipment, electronic equipment, medical equipment, computers, power supplies, welding machines, packaging, printing equipment, satellite communications, CNC, machinery and office automation products such as ventilation and cooling purposes.

220V Compact Industrial 80*80*25mm 8025 Industrial CPU Axial Flow Fan

4. Performance sheet

i) If you want another rpm or voltage or special functionm please contact with us directly.

ii) Products have a detail in the approval sheet.

iii) Specifications are subject to change without notice.

220V Compact Industrial 80*80*25mm 8025 Industrial CPU Axial Flow Fan

5. Product Safety Test

    ① Drop Test

         In minimal packing, fan withstands each one drop of three faces from 30cm distance height onto 10mm thickness of wooden board

    ② Locked rotor protection

         Impedence of motor winding protects fan from fire in 72hours of locked rotor condition at the rated voltage

    ③Dielectric Strength

        Fan can withstand 2500v 2sec 1mA between housing and two leads wire

220V Compact Industrial 80*80*25mm 8025 Industrial CPU Axial Flow Fan

6. More pictures

    AC FAN OVERVIEW

    2015 ARBS SHOW IN MELBOURNE

    2015 AHR SHOW IN CHICAGO

   2014CRH SHOW IN BEIJING

220V Compact Industrial 80*80*25mm 8025 Industrial CPU Axial Cooling Fan

7. Company Overview

220V Compact Industrial 80*80*25mm 8025 Industrial CPU Axial Flow Fan

8. Company introduction

Shenzhen HongGuan Mechatronics Co., Ltd. (short for Hon&Guan) is a professional manufacturer of duct fans and cooling fans for many years.

With a floor area of 8,000 square feet and over 8 production lines, we have a monthly capacity of 300,000pcs cooling fans and 100,000pcs of duct fans. And all the production lines are strictly processed under guide line of ISO9001.

During the long-term practice, we have established an excellent technical and development team with rich experience and advanced technology. We pursue the most cost-effective solutions to meet market demands. Our quality as well as each technical performance index reaches an advanced level in the world. Our products own characteristics of nice appearance, compact structure, finely processed, high wind pressure, large air flow, light weight, thin in depth, low noise, long service life, high adaptability to environment, low price and good reliability, which are very favored by users.

We are well prepared to meet what you need!

220V Compact Industrial 80*80*25mm 8025 Industrial CPU Axial Flow Fan

9. We also produce other sizes like 8038 9225 9238 11025 12025 12038 13538 17238 17250 17150 18060 20060 22060 25489

    We are sincerely waiting for your inquiry about our products
