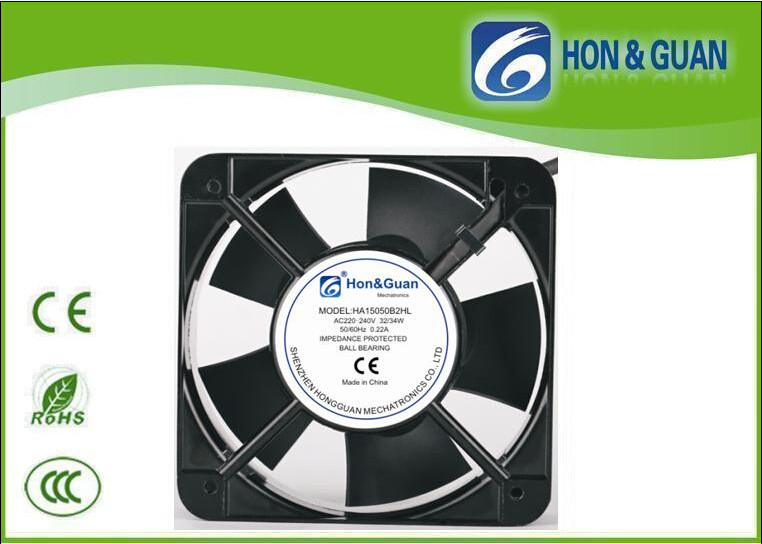

High Pressure Axial Fan AW Wires 230CFM For 6" CNC Machinery

High Pressure Axial Fan AW Wires 230CFM For 6" CNC Machinery

1. Product Desription

   Product size:150*150*51mm
   Frame: Aluminum Alloy
   Impeller: PBT (UL: 94V-0)
   Motor protection: Impedance protect.
   Wire type: -AT Terminal / -AW Wires

   Working temperature:
   Ball bearing: -30 ℃~75℃
   Sleeve bearing: -10℃~70℃

   Net Weight: 900g

2. Features

• Compact
• Maintenance-fee
• Easy to mount
• Low noise level
• Little vibration
• Reliable movement

3. Application

Axial cooling fan is mainly used for ground control, equipment, electronic equipment, medical equipment, computers, power supplies, welding machines, packaging, printing equipment, satellite communications, CNC, machinery and office automation products such as ventilation and cooling purposes.

4. Performance sheet

i) If you want another rpm or voltage or special functionm please contact with us directly.

ii) Products have a detail in the approval sheet.

iii) Specifications are subject to change without notice.

5. Product Safety Test

    ① Drop Test

         In minimal packing, fan withstands each one drop of three faces from 30cm distance height onto 10mm thickness of wooden board

    ② Locked rotor protection

         Impedence of motor winding protects fan from fire in 72hours of locked rotor condition at the rated voltage

    ③ Dielectric Strength

        Fan can withstand 2500v 2sec 1mA between housing and two leads wire

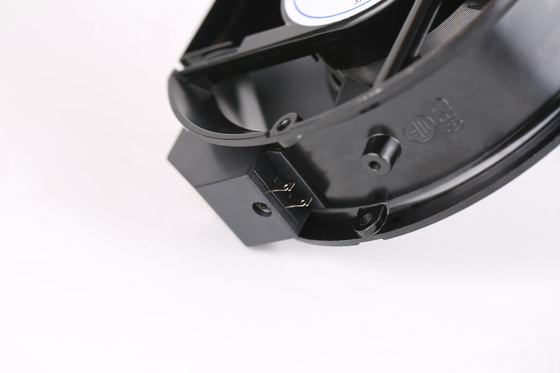

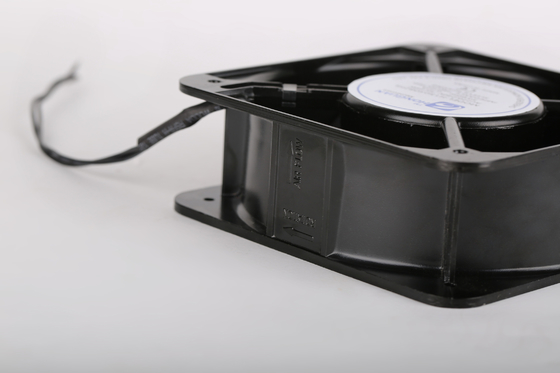

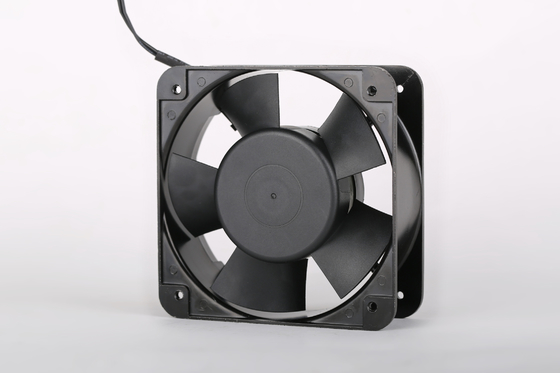

6. More pictures

7. Company introduction

Shenzhen HongGuan Mechatronics Co., Ltd. (short for Hon&Guan) is a professional manufacturer of duct fans and cooling fans for many years.

With a floor area of 8,000 square feet and over 8 production lines, we have a monthly capacity of 300,000pcs cooling fans and 100,000pcs of duct fans. And all the production lines are strictly processed under guide line of ISO9001.

During the long-term practice, we have established an excellent technical and development team with rich experience and advanced technology. We pursue the most cost-effective solutions to meet market demands. Our quality as well as each technical performance index reaches an advanced level in the world. Our products own characteristics of nice appearance, compact structure, finely processed, high wind pressure, large air flow, light weight, thin in depth, low noise, long service life, high adaptability to environment, low price and good reliability, which are very favored by users.

We are well prepared to meet what you need!
