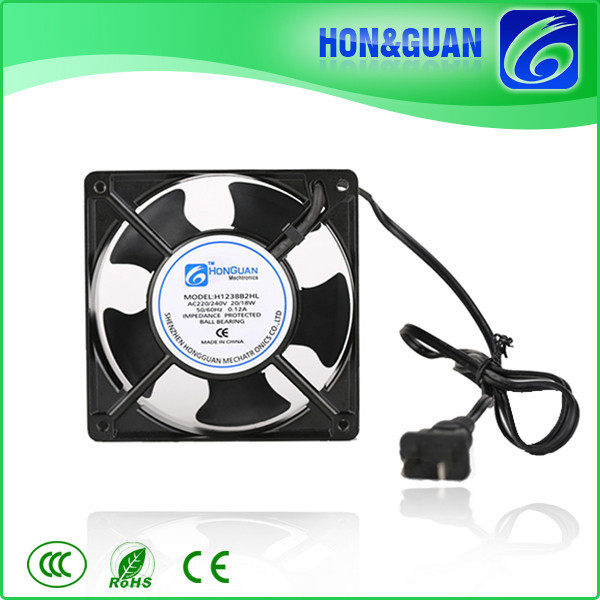

110V / 220V Axial Ventilation Fan , IP44 industrial Electronics Cooling Fan

Large Image : 110V / 220V Axial Ventilation Fan , IP44 industrial Electronics Cooling Fan Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	Hon&Guan
Certification:	CE CCC
Model Number:	H12038

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Packaging Details:	40pcs in one carton, size 45.52728.2cm.
Delivery Time:	10~15 working days
Supply Ability:	12000pcs per day

Contact Now

Detailed Product Description

Type:	Axial Flow Fan	Size:	120x120x38mm
Electric Current:	AC	Voltage:	110V / 220V / 380V
Frame Material:	Aluminum Alloy	Impeller Material:	PBT
Air Flow:	60~115 CFM	Rotate Speed:	1800~3100 RPM
High Light:	axial vane fan , axial blower fan

110V / 220V Axial Ventilation Fan , IP44 industrial Electronics Cooling Fan

Description:

Size 120*120*38mm AC axial flow cooling fan.
Waterproof, brushless ac motor fan, air-conditioner fan, LCD display fan, BBQ machine fan, server cabinet fan.
Stable quality, big airflow, low noise.
Both ball and sleeve bearing choose, copper wire.
Motor protection: Impedance protect.
Wire type: -AT Terminal / -AW Wires
Working temperature:
Ball bearing: -30°C~75°C
Sleeve bearing: -10°C~70°C
Protection level: IP44
Net weight: 530g

Specification:

Model	Bearing	Voltage	Frequency	Current	Power	Speed	Air Flow	Static Pressure	Noise
		(V)	(Hz)	(A)	(W)	(RPM)	(CFM)	(mmH2O)	dB(A)
H12038B1H	ball	110	60/50	0.225/0.268	15/18	3000/2600	113/91	7.62/6.35	45/40
H12038S1H	sleeve
H12038B2H	ball	220	50/60	0.131/0.115	18/15	2550/2600	90/91	6.30/6.35	39/40
H12038S2H	sleeve
H12038B3H	ball	330	50/60	0.066/0.07	16/17	2600/2600	91/91	6.35/6.35	40/40
H12038S3H	sleeve

Dimensions drawing:

110V / 220V Axial Ventilation Fan , IP44 industrial Electronics Cooling Fan 0

Performance Curve:

110V / 220V Axial Ventilation Fan , IP44 industrial Electronics Cooling Fan 1

Application:

Air cooling for various equipments such as air-conditioner, medical equipments, automatic control equipments, communication equipments, electrical LCD LED, BBQ machines and so on.

(The above specifications are normal types, for more types please contact us, we can design and produce for you.)
