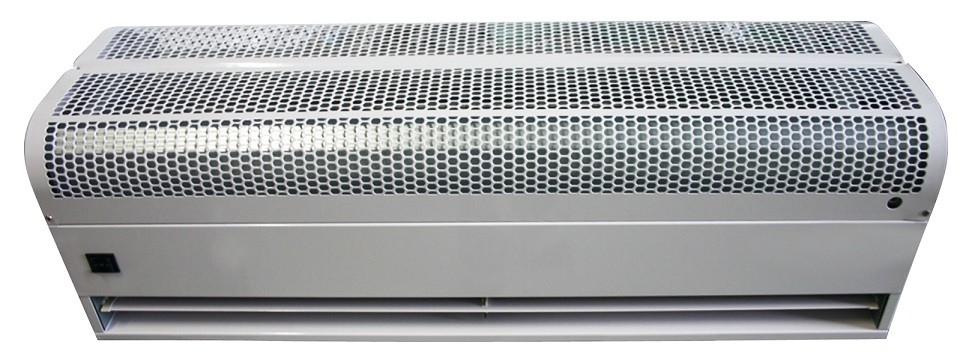

China Best Hot Water Air Curain

1. Water source hot air curtain, can be used both in winter and in summer
2. Safety water heating coil with high heat dispersion
3. Casing made from poder-coated metal, with button control.
4. Built-in condensate water cup, alternating warm and cold wind for winter and summer use.
5. Double sided water inflow points allows convertibility for installation in different locations.
6. Available sizes: 900mm, 1200mm, 1500mm
v id="StyleTableProd">

Model			WWH-09	WWH-12	WWH-15
Power (V/Hz)			220/50-60	220/50-60	220/50-60
Input power (W)			160	200	230
Air speed (m/s)		Hi	11	11	11
		Lo	9	9	9
Air volume (m 3 /h)		Hi	1450	1930	2420
		Lo	1050	1400	1750
Noise level (db)			< 55	< 57	< 59
Net weight (kg)			20	25	32
Temperature of water 100-65° C	Water flow speed (m/s)		0.49	0.65	0.82
	Water volume (kg/h)		878	1170	1460
	Water resistance (Pa)		2036	2715	3390
	Temperature of outlet air (° C)		53	53	53
	Heat dispersing volume (KW)		20	28	36
Temperature of water 90-60° C	Water flow speed (m/s)		0.39	0.52	0.65
	Water volume (kg/h)		698	930	1160
	Water resistance (Pa)		1620	2160	2700
	Temperature of outlet air (° C)		49	49	49
	Heat dispersing volume (KW)		16	21	27
Temperature of water 85-55° C	Water flow speed (m/s)		0.45	0.6	0.75
	Water volume (kg/h)		805	1070	1330
	Water resistance (Pa)		1870	2500	3115
	Temperature of outlet air (° C)		47	47	47
	Heat dispersing volume (KW)		13	17	21
SIZE(mm)			900*333*280	1200*333*280	1500*333*280
