Outdoor Curtain LED Display Screen With H110º/ V70º View Angle

Large Image : Outdoor Curtain LED Display Screen With H110º/ V70º View Angle Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	YUCHIP
Certification:	CE,ROHS,FCC,EMC
Model Number:	OC-21.33D

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	Negotiable
Packaging Details:	Flight Case,Wooden Case,Strong Carton Box
Delivery Time:	15-20 Working Days
Payment Terms:	T/T
Supply Ability:	5000㎡/Month

Contact Now

Detailed Product Description

High Light:

outdoor led curtain display

led curtain screen

Outdoor Curtain LED Display Screen With H110º/ V70º View Angle

Quick Detail:

1, Light transmittance: 35%
2, IP65 waterproof for outdoor environment.
3, P21.33 1R1G1B;
4, LED module: 512mm x 128mm;
5, LED cabinet: 1024mm x 1024mm x 90mm;
6, Cabient weight: 35kg;

Description:

1. P21.33 Outdoor curtain LED screen is featured as fast assembly and labour cost saving:It's much easier and quicker to install because of light weight design;
2. P21.33 curtain LED display is of IP65,Waterproof and dustproof for outdoor use;
3. Outdoor curtain LED module is of high brightness up to 8000cd/㎡ to deliver clear and vivid image even under direct sunshine;
4. Working with Linsn or Novastar multi function card, outdoor LED screen realize auomatic brightness adjustmentfor day and night use;
5. Curtain LED display is of ultra light weight at about 30kg lighter weight compared with stanard outdoor LED displays;
6. Outdoor curtain LED screen's ligher weight features makes the LED billboard project saves cost in installation steel structure also reduce structure load bearing,suitable for large size LED billbaords;

Applications:

Huge LED Display
Large Size LED Billboard
Big Street LED Billboards
Wall Mounted LED Screen
Shopping Mall LED Display
Super Market LED Display Screen
Outdoor Curtain LED Display
Outdoor Curtain LED Screen
Outdoor Waterproof Curtain LED Display
Lighter Weight Roof Building Curtain LED Display

Specifications :

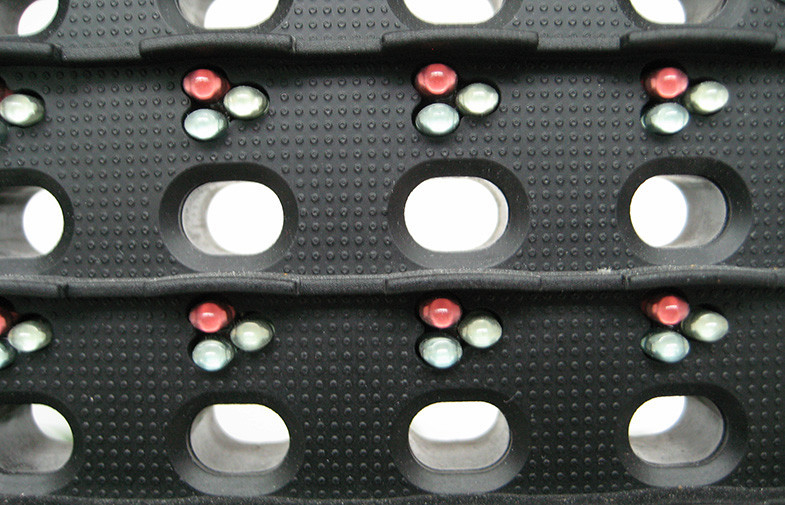

LED Module Parameter
Pixel pitch (mm)	21.33
Pixel configuration	1R1G1B
Encapsulation	DIP346
Colors matches	6:3:1
Module resolution (pixels)	24 x 6
Module pixel	144
Module size (mm)	512 x 128

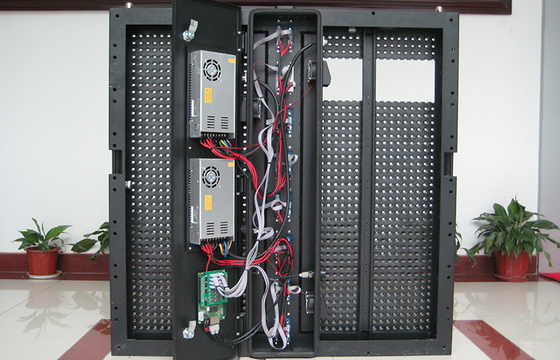

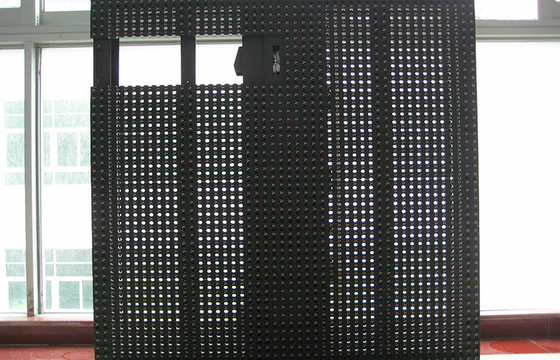

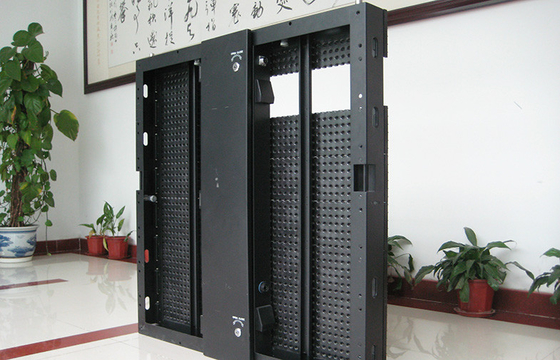

LED CABINET SPECIFICATION
Cabinet size (mm)	1024 x 1024 x 90
Cabinet resolution (pixels)	48 x 48
Cabinet pixels (pixels)	2304
Cabinet material	Steel
Cabinet weight (kg)	30
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2)	2209
Brightness(cd/m2)	≥7000 (adjustable)
Brightness adjusted	100 grade by software or by Auto-optic induced
View angle	Horizontal 110°; Vertical 70°
Best viewing distance (m)	≥20m
Communication distance(m)	<100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km
Display work method	Static
LED driving method	Constant driving current
Light transmittance	35%
Color contrast ratio	1800:1
Gray Grade	16bit
Display Color	439, 804, 651, 110
Refresh Frequency (Hz)	≥1200
Picture display method	Intellective control technology , test-itself technology , correct technology, Synchronization Control
Input signal	DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting )
System operating	WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level	IP65
Working temperature(ºC)	-20～+60
Stored temperature (ºC)	-30～+80
Operation humidity(RH)	0-95%
Display Lifetime(hours)	10 years or more( natural environment) 100000 hours( ideal environment)
Maintenance	Rear side
Working Voltage	AC110 / AC220V±10% 47～63HZ
Power consumption	Max: 850W/㎡ ; Ave:300W/㎡
Out of controlled dot	≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one)

Competitive advantages:

1.Ultra light weight design:P21.33 outdoor curtain LED screen is of 20-30kg per square meter design,quicker and easier assembly;
2.High brightness:Up to 8000cd/㎡ delivers a vivid image and video even under direct sunshine;
3.Waterproof for outdoor use:IP65 both front and rear side,available for outdoor and indoor use;
4.Low windage: It reduce windage and can save steel structure costs because of it’s ventilation;
5.Light transmittance:Up to 15%-40% transmittance and good heat dissipation,the LED screen not need air conditioning system and save energy,save cost;
6.Applied for installation site that needs light weight outdoor LED display like roof building,single steel pole etc.
