Product Details:
Payment & Shipping Terms:
|
Product Name: | Titan 1 Series Air Door | Application: | For Door, Entryway |
---|---|---|---|
Supplied: | 120v- 50/60Hz Or 220v-50/60Hz | Type: | Single Cooling |
Length: | 24inch, 36inch, 40inch, 48inch, 60inch, 72inch, 96inch | Color: | White |
Air Speed: | 9-11m/s, 10-13m/s | ||
High Light: | air curtains for doors,air curtains for restaurants |

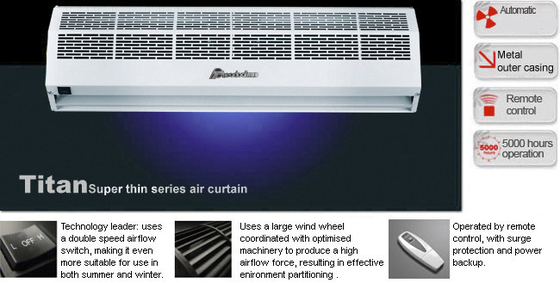

Titan 1 Series Theodoor Air Curtain, Metal Cover By Super Thin Design
Specifications:
Model |
Size (mm) |
Volt./ Freq. |
Motor power(W) |
Air volume (m3/h) |
Air speed (m/s) |
Noise (dB) |
N.W(kg) |
|||
Hi |
Lo |
Hi |
Lo |
Hi |
Lo |
|||||
FM-1206SA1 |
600x180x215 |
220v~ 50Hz |
140 |
90 |
840 |
680 |
9-11 |
55 |
54 |
8.5 |
FM-1209SA1 |
900x180x215 |
160 |
110 |
1400 |
1100 |
57 |
55 |
10.5 |
||
FM-1210SA1 |
1000x180x215 |
180 |
130 |
1600 |
1300 |
58 |
56 |
11.5 |
||
FM-1212SA1 |
1200x180x215 |
200 |
150 |
1900 |
1600 |
58 |
56 |
13.5 |
||
FM-1215SA1 |
1500x180x215 |
230 |
180 |
2500 |
2000 |
59 |
57 |
15 |
||
FM-1218SA1 |
1800x180x215 |
300 |
250 |
3200 |
2600 |
60 |
58 |
20 |
||
FM-1220SA1 |
2000x180x215 |
350 |
300 |
3600 |
2900 |
61 |
59 |
22 |
||
FM-1509SA1 |
900x220x260 |
220v~ 50Hz |
230 |
180 |
2000 |
1600 |
10-13 |
67 |
65 |
15 |
FM-1512SA1 |
1200x220x260 |
350 |
300 |
2800 |
2200 |
69 |
67 |
19 |
||
FM-1515SA1 |
1200x220x260 |
430 |
380 |
3600 |
2800 |
71 |
69 |
23 |
Feature
1. Compact design with metal cover, easy installation and simple maintenance.
2. The optimized fan wheel provides stable & even air flow. It has large air volume and low noise
performance.
3. The reliable designed motor, with overheating protector and has safety operation of 5000 hours
continuously without defect.
4. Adopting remote control or touch switch, it’s able to adjust high and low air velocity.
5. Two series available in different air velocity: 9-11m/s, 10-13m/s; Suitable for application in cafeteria,
bakery, waiting room, restaurants, retail shop, department store, sports center and so on.
Theodoor Air curtain is installed above the entryway of store, restaurant, hotel…etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air-conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.
