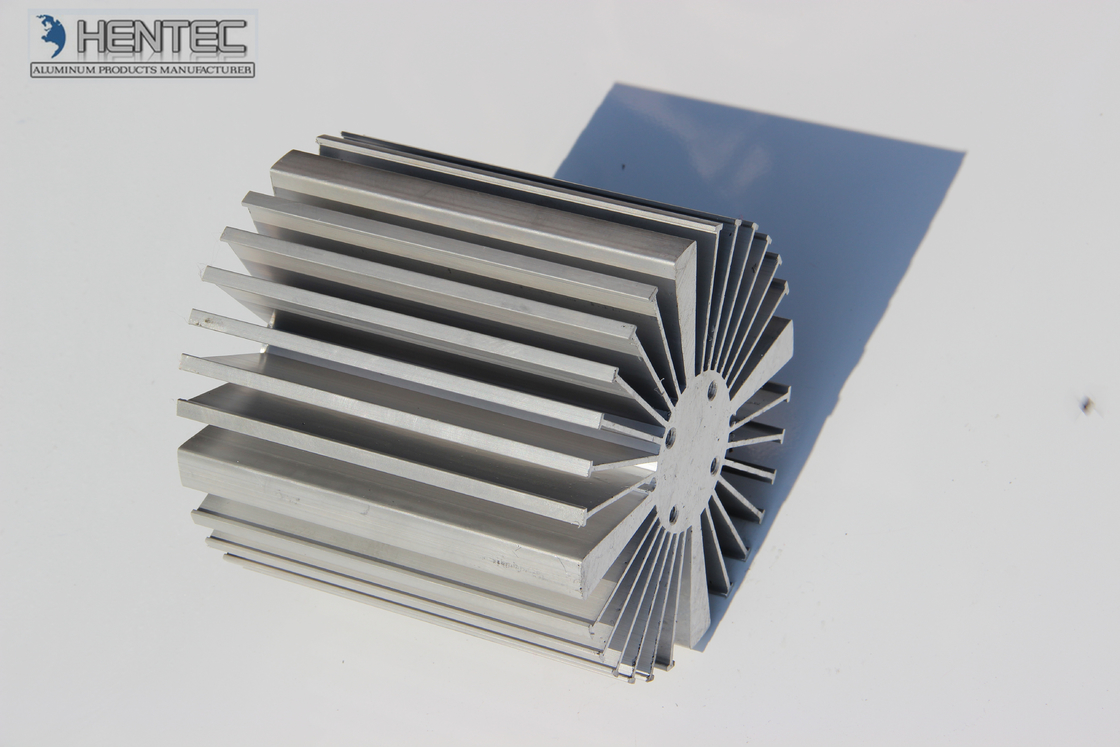

6060 - T5 aluminium heat sink profiles with finished machining , anodized
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Heat Sink | Application: | Led Light |
|---|---|---|---|
| Shape: | Irregular | Alloy: | 6061 |
| Temper: | T6 | Film Thickness: | 10-20 Um |
| Standard: | ROHS/SGS | Surface: | Mill Finished |
| High Light: | extruded aluminum heat sink,aluminum heatsink extrusion profiles |
||
Descrition:
Hentec Industry is dedicated to the development, manufacture and marketing of high-performance aluminum extrusion profiles . We pride ourselves on rapid sampling, flexible production methodologies and world-class technical support to our customers. We have significant experience in the thermal management arena and look forward to working with our customers, wherever they are in the world, and however demanding their needs are. And now, our products have been sold in more than 1000 global customers.
|
Item |
6060 - T5 Aluminum Heat Sink , With Finished Machining , Anodized |
|
Characteristics of mechanics |
1, Tensile strength: ≥ 205 N/mm2 |
|
2, Yield strength: ≥ 110 Mpa |
|
|
3, Hardness(HW): ≥ 8 |
|
|
Appearance |
1, No obvious Crack, Scratch , Peeling, Corrosion and air bubble |
|
2, Hang mark is accepted at two end of the profiles, but should less than 10mm |
|
|
Application |
1, Architecture: Windows and Doors, Curtain Walls, Shutter, Louver, Barrier, Fence, Ceiling, Handrail, balustrades, showcase, Partition |
|
2, Industrial: tube, pipe, LED strip, heat-sink, motor housing, fins, tent, solar, Vehicle beam, TV Frame |
|
|
3, Furniture: Chair, Wardrobe, Cabinet, Ladder, Closet, Tile Trim |
|
|
Products Feature |
1, Environmentally Friendly, Elegant appearance |
|
2, Corrosion-Resistant, Abrasion Resistant, High Weather Resistant |
|
|
3, Air-Proof, Water-Proof, Anti-Aging, Durable, Shining |
Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
We can offer professional Manufacturing and exporting service, OEM/ODM for Metal & Plastic parts in China. All the parts manufactured by CNC Lathe & Milling Machine Center.
