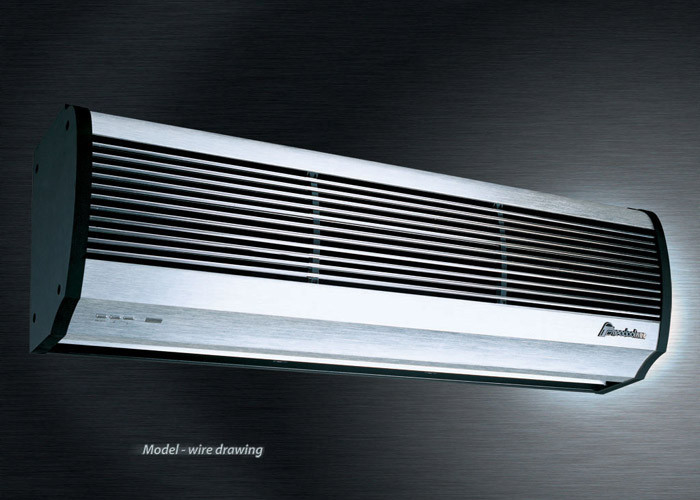

White Low Wind Resistance Electric Warm Air Curtain Heater 180cm / 150cm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 5G Series Hot Wind Air Curtain | Application: | For Door, Entryway |
|---|---|---|---|
| Supplied: | 220v Or 380V-50Hz | Type: | Cool & Heating Air Curtain |
| Length: | 90cm, 120cm, 150cm, 180cm | Color: | White |
| Air Speed: | 8.5-9.5m/s | Standard: | CCC, CE |
| High Light: | door heaters air curtain,electric air curtain heaters |
||
5G Series Heated Air Curtain Made From Aluminum Cover With R/C
Specifications:
|
Model |
Size (mm) |
Volt./ Freq. |
Motor Power (W) |
PTC heater Power (kW) |
Air volume (m3/h) |
Air speed (m/s) |
Noise (dB) |
N.W (kg) |
||||||
|
Hi |
Lo |
|||||||||||||
|
Hi |
low |
H |
M |
L |
||||||||||
|
RM-1209S-3D/Y5G |
900x190x260 |
380v~ 50Hz |
160 |
110 |
6 |
4 |
2 |
1200 |
8.5-9.5 |
57 |
55 |
13.5 |
||
|
RM-1212S-3D/Y5G |
1200x190x260 |
200 |
150 |
8 |
5 |
3 |
1700 |
58 |
56 |
16 |
||||
|
RM-1215S-3D/Y5G |
1500x190x260 |
230 |
180 |
10 |
7 |
3 |
2200 |
59 |
57 |
18.5 |
||||
|
RM-1218S-3D/Y5G |
1800x190x260 |
300 |
250 |
12 |
8 |
4 |
2700 |
60 |
58 |
24 |
||||
|
RM-1209S-D/Y5G |
900x190x260 |
220v~ 50Hz |
160 |
110 |
6 |
4 |
2 |
1200 |
8.5-9.5 |
57 |
55 |
13.5 |
||
|
RM-1212S-D/Y5G |
1200x190x260 |
200 |
150 |
8 |
5 |
3 |
1700 |
58 |
56 |
16 |
||||
|
RM-1215S-D/Y5G |
1500x190x260 |
230 |
180 |
10 |
7 |
3 |
2200 |
59 |
57 |
18.5 |
||||
Feature
Classical + Luxury
Classical & Luxurious design with Silver sand painted on Aluminum alloy outer cover; 3D appearance; new stainless strip inlet panel; Lasting clean body.
High Efficiency
Super quiet non-equidistant fan wheel, Steady and homogeneous wind outlet,
Large wind volume, Low noise, besides, High & Low power level of heater;
PTC heater: uncharged, high performance, safe, prompt temperature rise, low wind resistance and long using life;
Low noise updated air conditioner motor, safe and optimized performance, running for 5000 hours consistently without failure;
Safety & Reliability
Triplicate Security Protection: Thermal protector, Varistor and fuse;
Automatic postpone safety protection when power off;
