Non - oxidation Centrifugal Hot Wind Heated Air Curtains For Doors 11-14m/s
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Centrifugal Hot Wind Air Curtain | Application: | For Door |
|---|---|---|---|
| Supplied: | 380V-50Hz | Type: | Cool & Heating Air Curtain |
| Length: | 36inch, 48inch, 60inch | Color: | White Or Stainless Steel |
| Air Speed: | 11-14m/s | ||
| High Light: | door heaters air curtain,heated air curtains for doors |
||

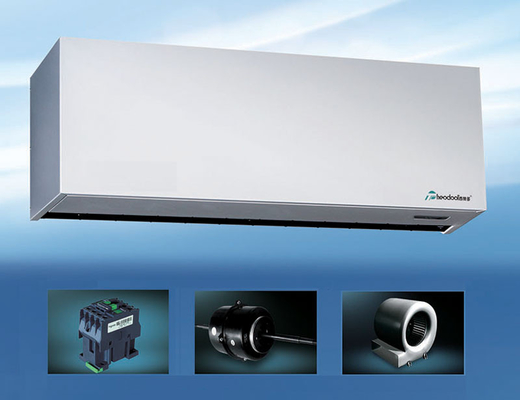

Centrifugal Hot Wind Air Curtain
Specifications:
|
Model |
Size (mm) |
Volt./ Freq. |
Motor Power (W) |
PTC heater Power (kW) |
Air volume (m3/h) |
Air speed (m/s) |
Temp. rising (K) |
N.W (kg) |
|
|
Hi |
low |
||||||||
|
RM-4009S-3D/Y |
900x350x240 |
380v~ 50Hz |
410 |
350 |
12 |
1980 |
11-14 |
40-55 |
26 |
|
RM-4012S-3D/Y |
1200x350x240 |
520 |
460 |
16 |
2690 |
40-55 |
32.5 |
||
|
RM-4015S-3D/Y |
1500x350x240 |
670 |
610 |
20 |
3390 |
40-55 |
41.5 |
||
Feature:
Cooling (Normal air) or heating air can be chosen separately by remote control, suitable in all seasons.
Whole metal outer cover, high performance of fireproof; Top inlet and bottom wind outlet; Simple style
design.
High Efficiency High heat, long life PTC heater, High conversion efficiency, Safety without light fire,
Non-oxidation.
Quite centrifugal fan wheel and optimized motor ensure strong wind and prominent operation.
Safety & Reliability
Triplicate Security Protection: Thermal protector, Varistor and fuse;
Automatic postpone safety protection when power off;
