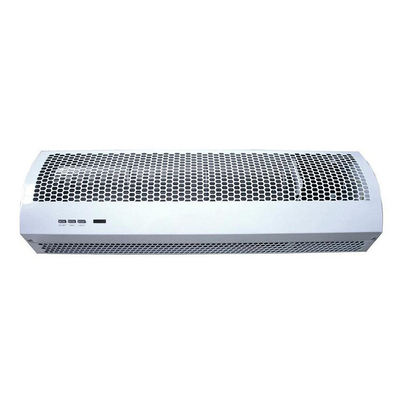

800mm Window And Door Slim Hot Air Curtain For Home And Light Commmercial

WINTECO air curtain is a product used to prevent air or contaminants from moving from one open space to another. Air curtain can create a continuous broad stream of air circulated across a doorway of a conditioned space. It reduces penetration of insects and unconditioned air into a conditioned space by forcing an air stream over the entire entrance. The air stream layer moves with a velocity and angle such that any air that tries to penetrate the curtain is entrained, so it is widely used in commercial and industrial places where doors are required to stay open such as hypermarket, shopping malls, shops, cold rooms, loading docks…
WINTECO cross-flow air curtain is with compact design, with one motor in the middle and two fan wheels at side. the air speed can reach 12m/s, and installation height up to 3 meters, suitable for most installation occasions.
WINTECO centrifugal air curtain is with stable high speed motors, installed with at least two motors which creates very high air speed up to 16m/s. it can be installed in any occasions even commercial and industrial places which require high installation height and strong air.
WINTECO heated air curtain are commonly used when supplemental heat is needed for a space, and to reduce the wind chill factor across the opening in colder climates. it is widely used in commercial and industrial places.

SPECIFICATIONS:

800mm slim hot air curtain WCEH-08
Dimension: 800*190*210MM
Power Supply: 220-240V 50-60Hz
Capacity: 4000W
Air flow: 400M3/H
Air speed: 5M/S
Noise level: <45Db
G.W./N.W.: 9/8KGS
Packing: 840*180*250MM
Control mode: button control

FEATURES:

The stainless cover is made from high strength aluminum and engineering plastics, working well in various environment.
The air wheel is made of high-strength fiberglass plastic material,very strong and durable and stable to run.
The high performance pure-copper motors can work 5000 hours continuously without any defects, it creates high speed air flow, to make the air curtain as an invisible door.
The surface of the PTC is without electricity which ensures safety operation and quick temperature rising. the PTC is with auto constant temperature control which can work stably and consume less electricity
The slim electrical heating hot air curtain is especially designed for small openings, suitable for residential and light commercial places, such as home door, kitchen,toll gate service window.

Thank you for your support to WINTECO products, please contact us freely for any more information.
