Commercial Electric Heated Air Curtains / Residential Air Cutter For Door
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | S5 Series Heating Air Curtain | Application: | For Door |
|---|---|---|---|
| Supplied: | 220v Or 380V-50Hz | Type: | Cool & Heating Air Curtain |
| Length: | 90cm, 120cm, 150cm, 180cm | Color: | White, Silver, Champagne, Red |
| Air Speed: | 6-7.5m/s | Standard: | CCC |
| High Light: | door heaters air curtain,electric air curtain heaters |
||

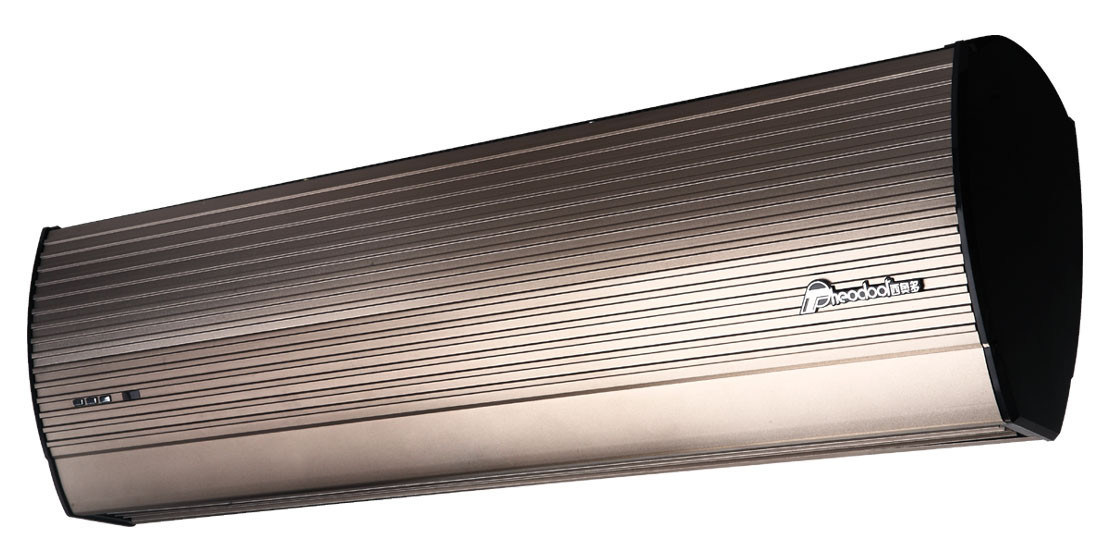

S5 Series Heating Air Curtain
Specifications:
|
Model |
Size (mm) |
Volt./ Freq. |
Motor Power (W) |
PTC heater Power (kW) |
Air volume (m3/h) |
Air speed (m/s) |
Noise (dB) |
N.W (kg) |
||||
|
Hi |
Lo |
|||||||||||
|
Hi |
low |
|||||||||||
|
RM-3509-D/Y |
900x215x280 |
220v~ 50Hz |
160 |
110 |
6 |
1200 |
6-7.5 |
57 |
55 |
13.5 |
|
|
|
RM-3509-3D/Y |
900x215x280 |
380v~ 50Hz |
200 |
150 |
6 |
1200 |
6-7.5 |
58 |
56 |
13.5 |
|
|
|
RM-3512-3D/Y |
1200x215x280 |
230 |
180 |
8 |
1700 |
59 |
57 |
16.5 |
|
|||
|
RM-3515-3D/Y |
1500x215x280 |
300 |
250 |
10 |
2150 |
60 |
58 |
19.5 |
|
|||
Feature
Cooling & heating functions, supply cool and hot air, suitable in all seasons.
1. Aluminum Cross flow fan wheel, fireproof design.
2. Noble appearance, with aluminum covers which without visible screw.
3. PTC Heater- Safety operation and high power output.
4. Creates different temperature Air barriers, which effectively prevents cold airflow and ensure comfortable heating indoor.
5. Two types of airflow- provide heating or normal air, workable in winter or summer time.
6. High and low speed- with wireless Remote Control can meet the needs of various environments.
7. With over-heated protector in heater and Motor, effectively protecting.
8. Delay turnoff protecting device automatically performing when turning off heating air operating state, efficiently extending product life.
9. Optional colors - White, Silver, Champagne, and Red.
