Manual Blind Flat Thermal Insulated Glass For Curtain Wall CCC ISO CE

Manual Blind Flat Thermal Insulated Glass For Curtain Wall CCC ISO CE

Description:

1. Manual Blind: to adopt SNY patent transmission system-Magnetic Control.
2. To pull the handle up or down on the left of blind to adjust light. To glide the right handle up so that the blind unfold completely. To pull the right handle down in order to close the blind entirely
3. To adopt bobbin coil winder and ladder cord in order to make binds lifting and tilting
4. It does not need control system-convenient operation

Application:

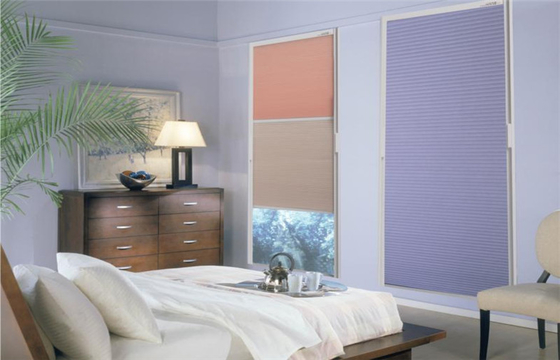

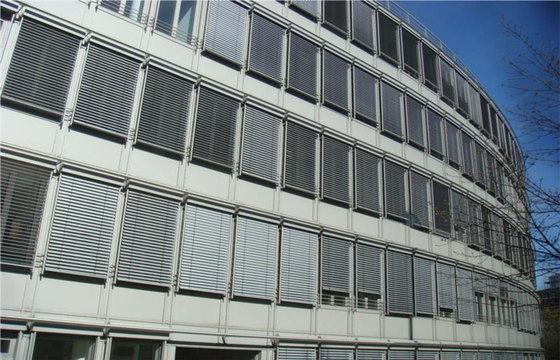

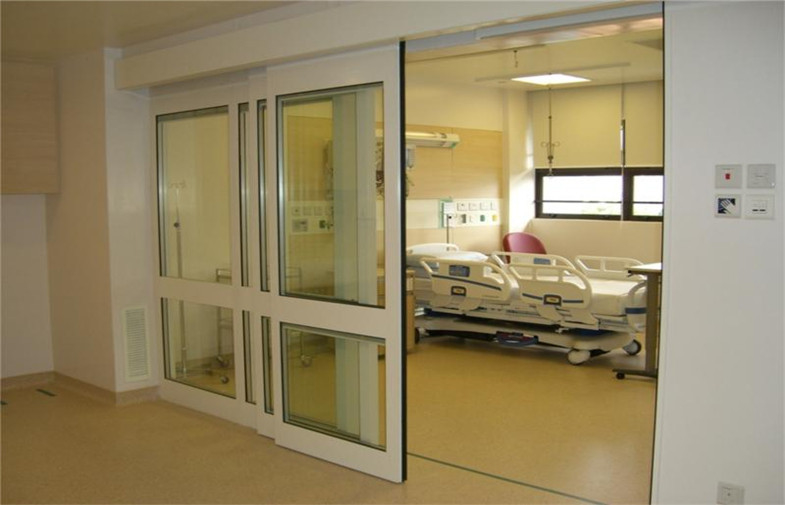

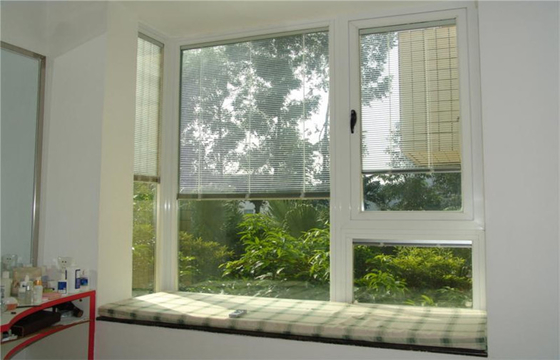

It is used as door, window, partition, curtain wall of hotels, high residential, hospitals, offices, government institutes, studios and mart buildings etc.

Specification:

1. The blind is adopted aluminum magnesium blinds from Israel HOLIS. There are many colors and traceries for your choice, and the honey-comb blind made of non-woven fabric materials is also a good option.

2. Blinds can be adjusted to any angle, allow the perfect amount of light penetrates into the room at any time of day. Meanwhile, it can be raised&dropped to any position you want.

3. Air space: 21mm

4. Slat Width: 16mm     Slat Thickness: 0.22mm

5. Specification of One Breadth of Blind:

Largest Area: 25㎡

Width:0.3m＜1m

Height: 0.3m＜1.5m

6. Glass Thickness

The thickness of glass at which the operating handle is 4mm. The control performance of handle will be affected if it exceeds 4mm.

Quality:

AS/NZS 2208:1996 Safety glazing materials in buildings
In accordance with CE certificate EN1279-1:2004 EN1279-5:2005
In accordance with GB/T 11944-2002 Chinese Insulating Glass Standard

Pass Chinese Safety Glass Compulsory Certification (CCC)

Specifications:
