Aluminum / ABS Cover Residential Air Curtain , Single Cooling Air Door Curtain
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 5G Series Air Curtain In Aluminum Cover | Application: | For Door, Entryway |
|---|---|---|---|
| Supplied: | 120v- 50/60Hz Or 220v-50/60Hz | Type: | Single Cooling |
| Length: | 90cm, 100cm, 120cm, 150cm, 180cm | Color: | White, Silver |
| Air Speed: | 9-11m/s | Standard: | CCC, CE |
| High Light: | 6kw air curtain,over door air curtain |
||

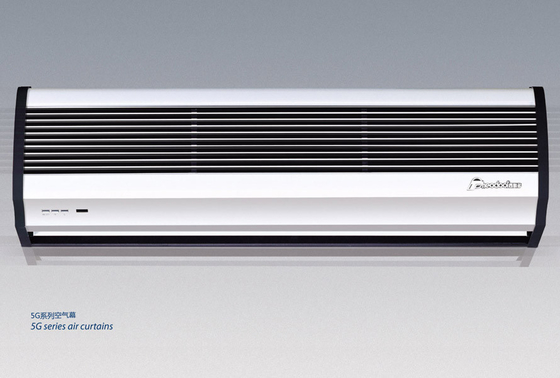

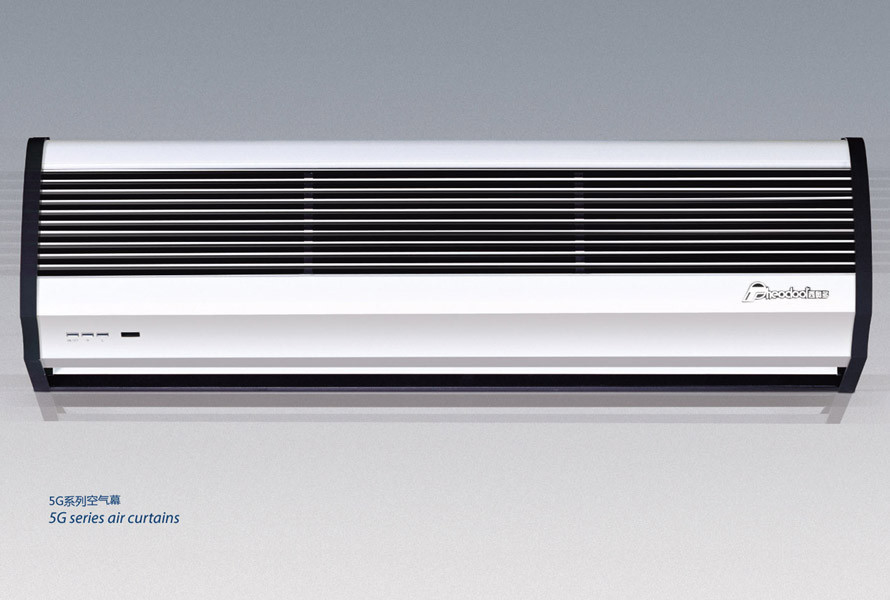

5G Series Residential Air Curtain With Aluminum And ABS Cover
Specifications:
|
Model |
Size (mm) |
Volt./ Freq. |
Motor power(W) |
Air volume (m3/h) |
Air speed (m/s) |
Noise (dB) |
N.W (kg) |
|||
|
Hi |
Lo |
Hi |
Lo |
Hi |
Lo |
|||||
|
FM-1209T/Y5G |
900x190x220 |
220v~ 50Hz |
160 |
110 |
1400 |
1100 |
9-11 |
57 |
55 |
10 |
|
FM-1210T/Y5G |
1000x190x220 |
180 |
130 |
1600 |
1300 |
58 |
56 |
11 |
||
|
FM-1212T/Y5G |
1200x190x220 |
200 |
150 |
1900 |
1600 |
58 |
56 |
12.5 |
||
|
FM-1215T/Y5G |
1500x190x220 |
230 |
180 |
2500 |
2000 |
59 |
57 |
15.5 |
||
|
FM-1218T/Y5G |
1800x190x220 |
300 |
250 |
3200 |
2600 |
60 |
58 |
18 |
||
Feature
Newly design Air curtain from China;
Aluminum cover with 3D body design;
Normal air, offer invisible air door.

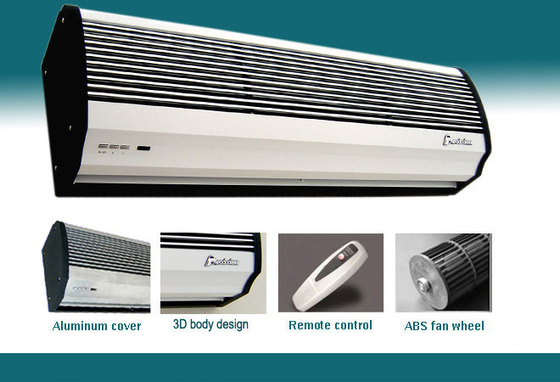

Aluminum cover with 3D body design, covered with black side cover, luxury and classic appearance.
The new bar grille panel and luxury air intake design, be able to maintain a clean body.
Optimized fan wheel design, provide stable and even air curtain. With large air volume and low noise.
Reliable designed motor operates 5000 hours continuously without any defects.
1) Remote control
2) Two speeds
3) Aluminum cover
4) Available size: 900mm, 1,000mm 1,200mm, 1,500mm, 1,800mm
