Entryway 72 Inch Residential Air Curtain / Door Air Cutter With Steel Cover
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Titan 1 Series Air Door | Application: | For Door, Entryway |
|---|---|---|---|
| Supplied: | 120v- 50/60Hz Or 220v-50/60Hz | Type: | Single Cooling |
| Length: | 24inch, 36inch, 40inch, 48inch, 60inch, 72inch, 96inch | Color: | White |
| Air Speed: | 9-11m/s, 10-13m/s | ||
| High Light: | commercial door air curtain,over door air curtain |
||

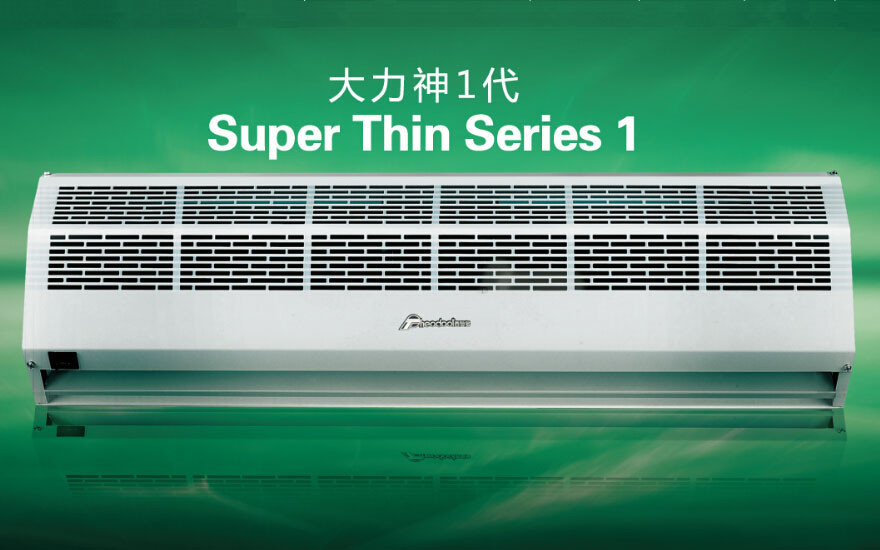

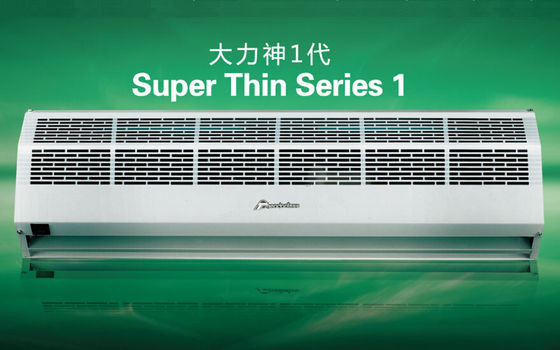

Titan 1 Series Residential Air Curtain or Air door in Steel Cover
Specifications:
|
Model |
Size (mm) |
Volt./ Freq. |
Motor power(W) |
Air volume (m3/h) |
Air speed (m/s) |
Noise (dB) |
N.W(kg) |
|||
|
Hi |
Lo |
Hi |
Lo |
Hi |
Lo |
|||||
|
FM-1206SA1 |
600x180x215 |
220v~ 50Hz |
140 |
90 |
840 |
680 |
9-11 |
55 |
54 |
8.5 |
|
FM-1209SA1 |
900x180x215 |
160 |
110 |
1400 |
1100 |
57 |
55 |
10.5 |
||
|
FM-1210SA1 |
1000x180x215 |
180 |
130 |
1600 |
1300 |
58 |
56 |
11.5 |
||
|
FM-1212SA1 |
1200x180x215 |
200 |
150 |
1900 |
1600 |
58 |
56 |
13.5 |
||
|
FM-1215SA1 |
1500x180x215 |
230 |
180 |
2500 |
2000 |
59 |
57 |
15 |
||
|
FM-1218SA1 |
1800x180x215 |
300 |
250 |
3200 |
2600 |
60 |
58 |
20 |
||
|
FM-1220SA1 |
2000x180x215 |
350 |
300 |
3600 |
2900 |
61 |
59 |
22 |
||
|
FM-1509SA1 |
900x220x260 |
220v~ 50Hz |
230 |
180 |
2000 |
1600 |
10-13 |
67 |
65 |
15 |
|
FM-1512SA1 |
1200x220x260 |
350 |
300 |
2800 |
2200 |
69 |
67 |
19 |
||
|
FM-1515SA1 |
1200x220x260 |
430 |
380 |
3600 |
2800 |
71 |
69 |
23 |
||
Feature
1. Compact design with metal cover, easy installation and simple maintenance.
2. The optimized fan wheel provides stable & even air flow. It has large air volume and low noise
performance.
3. The reliable designed motor, with overheating protector and has safety operation of 5000 hours
continuously without defect.
4. Adopting remote control or touch switch, it’s able to adjust high and low air velocity.
5. Two series available in different air velocity: 9-11m/s, 10-13m/s; Suitable for application in cafeteria,
bakery, waiting room, restaurants, retail shop, department store, sports center and so on.
