Product Details:
Payment & Shipping Terms:
|
Product Name: | Fashion Wind Air Curtain | Application: | For Door, Entryway |
---|---|---|---|
Length: | 90cm, 120cm, 150cm, 180cm, 200cm | Color: | White, Silver, Red |
Air Speed: | 13-16m/s | Air Type: | Single Cooling, Has At Least 2 Motors |
Supplied: | 120v- 50/60Hz Or 220v-50/60Hz | Standard: | CE, UL, SASO |
High Light: | 6kw air curtain,over door air curtain |

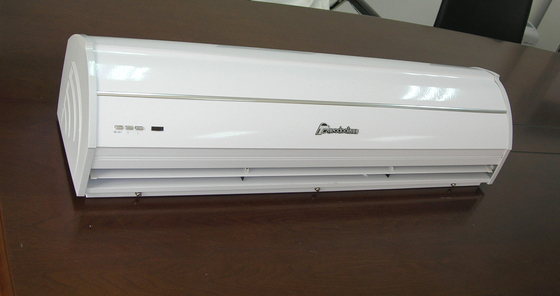

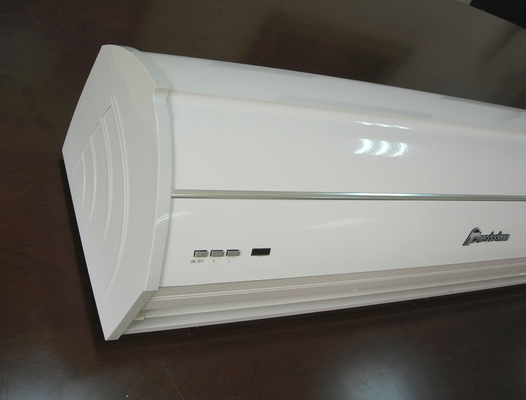

Fashion Wind Air Curtain
Specifications:
Model |
Size (mm) |
Volt./ Freq. |
Input power(W) |
Air flow (m3/h) |
Air speed (m/s) |
Noise (dB) |
N.W (kg) |
|||
Hi |
Lo |
Hi |
Lo |
Hi |
Lo |
|||||
FM-3509-L/Y S5 |
900x220x240 |
220v/50Hz |
230 |
200 |
1100 |
600 |
13-16 |
52 |
49 |
13.5 |
FM-3510-L/Y S5 |
1000x220x240 |
250 |
220 |
1200 |
900 |
52 |
49 |
14 |
||
FM-3512-L/Y S5 |
1200x220x240 |
290 |
260 |
1500 |
1200 |
53 |
50 |
16 |
||
FM-3515-L/Y S5 |
1500x220x240 |
380 |
350 |
1900 |
1500 |
55 |
53 |
20.5 |
||
FM-3518-L/Y S5 |
1800x220x240 |
450 |
420 |
2280 |
1800 |
57 |
54 |
24 |
||
FM-3520-L/Y S5 |
2000x220x240 |
470 |
440 |
2520 |
2100 |
28 |
56 |
27.5 |
Feature:
Aluminum shell
High efficient motor
Quiet centrifugal turbine fan
Adjustable air direction
Remote control
Fashion design
Outside cover without screw, patent design of arc shape appearance, compact & fashion.
Luxury materials
By aluminum cover body and combine with high precise ABS, never rusty and lasting clean; Low noise centrifugal turbine fan, high velocity motor can operate continuously 5000h without failure.
Smart operation
Air inlet from top design, with special air deflector design and air direction is adjustable, adapt to a variety of using environment.
Selectable high and lower air velocity controlled by remote control or key switch.
Applications:
Theodoor Air curtain is installed above the entryway of store, restaurant, hotel…etc. It can effectively
isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location
with air conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable
indoor climate is maintained.
Commercial use |
Supermarket, shopping malls, department store, small store, hotels, restaurants, hospital, |
Industrial use |
Factory, workshop, warehouse, spinning mill, frozen goods factory, paint factory, large |
Competitive Advantage:
Fashion & modern design
Machinery & technology: Advanced mould machines and equipments ensure products performance and
reliability.
Quality control: 100% product performance testing.
Tel: 0086-755-83154271
