Super Large Wind Commercial Air Curtain , Industrial Air Curtain Doors
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Super Large Wind Air Curtain | Application: | Industrial Door |
|---|---|---|---|
| Supplied: | 220v Or 380V-50Hz | Type: | Single Cooling |
| Length: | 90cm, 120cm, 150cm | Color: | Stainless Steel |
| Air Speed: | 16m/s | Standard: | CCC |
| High Light: | garage door air curtain,36 inch air curtain |
||

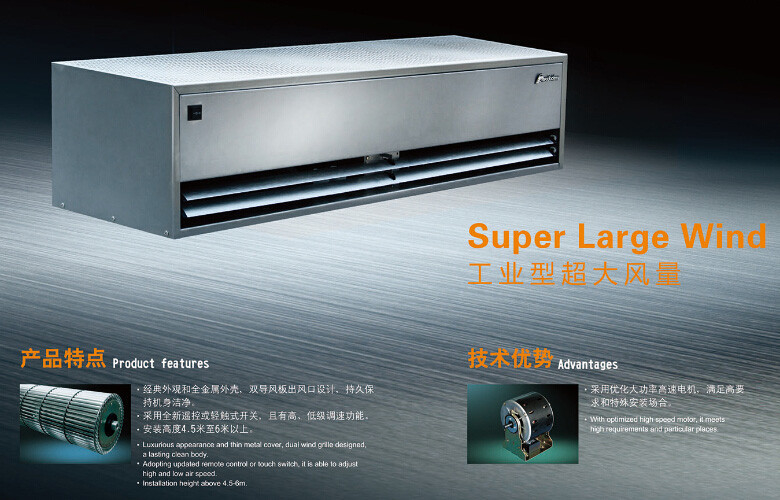

Stainless Steel Super Large Wind Commercial Air Curtain at high air velocity
Specifications:
Model | Size (mm) | Volt./ Freq. | Motor power(W) | Air volume (m3/h) | Air speed (m/s) | Noise (dB) | N.W (kg) |
FM-1609S | 900x260x310 | 220v~ 50Hz | 350 | 2900 | 16.5 | 57 | 26.5 |
FM-1612S | 1200x260x310 | 500 | 3890 | 58 | 31.5 | ||
FM-1615S | 1500x260x310 | 750 | 4950 | 59 | 39.5 | ||
FM-2009S | 900x338x366 | 380v~ 50Hz | 720 | 4700 | 22 | 72 | 29 |
FM-2012S | 1200x338x366 | 1050 | 7350 | 74 | 35 |
Feature
1. Heavy duty type industrial air curtain.
2. Powder coated steel cover or optional with stainless steel cover.
3. Installation height above 4.5-6m.
4. With optimized high speed motor, it meets high requirements and particular places.
