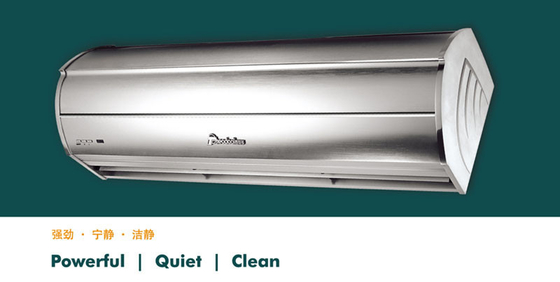

Centrifugal Type Airflow Commercial Door Air Curtain with CE Single Cooling
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Fashion Wind Wire-drawing Air Curtain | Application: | For Door, Entryway |
|---|---|---|---|
| Supplied: | 120v- 50/60Hz Or 220v-50/60Hz | Type: | Single Cooling, Has At Least 2 Motors |
| Length: | 90cm, 120cm, 150cm, 180cm | Color: | Silver |
| Air Speed: | 13-16m/s, 16-20m/s | Standard: | CE, UL, SASO |
| High Light: | garage door air curtain,36 inch air curtain |
||
Centrifugal Type Airflow Commercial Door Air Curtain with CE Single Cooling
Specifications:
|
Model |
Size (mm) |
Volt./ Freq. |
Input power(W) |
Air flow (m3/h) |
Air speed (m/s) |
Noise (dB) |
N.W (kg) |
|||
|
Hi |
Lo |
Hi |
Lo |
Hi |
Lo |
|||||
|
FM-3509B-L/Y |
900x215x230 |
220v/50Hz |
160 |
130 |
750 |
600 |
13-16 |
50 |
47 |
10 |
|
FM-3510B-L/Y |
1000x215x230 |
230 |
200 |
1100 |
900 |
52 |
49 |
13 |
||
|
FM-3512B-L/Y |
1200x215x230 |
250 |
220 |
1200 |
1000 |
52 |
49 |
13.5 |
||
|
FM-3515B-L/Y |
1500x215x230 |
290 |
260 |
1500 |
1200 |
53 |
50 |
15.5 |
||
|
FM-3518B-L/Y |
1800x215x230 |
380 |
350 |
1900 |
1500 |
55 |
52 |
20 |
||
|
FM-4009B-L/Y |
900x215x230 |
220v/50Hz |
470 |
440 |
2520 |
2100 |
16-20 |
58 |
56 |
27 |
|
FM-4010B-L/Y |
1000x215x230 |
300 |
270 |
1400 |
1000 |
57 |
54 |
13 |
||
|
FM-4012B-L/Y |
1200x215x230 |
320 |
290 |
1550 |
1100 |
57 |
54 |
13.5 |
||
|
FM-4015B-L/Y |
1500x215x230 |
400 |
370 |
1900 |
1500 |
58 |
55 |
15.5 |
||
|
FM-4018B-L/Y |
1800x215x230 |
500 |
470 |
2300 |
1900 |
61 |
58 |
20 |
||
Feature:
Fashion design with aluminum body, won’t be rusty and discoloration;
The body is without visible screw, elegant appearance;
Adopting high-performance motor, safe and reliable; Centrifugal turbine creates higher air velocity;
Adopting updated remote control with high and low speeds operation;
Suitable for installation in luxury hotel, supermarket chains, large stadiums and airport terminals and otherentrances of high-grade places etc;
Installation height: 3-4m
Fashion air curtain with CE, ROHS and UL approved:
1) Remote control
2) Two speeds
3) Aluminum cover
4) Centrifugal type airflow
5) Adopting optimized electrical machinery, it operates reliably and runs safely.
