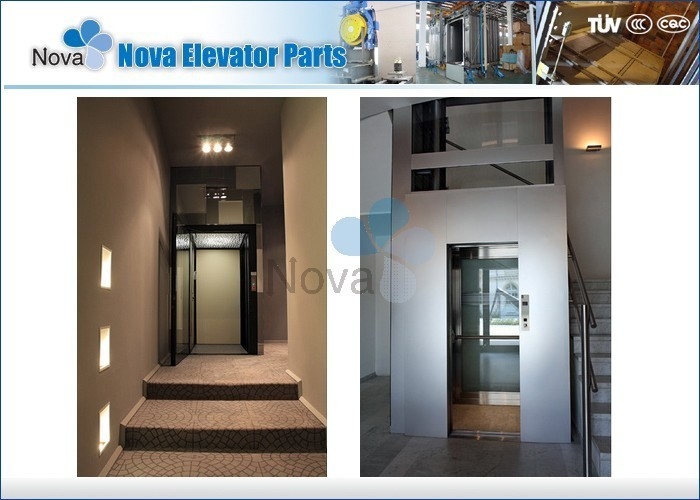

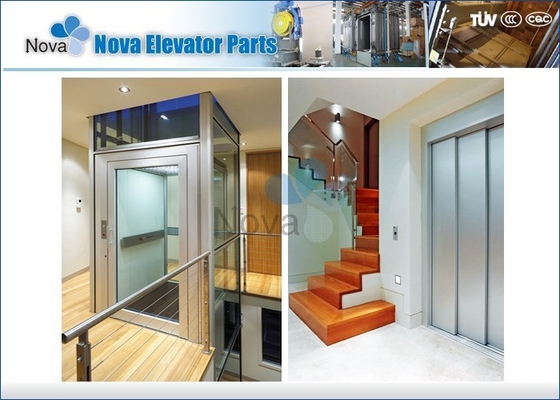

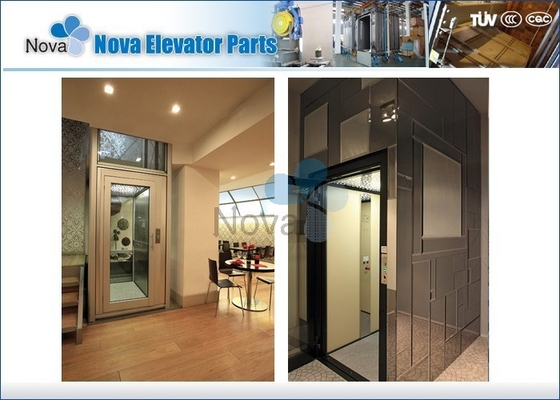

Luxury Home Elevator , Small Residential Lift , Villa Elevator

NO.

Function Name

Descriptionof functions

1

Maintenance
operation

Elevator access to the overhaul state, the system automatically canceled and the operation of automatic doors. By the upper (lower) line will enable the elevator button to overhaul the speed of movement of the point (down) operation. Release the button to stop the lift immediately.

2

The best curve
generated
automatically

Systems automatically computing the most suitable for the principle of human-machine function curve according to the distance needed to run, and is not subjected to restrictions on short floor and the number of constraints.

3

Fire back to the base station

Receive the fire signal, the elevator will not respond to any calls and inside command. The elevator run the fastest way to the fire station and then open the door and stop.

4

Automatic back
to the base floor

When beyond the setting time and there is no inside-call and outside-call ,elevators automatically return to the base station and wait for Passenger.

5

Shaft parameters
of self-tuning

Before the first run, system must self-learn the well parameters. Including the story on each floor, forced deceleration switch, limit switch position.

6

Staircase lock
function

In automatically run state, after the elevator locked, the system eliminates all calls registered and then return to elevator-locked base station then open the door. After that the elevator stops running, closing the light and fan in car.

7

Full load by pass

Under the condition of run automatically without the driver, when the car with full load the elevator does not respond to outside-calls in passing floor. However, this time outside-calls can still be registered; it will be serviced next run-time.

8

Car location
automatically
correct

When the elevator run to the end station ,the system automatically inspection and rectification of the location information based on the first level forced deceleration switch. At the same time, assisted by a special rate of forced deceleration.

9

Lighting, fan
energy-saving
function

When beyond the setting time and there is no inside-call and outside call the elevator will automatically turn off the light and fan in car.

10

Hall call display by bit

System allows the display of each floor using the 0-9, as well as any letters of permutation and combination of characters for use of the special conditions.

11

Full selective

When the elevator running in automatic or driver state will be responded to inside-call signal meanwhile responded to outside-call button signals, any service floor can call the elevator by register the up and down signal.

12

Car arrival chime

After the elevator arrival at the destination floor in accordance with the requirements of Passenger, the car roof board sent the signal.

13

Overload
protection

When the lift when the load over the rated load; elevator alarm, stop the run.

14

Light curtain
protection

When something block in the middle of the door during the door is closing, the light curtain protection action then the elevator turn to open the door. But the light curtain protection does not work in the fire operation.

15

CPU fault
protection

System has three CPUs to judge state each other, if there is abnormal, the system block all output.
