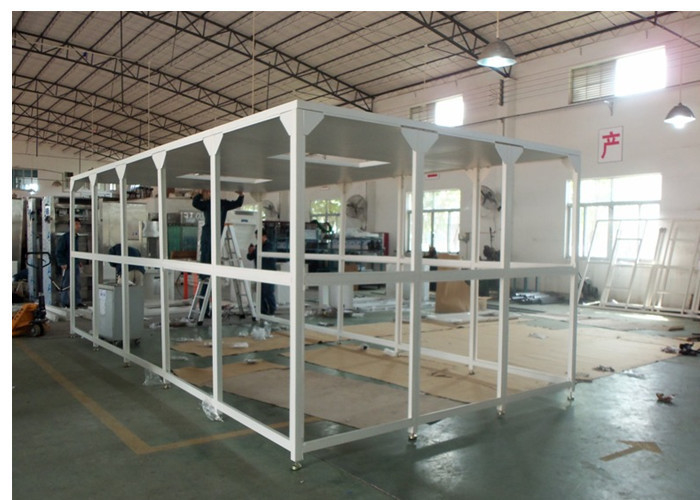

Biological Lab Modular Softwall Clean Room Class 10000 , 99.999%@0.3um
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 3500x4500x2596mm | Purification Rank: | Class 100,000 |
|---|---|---|---|
| Frame Material: | Steel With Power Coated Tube | Door: | PVC Plastic Strip Curtain |
| Wall: | Plexiglass Wall | Fan Filter Unit: | 1175x575x390mm |
| HEPA Air Filter: | 1170x570x69mm | ||
| High Light: | Laminar Flow Booth,portable clean room |
||
Class 10000 Softwall Cleanroom Modular For Pharmaceuticals Industry
Quickly detail
External size : 3500x4500x2596mm
Internal Size: 3400x4400x2205mm
Purification rank: Class10000
HEPA filter efficiency: 99.999%@0.3um
Laminar flow: vertical
Air speed :0.3-0.6m/s
Power: 220V/50HZ
Introduction:
laminar air flow booth modular interior cleanliness can be reached100-100000class level, in order to reduce structural costs of clean shed, YANING changed the traditional concept of clean shed design, take a modular integrated design concept , this structure has a variety of separate clean area, for some areas
of general clean class level clean room that required high clean class level do local creation to reduce costs, thus making the workers and equipment, products effectively isolated, can minimize the pollution, thereby increasing the rate of qualified products.
Applications:
1: Food industry,
2: aerospace,
3:life sciences,
4:biotechnology,
5: medical devices,
6:plastic injection module,
7: electronics assembly
8:hospital pharmacy
Operating features
moveable laminar flow clean booth Modular, easy-to-clean rigid design with minimal joints.
Single, Two-Stage or Three-Stage HEPA/ULPA filtration can be accommodated.
Removable bulkhead panels enable access to fine dust filter for service from inside the booth.
Re-circulatory Airflow or Single Pass Airflow if solvent or hazardous fumes are present in the process (may also require explosion proof electricals).
Cooling Coils can be fitted to offset heat gains in re-circulatory airflow systems.
HEPA/ULPA gel-seal downflow filters are replaceable from within the boot. Gel-seal is more reliable than conventional gasketed seals.
Voltage-compensating blower(s) ensure stable airflow
Magnehelic gauges provide convenient and reliable means for monitoring booth airflow.
Booths ship knocked-down for site assembly.
Compact ceiling and rear plenums maximize usable work area while minimizing floor space.
Comprehensive factory and site acceptance tests include: filter integrity, particle count (air cleanliness), downflow velocity and uniformity, exhaust velocity/volume, containment zone verification, noise level, light intensity, temperature rise and electrical safety
Illustration:
1: The frame is steel cube with milk powder coated.
2: M support leg
3: The wall made from clarity synthetic glass.
4: FFU control box.
5: FFU with HEPA filter and pre-filter
6: Purification lamp
7: PVC strip curtain
8: Purification rank class100-10000 (FS209E Stander)
Technical Parameter:
|
MODEL |
KEL-LFB2500 |
|
Ex size (mm) |
2500X2500X2596mm |
|
In size (mm) |
2400x2400x2205mm |
|
Purification rank |
Class10000(FS209E USA) |
|
HEPA filter |
Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS) |
|
Pre-filter |
Efficiency : 85% @ 5um |
|
Control system |
PC control system / promised speed by control box |
|
Pressure Gauge |
American Dywer pressure |
|
Noise |
<50-55 dB (test point distance is 1m) |
|
Air velocity |
0.2-0.5m/s Adjustable (test point distance is 30cm) |
|
Frame material |
stainless steel/steel with power coated/Cast aluminum profile |
|
Wall frame |
Tempered glass / PVC anti-static curtain (option) |
|
Fan |
EBM Fan /Taiwan fan/ Domestic fan (option) |
|
Power suppler |
AC110/220v 50HZ/60HZ |
Customer’s design is available.
Why you choose K-LING Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team
Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
