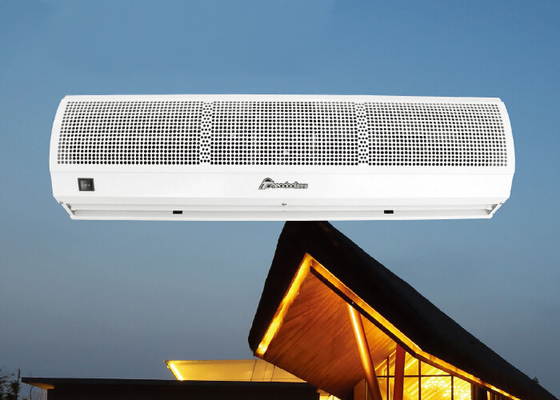

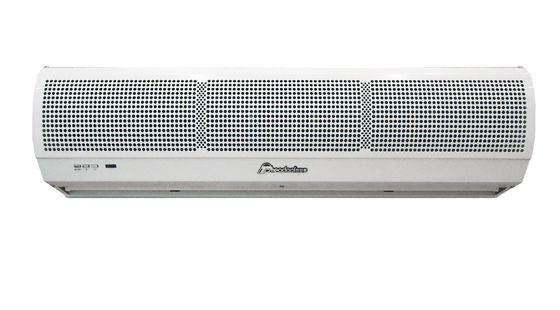

Low Noise Compact Air Curtain 40 Inch , Door Air Cutter With Touch Switch
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Titan 4 Series Air Door | Application: | For Door |
|---|---|---|---|
| Supplied: | 120v- 50/60Hz Or 220v-50/60Hz | Type: | Single Cool |
| Length: | 36inch, 40inch, 48inch, 60inch, 72inch | Color: | Silver |
| Air Speed: | 9-11m/s | Standard: | CCC, CE |
| High Light: | door air cutter,air curtain blower |
||
Titan 4 Series Air door
Specifications:
|
Model |
Size (mm) |
Volt./ Freq. |
Motor power(W) |
Air volume (m3/h) |
Air speed (m/s) |
Noise (dB) |
N.W (kg) |
|||
|
Hi |
Lo |
Hi |
Lo |
Hi |
Lo |
|||||
|
FM-1209SA4 |
900x190x210 |
220v~ 50Hz |
160 |
110 |
1400 |
1100 |
9-11 |
57 |
55 |
10 |
|
FM-1210SA4 |
1000x190x210 |
180 |
130 |
1600 |
1300 |
58 |
56 |
10.5 |
||
|
FM-1212SA4 |
1200x190x210 |
200 |
150 |
1900 |
1600 |
58 |
56 |
12 |
||
|
FM-1215SA4 |
1500x190x210 |
230 |
180 |
2500 |
2000 |
59 |
57 |
13.5 |
||
|
FM-1218SA4 |
1800x190x210 |
300 |
250 |
3200 |
2600 |
60 |
58 |
15 |
||
|
FM-1220SA4 |
1800x190x210 |
350 |
300 |
3600 |
290 |
61 |
59 |
17 |
||
Feature
1. The compact air curtain adopts metal cover is designed with advanced fire resistance. In addition it has easy installation and simple maintenance.
2. The optimized fan wheel provides stable & even air flow. It has large air volume and low noise performance.
3. The reliable designed motor, with overheating protector and has safety operation of 5000 hours continuously without defect.
4. Adopting remote control or touch switch, it’s able to adjust high and low air velocity.
5. Suitable for application in cafeteria, bakery, waiting room, restaurants, retail shop, department store, sports center and so on.
