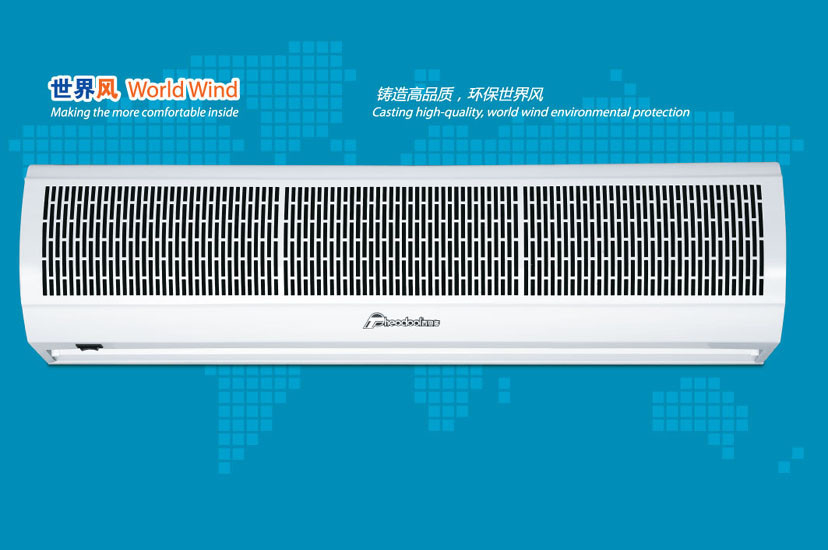

Fire Resistance Electric Air Curtain For Restaurants / Freezer Air Curtains Door

Large Image : Fire Resistance Electric Air Curtain For Restaurants / Freezer Air Curtains Door Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Theodoor
Certification:	ISO 9001, ISO14001, CCC, CE
Model Number:	FM-ST/Y

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	negotiation
Packaging Details:	Corrugated carton
Delivery Time:	25 working days
Payment Terms:	T/T, L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Product Name:	World Wind Series Air Curtain	Application:	For Door
Supplied:	120v- 50/60Hz Or 220v-50/60Hz	Type:	Single Cool
Length:	36inch, 40inch, 48inch, 60inch, 72inch, 96inch 90cm, 100cm, 120cm, 150cm, 180cm, 200cm	Color:	White
Air Speed:	9-11m/s	Standard:	CCC, CE
High Light:	door air cutter , air curtain blower

World Wind Series Air Curtain

Specifications:

Model	Size (mm)	Volt./ Freq.	Motor power(W)		Air volume (m3/h)		Air speed (m/s)	Noise (dB)		N.W (kg)
Model	Size (mm)	Volt./ Freq.	Hi	Lo	Hi	Lo	Air speed (m/s)	Hi	Lo	N.W (kg)
FM-1209ST/Y	900x190x210	220v~ 50Hz	160	110	1400	1100	9-11	57	55	10
FM-1210ST/Y	1000x190x210		180	130	1600	1300		58	56	10.5
FM-1212ST/Y	1200x190x210		200	150	1900	1600		58	56	12
FM-1215ST/Y	1500x190x210		230	180	2500	2000		59	57	13.5
FM-1218ST/Y	1800x190x210		300	250	3200	2600		60	58	15
FM-1220ST/Y	1800x190x210		350	300	3600	290		61	59	17

World wind series air curtain feature:

1. The compact air curtain adopts metal cover is designed with advanced fire resistance. In addition it has easy installation and simple maintenance.

2. The optimized fan wheel provides stable & even air flow. It has large air volume and low noise performance.

3. The reliable designed motor, with overheating protector and has safety operation of 5000 hours continuously without defect.

4. Adopting remote control or touch switch, it’s able to adjust high and low air velocity.

5. Suitable for application in cafeteria, bakery, waiting room, restaurants, retail shop, department store, sports center and so on.

a) Switch /Remote control
b) Two speeds
c) Metal cover
d) Cross flow type airflow
e) Applications: 2.3-3m doors
f) Available size: 0.9m, 1m, 1.2m, 1.5m, 1.8m, 2.0m
