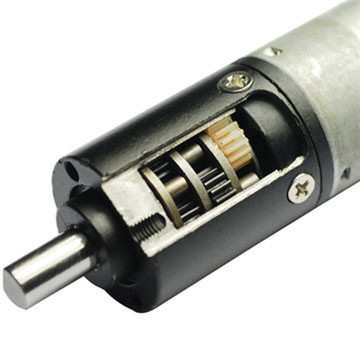

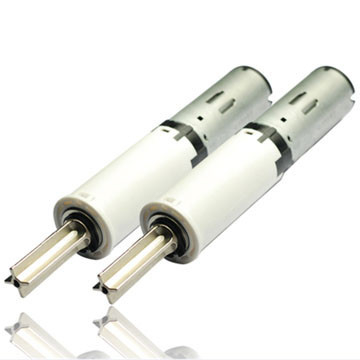

22mm Tubular Motors for Electric-drive Curtain , Low Noise High Orecision


22mm Tubular Motors for  Electric-drive Curtain , Low Noise High Orecision​


Specifications:

• Specifications:
  • Rated voltage: 24.0V DC
  • Rotation direction: CW/CCW
  • Reduction ratio: 23/1
  • Operating temperature range: -10-50°C
  • Storage temperature range: -20-60°C
  • Overall length: 61.5mm
  • Gearbox length: 23.2mm
  • Max rated torque of gearbox: 2000gf.cm
  • Max instant torque of gearbox: 6000gf.cm
  • Output power: 0.5-6W
  • Output shaft: Metal
• No load:
  • Speed: 328rpm
  • Current: 110mA max
• On load:
  • Rated speed: 291rpm
  • Rated current: 295mA max
  • Rated torque: 736 gf.cm

Application

Quality Control


* Life Test : being continuously working for required period of time, then stop, then repeat

* Noise Test : being put at the distance of 1m (or other requirements) to the test equipments to test the noise

* Water-proof Test : being put 10mm under the water working for 2 weeks and 100m under the water working for 12 hours

* Salt Spray Test : salt spray can test the products’ resistance to corrosion
* Impact Test : two objects striking each other at high relative speeds
* Storage Test : being stored under normal temperature for 1 or 2 years to test stability
* Environmental Related Substance


Main Products:

1) Precise component and assembly of plastic and metal powder injection;
2) Precise motor gear box reducer: diameter 4 to 40mm,
Output speed: 5 to 2000rpm,
 Reduction ratio: 2 to 2000,
Output torque: 1.0gf-cm to 50Kgf-cm;
3) Customized worm and gear transmission machinery;
4) Precise electromechanical motion module.


2D Drawing
