Aluminum Expanded Metal Mesh For air filter/oil filter/mesh fram

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Aluminum Expanded Metal Mesh For air filter/oil filter/mesh fram Get Best Price

Product Details:
Place of Origin: China
Brand Name: FORWARD FILTER & FITTING
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 100m
Price: Depends on specific data and order quantity
Packaging Details: wood pallet, carton and wooden box
Delivery Time: 25-35 days
Supply Ability: 50000m/month.
Contact Now
Detailed Product Description
Materials: Stainless Steel Plate, Mild Steel Plate, Aluminum Plate, Etc. Name: Aluminum Expanded Metal Mesh For Air Filter/oil Filter/mesh Fram
Loading Capacity: According To The Size Of Wire Mesh Certificate: ISO
Hole Shape: Diamond, Square, Round, Triangle, Scales Form, Etc. Category: Standard/raised, Flattened
Finish: PVC Dipping (powder Coating, PVC Coated), Hot-dip Galvanized, Sub-electro-galvanized, Anodic Oxidation (aluminum Plate), Antirust Paint, Etc.
High Light:

expanding metal mesh

,

expanded steel mesh

Aluminum  Expanded Metal Mesh For air filter/oil filter/mesh fram



We can provide samples for free!

Description:

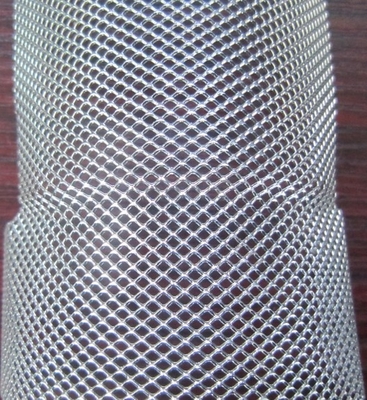

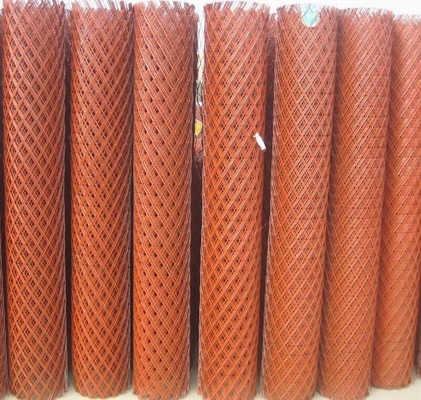

Aluminum Expanded Metal Mesh For air filter/oil filter/mesh fram 0Aluminum Expanded Metal Mesh For air filter/oil filter/mesh fram 1

Standard: ASTM

Materials: stainless steel plate, mild steel plate, aluminum plate, etc.

Hole Shape: diamond, square, round, triangle, scales form, etc.

Category: standard/raised, flattened

Finish: PVC dipping (powder coating, PVC coated), hot-dip galvanized, sub-electro-galvanized, anodic oxidation (aluminum plate), antirust paint, etc.

Characteristics: expanded by metal plate, high utilization rate of steel, strong and durable, anti-skidding, good

ventilation performance, beautiful appearance, simple maintenance.



Application:



(1) Micro hole expanded metal mesh is mainly used in high temperature, super clean with high speed flow

place, such as subway, tunnel, swimming pool, hospital, foodstuffs factory, electronics factory, chemical

 industry, transportation, sound-absorbing wall, etc.

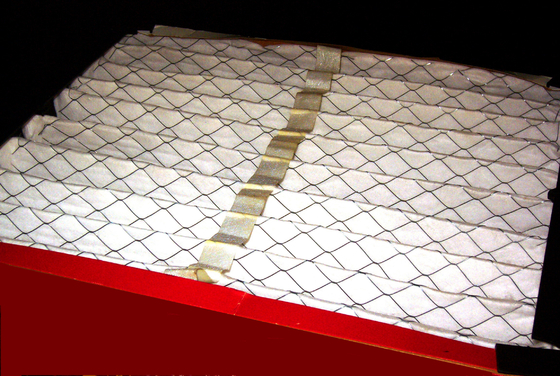

(2) Used in various precision air filter, oil filter, stationery(e.g. File holder, pen container), wall protection, mesh

 door, mesh frame, etc.

(3) Can be used in indoor and outdoor chairs of park, supermarket, hospital, bank, etc.

(4) Used as ceiling and wall decoration: it has a special science function, which is sound absorption! It often

 appears in a large sitting room, office building and mall to be ceiling and wall decoration.

(5) Used as Curtain Wall to make the large building more grand and beautiful, and protect the building as well.

In addition, it is also the role of air filter and weaken the strong sunshine.



Basic Specification:



Regular Expanded Metals, Carbon steel - A569/569M

Style

SWO

LWO

SWD

LWD

Strand Width

Strand Thickness

Overall Thickness

3/16"#24

0.166

0.437

0.2

0.5

0.05

0.024

0.086

3/16"#22

0.166

0.437

0.2

0.5

0.05

0.03

0.088

3/16"#20

0.166

0.437

0.2

0.5

0.05

0.036

0.09

1/4"#20

0.172

0.719

0.255

1

0.073

0.036

0.125

1/4"#18

0.172

0.719

0.255

1

0.073

0.048

0.125

1/2"#20

0.438

0.938

0.5

1.2

0.072

0.036

0.124

1/2"#18

0.438

0.938

0.5

1.2

0.088

0.048

0.155

1/2"#16

0.375

0.938

0.5

1.2

0.086

0.06

0.157

1/2#13

0.313

0.938

0.5

1.2

0.096

0.092

0.182

3/4"#16

0.813

1.75

0.923

2

0.099

0.06

0.186

3/4"#13

0.75

1.688

0.923

2

0.096

0.092

0.195

3/4"#10

0.75

1.625

0.923

2

0.144

0.092

0.282

3/4"#9

0.688

1.563

0.923

2

0.148

0.134

0.3

1"#16

1

2.063

1.09

2.4

0.096

0.06

0.182

1.5"#18

1.313

2.625

1.33

3

0.067

0.048

0.14

1.5"#16

1.25

2.625

1.33

3

0.107

0.06

0.211

1.5"#13

1.188

2.5

1.33

3

0.104

0.092

0.215

1.5"#10

1.188

2.5

1.33

3

0.137

0.092

0.289

1.5"#9

1.125

2.375

1.33

3

0.142

0.134

0.295

1.5"#6

1

2.313

1.33

3

0.201

0.198

0.425

2"#10

1.625

3.438

1.85

4

0.164

0.092

0.312

2"#9

1.563

3.375

1.85

4

0.149

0.134

0.325

















Flattened Expanded Metals, Carbon steel - A569/569M

Style

SWO

LWO

SWD

LWD

Strand Width

Strand Thickness

Overall Thickness

3/16"#24

0.085

0.459

0.2

0.52

0.057

0.019

0.019

3/16"#22

0.085

0.459

0.2

0.52

0.057

0.024

0.024

3/16"#20

0.085

0.459

0.2

0.52

0.057

0.029

0.029

1/4"#20

0.094

0.688

0.255

1.03

0.086

0.03

0.03

1/4"#18

0.094

0.688

0.255

1.03

0.086

0.04

0.04

1/2"#20

0.375

1

0.5

1.26

0.07

0.029

0.029

1/2"#18

0.281

1

0.5

1.26

0.109

0.039

0.039

1/2"#16

0.25

1

0.5

1.26

0.103

0.05

0.05

1/2#13

0.25

1

0.5

1.26

0.122

0.07

0.07

3/4"#16

0.75

1.75

0.923

2.1

0.115

0.048

0.048

3/4"#14

0.688

1.813

0.923

2.12

0.119

0.061

0.061

3/4"#13

0.688

1.782

0.923

2.1

0.119

0.07

0.07

3/4"#9

0.563

1.688

0.923

2.12

0.164

0.12

0.12

1"#16

0.875

2.25

1.09

2.56

0.115

0.048

0.048

1.5"#16

1.063

2.75

1.33

3.2

0.123

0.048

0.048

1.5"#14

1.063

2.75

1.33

3.2

0.138

0.06

0.06

1.5"#13

1.063

2.75

1.33

3.2

0.138

0.07

0.07

1.5"#9

1

2.563

1.33

3.2

0.175

0.11

0.11

















Carbon steel Heavy Duty Expanded Metals

Style

SWO

LWO

SWD

LWD

Strand Width

Strand Thickness

Overall Thickness

21b.

1

3.6

1.333

5.33

0.235

0.135

0.46

31b.

0.938

3.438

1.333

5.33

0.261

0.183

0.5

3.141b.

1.625

4.875

2

6

0.308

0.25

0.562

4lb.

0.938

3.438

1.333

5.33

0.297

0.215

0.625

1.271b.

1

2.875

1.412

4

0.297

0.25

0.625

51b.

0.813

3.375

1.333

5.33

0.327

0.25

0.625

6.251b.

0.813

3.375

1.412

5.33

0.347

0.312

0.75

71b.

0.813

3.375

1.412

5.33

0.338

0.312

0.75

















Regular Expanded Metals, AISI304

Style

SWO

LWO

SWD

LWD

Strand Width

Strand Thickness

Overall Thickness

1/2"#18

0.438

0.938

0.5

1.2

0.087

0.05

0.164

1/2"#16

0.438

0.938

0.5

1.2

0.087

0.062

0.164

1/2#13

0.313

0.875

0.5

1.2

0.12

0.093

0.225

3/4#18

0.813

1.75

0.923

2

0.106

0.5

0.2

3/4"#16

0.813

1.75

0.923

2

0.106

0.062

0.2

3/4"#13

0.75

1.688

0.923

2

0.108

0.093

0.2

3/4"#9

0.688

1.563

0.923

2

0.161

0.14

0.3

1.5"#16

1.25

2.75

1.333

3

0.115

0.062

0.22

1.5"#13

1.25

2.525

1.333

3

0.116

0.093

0.22

1.5"#9

1.125

2.5

1.333

3

0.155

0.14

0.28

















Flattened Expanded Metals, AISI304

Style

SWO

LWO

SWD

LWD

Strand Width

Strand Thickness

Overall Thickness

1/2"#18

0.313

1

0.5

1.26

0.093

0.04

0.04

1/2"#16

0.313

1

0.5

1.26

0.093

0.05

0.05

1/2#13

0.25

1

0.5

1.26

0.132

0.08

0.08

3/4#18

0.75

1.813

0.923

2.1

0.118

0.04

0.04

3/4"#16

0.75

1.813

0.923

2.1

0.118

0.05

0.05

3/4"#13

0.625

1.75

0.923

2.1

0.12

0.07

0.07

3/4"#9

0.563

1.688

0.923

2.1

0.16

0.119

0.119

1.5"#16

1.063

2.75

1.333

3.15

0.124

0.05

0.5

1.5"#13

1

2.625

1.333

3.15

0.124

0.079

0.079

1.5"#9

0.938

2.625

1.333

3.15

0.165

0.119

0.119

















Regular Aluminum Expanded Metals,3003H14

Style

SWO

LWO

SWD

LWD

Strand Width

Strand Thickness

Overall Thickness

3/16"#032

0.166

0.437

0.2

0.5

0.05

0.024

0.086

1/2"#051

0.375

0.938

0.5

1.2

0.094

0.051

0.158

1/2"#081

0.375

0.938

0.5

1.2

0.096

0.081

0.186

3/4"#051

0.813

1.75

0.923

2

0.109

0.051

0.2

3/4"#081

0.75

1.688

0.923

2

0.166

0.081

0.3

3/4"#125

0.688

1.688

0.923

2

0.17

0.125

0.305

1.5"#081

1.188

2.5

1.333

3

0.128

0.081

0.24

1.5"#125

1.188

2.5

1.333

3

1.163

0.125

0.3

21b.

1

3.6

1.333

5.33

0.261

0.235

0.46



















Note: The above specifications are all in stock and special

specification can be customized!
