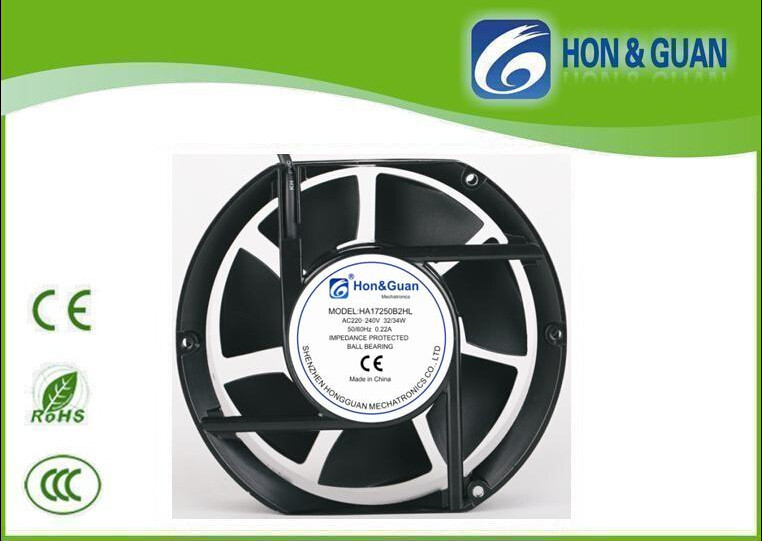

190CFM 2500RPM 6" 17251 Compact Axial Fan 172X150x50 with Capacitor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Frame: | Aluminum Alloy | Power: | 38W |
|---|---|---|---|
| Speed: | 3000RPM | Max Air Flow: | 190CFM |
| Max Static Pressure: | 14mmH2O | Noise: | 39dBA |
| Weight: | 880g | Wire Type: | Wire Or Terminal |
| High Light: | axial ventilation fan,vane axial fan |
||
190CFM 2500RPM 6" 17251 Compact Axial Fan 172X150x50 with Capacitor
1. Product Desription
Product size:172*150*51mm
Frame: Aluminum Alloy
Impeller: PBT (UL: 94V-0)
Motor protection: Impedance protect.
Wire type: -AT Terminal / -AW Wires
Working temperature:
Ball bearing: -30 ℃~75℃
Sleeve bearing: -10℃~70℃
Net Weight: 880g

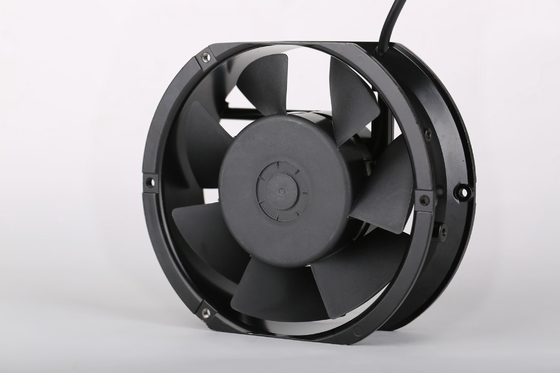

190CFM 2500RPM 172X150*50 6" 17251 Axial Flow Fan with Capacitor
2. Features
- Compact
- Maintenance-fee
- Easy to mount
- Low noise level
- Little vibration
- Reliable movement

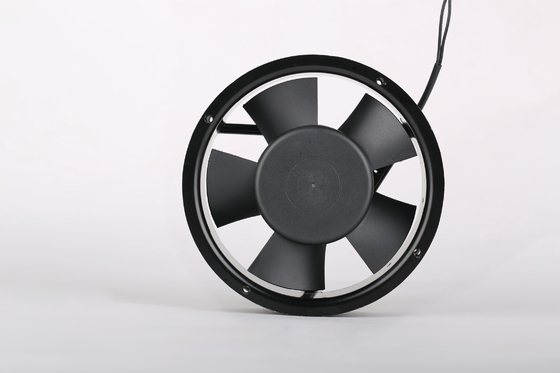

190CFM 2500RPM 172X150*50 6" 17251 Axial Flow Fan with Capacitor
3. Application
172*150*150 axial flow fan is mainly used for ground control, equipment, electronic equipment, medical equipment, computers, power supplies, welding machines, packaging, printing equipment, satellite communications, CNC, machinery and office automation products such as ventilation and cooling purposes.

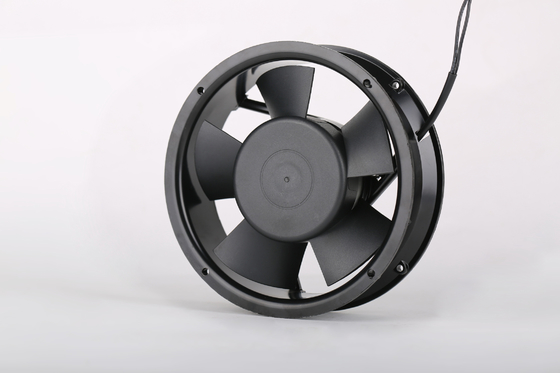

190CFM 2500RPM 172X150*50 6" 17251 Axial Flow Fan with Capacitor
4. Performance sheet
| Specification: AC Axial Fan 172mm*150mm*50mm | ||||||||||
| Model | Bearing | Voltage | Frequency | Current | Power | Speed | Air Flow | Static Pressure | Noise | |
| V | Hz | A | W | RPM | m3/min | CFM | mmH2O | dB(A) | ||
| H17250B1H | ball | 110 | 60/50 |
0.456 /0.5 |
33/34 |
2400 /2500 |
4.81 /5.37 |
170/190 | 15.80/16.0 | 42/45 |
| H17250S1H | sleeve | |||||||||
| H17250B2H | ball | 220 | 50/60 |
0.265 /0.253 |
37/36 |
2500 /2400 |
5.37 /4.81 |
190/170 | 16.0/15.80 | 45/42 |
| H17250S2H | sleeve | |||||||||
| H17250B3H | ball | 380 | 50/60 | 0.14/0.13 | 35/34 |
2500 /2400 |
5.37 /4.81 |
190/170 | 16.0/15.80 | 45/42 |
| H17250S3H | sleeve | |||||||||
i) If you want another rpm or voltage or special functionm please contact with us directly.
ii) Products have a detail in the approval sheet.
iii) Specifications are subject to change without notice.
190CFM 2500RPM 172X150*50 6" 17251 Axial Flow Fan with Capacitor
5. Product Safety Test
① Drop Test
In minimal packing, fan withstands each one drop of three faces from 30cm distance height onto 10mm thickness of wooden board
② Locked rotor protection
Impedence of motor winding protects fan from fire in 72hours of locked rotor condition at the rated voltage
③ Dielectric Strength
Fan can withstand 2500v 2sec 1mA between housing and two leads wire
190CFM 2500RPM 172X150*50 6" 17251 Axial Flow Fan with Capacitor
6. We also produce other sizes like 8025 8038 9225 9238 11025 12025 12038 13538 15050 17238 17150 18060 20060 22060 25489
190CFM 2500RPM 172X150*50 6" 17251 Axial Flow Fan with Capacitor
7. Our exbitions(ARBS and AHR show)
