24000BTU 60Hz Energy Efficient Central Air Conditioners
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Energy-saving | Application: | Home, House, Shopping Mall |
|---|---|---|---|
| Capacity: | 24000BTU | Function: | Cooling, Heating |
| Power: | 2TON | Power Source: | Electric |
| Power Supply: | 60Hz | Product Name: | Energy Efficient Central Air Conditioners |
| Highlight: | home central air conditioner,Energy-saving Air Conditioner |
||

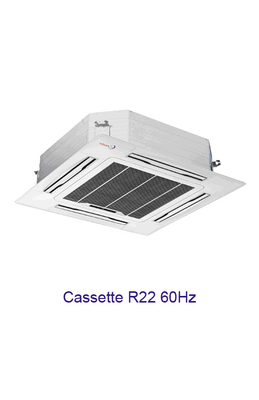

24000BTU 60Hz Ceiling Cassette Energy Efficient Central Air Conditioners for Shopping Mall
Description
- CASSETTE AIRE ACONDICIONADO TIPO CASSETTE
- For south america market and central America market
- New Design panel ,top discharge or side discharge
- Power supply: 220V,60Hz
- Self-diagnosis and auto-protection function
- Air flows in four directions by adjusting air duct louvers
- .High cooling
- Low temperature start, electricity heating
- LED motion display, easy to check its run
- 5 years warranty for compressor, and 3 years for complete unti
- Offer 1% free spare part of total amount
Quick Detail:
- Cooling/Heating: cooling only; cooling & heating
- Type: cassette
- Power Source: electric
- Capacity:24000BTU
- Voltage: 220V60HZ
- Power: 2TON
- Certificate: Sencamer,INMETXO
8. Application: House or residence , public place including super market , shopping mall
Specifications:
|
Model |
YCC-18CR-N |
||
|
Code |
220042400710 |
||
|
Power supply |
V-ph-Hz |
220~230-1-60 |
|
|
Cooling |
Capacity |
Btu/h |
18000 |
|
Input |
W |
1860 |
|
|
EER |
W/W |
2.85 |
|
|
Heating |
Capacity |
Btu/h |
/ |
|
Input |
W |
/ |
|
|
COP |
W/W |
/ |
|
|
Indoor fan motor |
Model |
|
YDK60-6E |
|
Qty |
|
1 |
|
|
Input |
w |
82/67/53 |
|
|
Capacitor |
uF |
3uF/450V |
|
|
Speed(hi/mi/lo) |
r/min |
550/480/410 |
|
|
Indoor coil |
a.Number of rows |
|
2 |
|
b.Tube pitch(a)x row pitch(b) |
mm |
21x13.37 |
|
|
c.Fin spacing |
mm |
1.5 |
|
|
d.Fin type (code) |
|
Hydrophilic aluminium |
|
|
e.Tube outside dia.and type |
mm |
Φ7,Inner grooved tube |
|
|
f.Coil length x height x width |
mm |
1990x168x26.74 |
|
|
g.Number of circuits |
|
8 |
|
|
Indoor air flow (Hi/Med/Lo) |
m3/h |
800/700/600 |
|
|
Sound level (sound pressure) |
dB(A) |
43/41/39 |
|
|
Throttle type |
|
Throttle valve |
|
|
Indoor unit |
Dimension (W x Dx H)(body) |
mm |
840x840x230 |
|
Packing (W x Dx H)(body) |
mm |
900x900x250 |
|
|
Dimension (W x Dx H)(panel) |
mm |
950x950x55 |
|
|
Packing (W x Dx H)(panel) |
mm |
1035x1035x90 |
|
|
Net/Gross weight(body) |
kg |
26/29 |
|
|
Net/Gross weight |
kg |
5/8 |
|
|
Design pressure |
MPa |
2.6/1.0 |
|
|
Drainage water pipe dia. |
mm |
ODΦ32 |
|
|
Refrigerant piping |
Liquid side/ Gas side |
mm |
Φ6.35/Φ12.7(1/4"/1/2") |
|
Controller |
|
RG51Q1/BGE |
|
|
Operation temperature |
Cooling |
℃ |
17~32 |
|
Heating |
℃ |
/ |
|
|
|
|
|
|

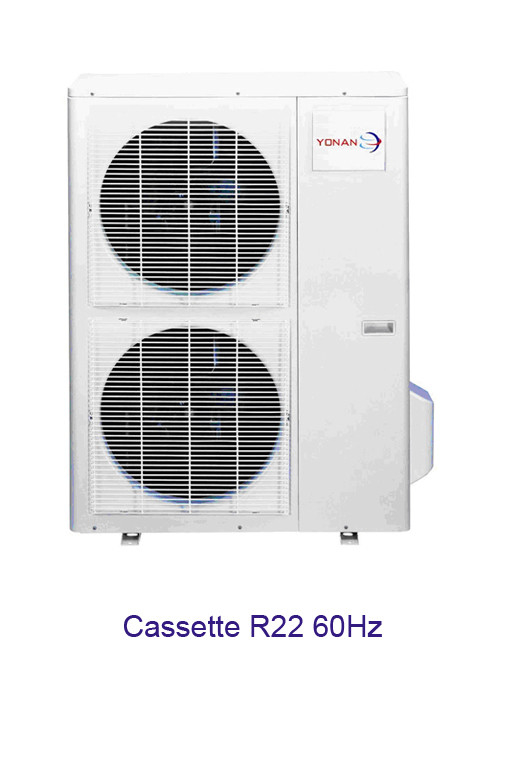

CONDENSING UNIT
|
Model |
YOU-24C-N |
||
|
Code |
220075301250 |
||
|
Power supply |
V-ph-Hz |
220~230-1-60 |
|
|
Max. input consumption |
W |
3750 |
|
|
Max. input current |
A |
22.4 |
|
|
Compressor |
Model |
|
PH361X3CS-3KWU |
|
Type |
|
Rotary |
|
|
Brand |
|
GMCC |
|
|
Outdoor fan motor |
Model |
|
YDK53-6KB(B) |
|
Qty |
|
1 |
|
|
Input |
W |
148 |
|
|
Capacitor |
μF |
3uF/450V |
|
|
Speed(Hi/Med/Lo) |
r/min |
950 |
|
|
Outdoor coil |
Number of rows |
|
2 |
|
Tube pitch(a)* row pitch(b) |
mm |
19.5x11.6 |
|
|
Fin spacing |
mm |
1.2 |
|
|
Fin type |
|
Unhydrophilic aluminium |
|
|
Tube outside dia.and type |
mm |
Ф5, inner grooved tube |
|
|
Coil length * height * width |
mm |
782x663x23.2 |
|
|
Number of circuits |
|
4 |
|
|
Outdoor air flow |
m3/h |
2700 |
|
|
Outdoor noise level (sound pressure) |
dB(A) |
56 |
|
|
Throttle type |
|
/ |
|
|
Outdoor unit |
Dimension(WxDxH) |
mm |
845x335x695 |
|
Packing(WxDxH) |
mm |
965x395x755 |
|
|
Net/Gross weight |
kg |
47.5/51 |
|
|
Refrigerant type/Quantity |
Type |
|
R22 |
|
Charged volume |
kg |
1.2 |
|
|
Design pressure |
MPa |
2.6/1.0 |
|
|
Refrigerant piping |
Liquid side/ Gas side |
mm(inch) |
Φ9.52/Φ15.9(3/8"/5/8") |
|
Max. pipe length |
m |
30 |
|
|
Max. difference in level |
m |
10 |
|
|
Ambient temperature |
Cooling |
℃ |
18~43 |
|
Heating |
℃ |
/ |
|
Applications:
House or residence , public place including super market , shopping mall ....
Competitive Advantage:
energy saving, high efficiency,
low ambient Self-diagnosis and auto-protection function
