Ceiling Floor 2TON Energy Efficient Central Air Conditioners

Large Image : Ceiling Floor 2TON Energy Efficient Central Air Conditioners Get Best Price

Product Details:

Certification:	Sencamer，INMETXO
Model Number:	YUB-24CR

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	STANDARD EXPORT CARTON
Delivery Time:	30 days
Payment Terms:	T/T ; L/C ; OA ; CASH
Supply Ability:	4 MILLION SETS / YEAR

Contact Now

Detailed Product Description

Features:	Energy-saving	Application:	House, Shopping Mall
Capacity:	24000 BTU	Function:	Cooling, Heating
Power:	2TON	Power Source:	Electric
Power Supply:	230V, 60Hz	Product Name:	Energy Efficient Central Air Conditioners
Type:	Ceiling, Floor
Highlight:	heat cool air conditioner , Energy-saving Air Conditioner

Ceiling Floor 2TON Electric Energy Efficient Central Air Conditioners 24000 BTU

Description

Ceiling floor AIRE ACONDICIONADO PISO CIELO
For south america market and central America market
New Design panel
Power supply: 230V,60Hz
Self-diagnosis and auto-protection function
Air flows in four directions by adjusting air duct louvers
.High cooling
Low temperature start, electricity heating
LED motion display, easy to check its run
5 years warranty for compressor, and 3 years for complete unti
Offer 1% free spare part of total amount

Quick Detail:

Cooling/Heating: cooling only; cooling & heating
Type: Ceiling floor
Power Source: electric
Capacity:24000BTU
Voltage: 220V60HZ
Power: 2TON
Certificate: Sencamer,INMETXO
Application: House or residence , public place including super market , shopping mall

Specifications:

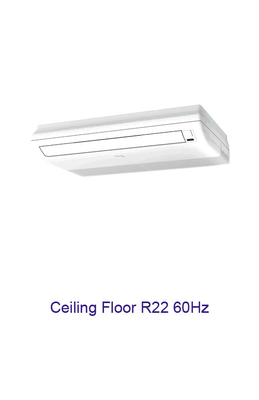

INDOOR UNIT

Model			YUB1-24CR-N
Code			220044200420
Power supply		V-ph-Hz	220~230-1-60
Cooling	Capacity	Btu/h	24000
	Input	W	2500
	EER	W/W	2.81
Heating	Capacity	Btu/h	/
	Input	W	/
	COP	W/W	/
Indoor fan motor	Model		YSK55-4L-2
	Qty		1
	Input	W	163/131/100
	Capacitor	uF	2.5UF/450V
	Speed(Hi/Med/Lo)	r/min	1470/1210/995
Indoor coil	Number of rows		3
	Tube pitch(a)x row pitch(b)	mm	25.4×22
	Fin spacing	mm	1.5
	Fin type		Hydrophilic aluminium
	Tube outside dia.and type	mm	Φ9.52,Inner grooved tube
	Coil length x height x width	mm	804×254×66
	Number of circuits		3
Indoor air flow(Hi/Med/Lo)		m³/h	1140/850/710
Indoor noise level (sound pressure)(Hi/Med/Lo)		dB(A)	53/48/42
Throttle type			Throttle valve
Indoor unit	Dimension (WxDxH)	mm	990×660×203
	Packing (WxDxH)	mm	1090x745x297
	Net/Gross weight	kg	25/31
Design pressure		MPa	2.6/1.0
Drainage water pipe diameter		mm	ODΦ25
Refrigerant piping	Liquid side/Gas side	mm	Φ9.52Φ15.9(3/8"/5/8")
Controller			BGE
Operation temperature	Cooling	℃	17~32
Operation temperature	Heating	℃	/

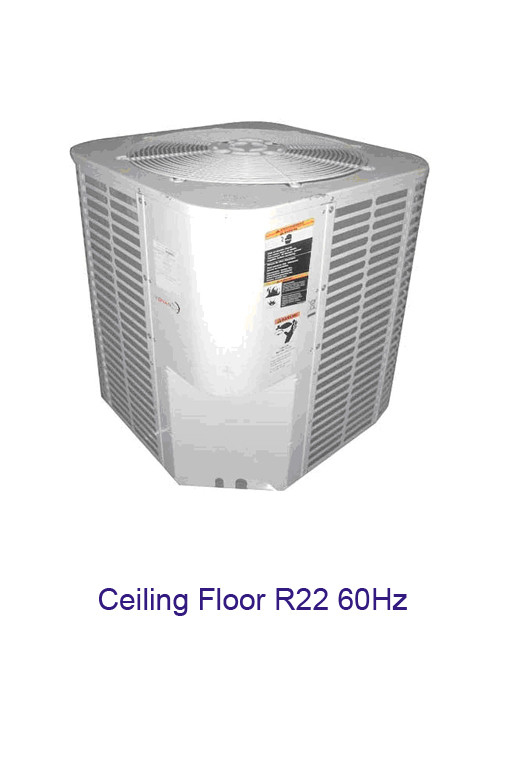

CONDENSING UNIT

Model			YOU-24C-N
Code			220075301250
Power supply		V-ph-Hz	220~230-1-60
Max. input consumption		W	3750
Max. input current		A	22.4
Compressor	Model		PH361X3CS-3KWU
	Type		Rotary
	Brand		GMCC
Outdoor fan motor	Model		YDK53-6KB(B)
	Qty		1
	Input	W	148
	Capacitor	μF	3uF/450V
	Speed(Hi/Med/Lo)	r/min	950
Outdoor coil	Number of rows		2
	Tube pitch(a)* row pitch(b)	mm	19.5x11.6
	Fin spacing	mm	1.2
	Fin type		Unhydrophilic aluminium
	Tube outside dia.and type	mm	Ф5, inner grooved tube
	Coil length * height * width	mm	782x663x23.2
	Number of circuits		4
Outdoor air flow		m³/h	2700
Outdoor noise level (sound pressure)		dB(A)	56
Throttle type			/
Outdoor unit	Dimension(WxDxH)	mm	845x335x695
	Packing(WxDxH)	mm	965x395x755
	Net/Gross weight	kg	47.5/51
Refrigerant type/Quantity	Type		R22
Refrigerant type/Quantity	Charged volume	kg	1.2
Design pressure		MPa	2.6/1.0
Refrigerant piping	Liquid side/ Gas side	mm(inch)	Φ9.52/Φ15.9(3/8"/5/8")
	Max. pipe length	m	30
	Max. difference in level	m	10
Ambient temperature	Cooling	℃	18~43
Ambient temperature	Heating	℃	/
